Quick Details
-
Voltage:
-
220V,380V, 3-phase 4-wires 380V 50Hz
-
Dimension(L*W*H):
-
2500X 1100 X 900mm
-
Power (kW):
-
32
-
Weight (KG):
-
1500 KG
-
max output:
-
1.6-5.0kg
-
Weight:
-
1500kg
-
Power(W):
-
32kw
-
Certification:
-
ce
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Marketing Type:
-
Hot Product 2019
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
CNMC
-
Machine Type:
-
hydraulic
-
Voltage:
-
220V,380V, 3-phase 4-wires 380V 50Hz
-
Dimension(L*W*H):
-
2500X 1100 X 900mm
-
Power (kW):
-
32
-
Weight (KG):
-
1500 KG
-
max output:
-
1.6-5.0kg
-
Weight:
-
1500kg
-
Power(W):
-
32kw
-
Certification:
-
ce
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Marketing Type:
-
Hot Product 2019
Equipment applications:

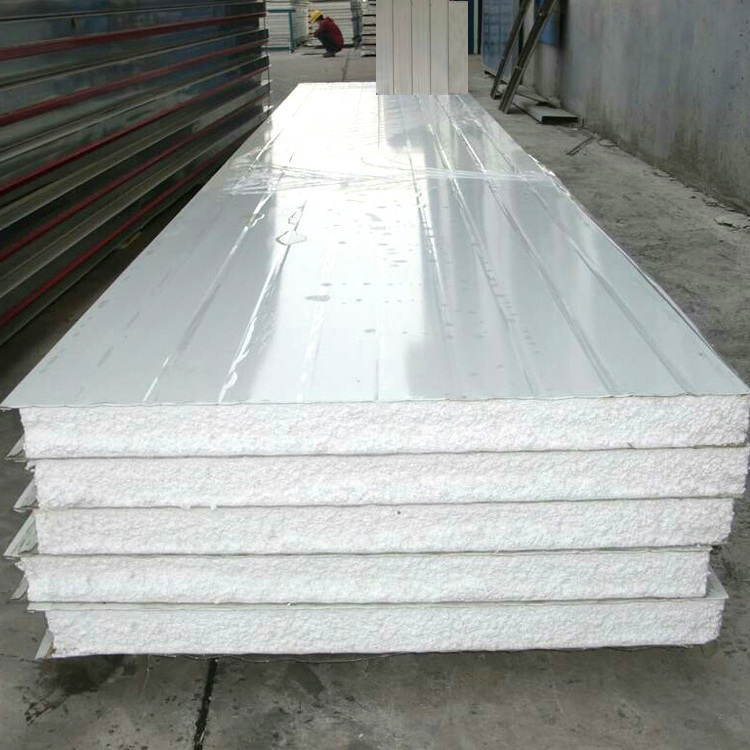

Rigid foam: PU decorative molding, float trowel, cold storage panel, sandwich panel, water heater, pipeline, plate, mine prouduct, imitation wood, insulation solar, cold storage board insulation pipe, freezers.
1- The working pressure of the high pressure oil pump is 15-20 Mpa, and the injection pressure of
the raw material is 8-15 Mpa.
2- raw material temperature control mode: digital display automatic constant temperature control
the ratio of raw materials can be adjusted: 1:1 - 1:3
3- pouring time: 00.0-99.9 seconds
4- the maximum flow rate of raw material injection time: the use does not generally exceed 80% of
the maximum flow.
5- The connecting pipe between the drum and the material pump is not allowed to exceed 1.5
meters.
| Model | Power | Weight | Tank Capacity | Rotated Speed | Injection Precision | Max Injection | Ratio |
| CNMC-100C | 32KW | 1500KG | 180L/Tank | 1460r/min | 0.01s | 1.6kg/s | 1:1-1:3 |
| CNMC-200C | 47.5KW | 2500KG | 280L/Tank | 1460r/min | 0.01s | 3.6kg/s | 1:1-1:3 |
|
CNMC -300C |
78.5KW | 3000KG | 600L/Tank | 980r/min | 0.01s | 5.0kg/s | 1:1-1:3 |
