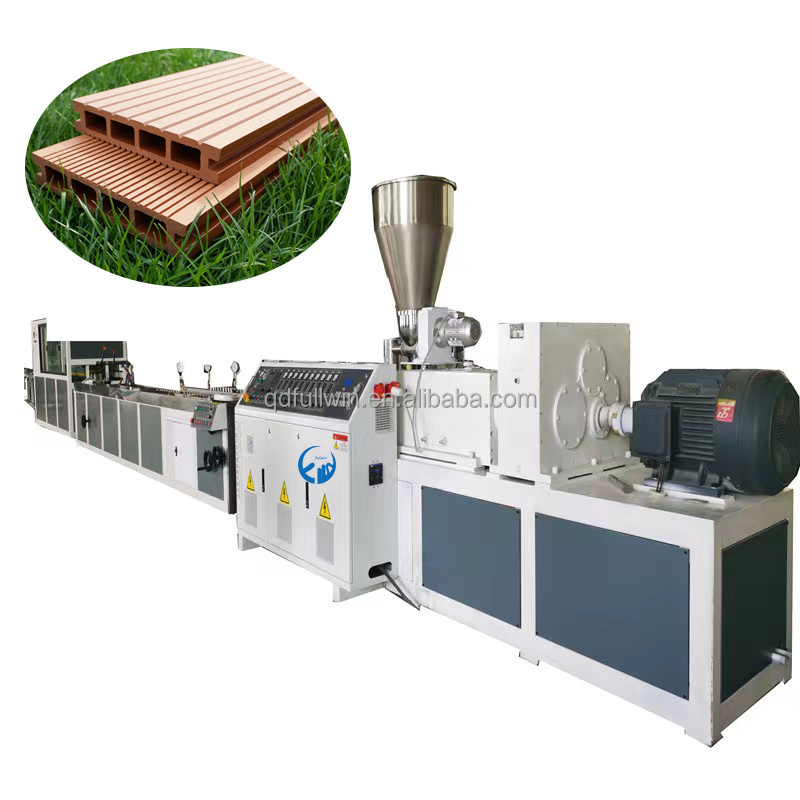

Wood Plastic Compos Making Machine WPC Decking Extrusion Machine PE PVC WPC Floor Board Profile Extrusion Line Manufacturer
Wood Plastic Compos Making Machine WPC Decking Extrusion Machine PE PVC WPC Floor Board Profile Extrusion Line Manufacturer
Wood Plastic Compos Making Machine WPC Decking Extrusion Machine PE PVC WPC Floor Board Profile Extrusion Line Manufacturer
Wood Plastic Compos Making Machine WPC Decking Extrusion Machine PE PVC WPC Floor Board Profile Extrusion Line Manufacturer
Wood Plastic Compos Making Machine WPC Decking Extrusion Machine PE PVC WPC Floor Board Profile Extrusion Line Manufacturer
Wood Plastic Compos Making Machine WPC Decking Extrusion Machine PE PVC WPC Floor Board Profile Extrusion Line Manufacturer
Wood Plastic Compos Making Machine WPC Decking Extrusion Machine PE PVC WPC Floor Board Profile Extrusion Line Manufacturer
Wood Plastic Compos Making Machine WPC Decking Extrusion Machine PE PVC WPC Floor Board Profile Extrusion Line Manufacturer

Wood Plastic Compos Making Machine WPC Decking Extrusion Machine PE PVC WPC Floor Board Profile Extrusion Line Manufacturer

FOB Reference Price: Get Latest Price
≥1 Sets
US $33000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Brand Name:
Fullwin
Voltage:
220V/380V
Dimension(L*W*H):
25m*4m*2m
Power (kW):
75
Weight:
2000 KG
Name:
Extrusion Machine
Raw material:
PVC Granules Powder
Usage:
Wide Usage
Product Type:
Extrusion Production
Processing Type:
Exturding Machine
Product name:
Profile Making Machine
Product:
plastic profile
Type:
Extruder
Keywords:
Profile Extrusion Machine
Original:
Qingdao ,China

Quick Details

Screw Design:
Double-screw
Screw L/D Ratio:
132:1
Screw Speed (rpm):
90 rpm
Place of Origin:
Shandong, China
Brand Name:
Fullwin
Voltage:
220V/380V
Dimension(L*W*H):
25m*4m*2m
Power (kW):
75
Weight:
2000 KG
Name:
Extrusion Machine
Raw material:
PVC Granules Powder
Usage:
Wide Usage
Product Type:
Extrusion Production
Processing Type:
Exturding Machine
Product name:
Profile Making Machine
Product:
plastic profile
Type:
Extruder
Keywords:
Profile Extrusion Machine
Original:
Qingdao ,China

Recycled PE WOOD as raw material wood plastic composite wpc profile extrusion line
Wpc Decking Production Line Wood Plastic Compound Machine Wpc Decking Production Line Wpc Making Machine Outdoor
Co-Extrusion Wood Plastic Decking Extrusion Machine 3D Embossed Wood Plastic Composite Flooring Extrusion Line Manufacturer
Company video
Specification
NO.
Description
Qty
1
65/132 Double Screw Extruder with auto feeder
1 set
2
Die head and Extrusion mould
1 set
3
Vacuum calibrating platform
1 set
4
Standard Traction Machine
1 set
5
Standard Cutting Machine
1 set
6
Automatic Unloading Platform
1 set


65/132 Double Screw Extruder
Propeller specially designed for PVC / WPC with tapered mesh and counter-rotating, rotation speed 1 - 32 rpm
Screw:
Material : 38CrMoAIA
Surface treatment : Nitriding, polished
Barrel:
Barrel screw materials: 38CrMoALA nitrding treating
Cooling type:Fan cooling
Max output :150kg/h
AC motor :37kw
Automatic feeding machine:screw feeder

Die head and Extrusion mould

Heating ring:Adopt Energy-saving heating ring,can help customer save electricity cost
Extrusion mould: According customer drawings and samples to design the Extrusion mould.


Vacuum calibrating platform
Length: 6000mm
Width: 1100mm
Horizontal adjustment length: 80mm
Vertical adjustment range:800mm
Vacuum forming mould: connect water for cooling the product.make the product more beautiful and sizing more better quality.
Standard Traction and cutting machine
Clamping : Pneumatic clamping
Clamping length available :2400mm
Clamping width: 240mm
Clamping speed:1-4.6 m/min
Cutting type: Pneumatic cutting



Automatic unloading platform
Materials:Stainless steel
Length: 6000mm
Stacker lift way :Electrical
The unloading platform elevating positioning method: Infrared recognition
Final Product
About US
Qingdao Fullwin Plastic Machinery Co.,LTD
FULLWIN PLASTIC MACHINERY CO., LTD is located in the beautiful Qingdao city, focus on plastic extrusion manufacturers. Our company has gathered first-class scientific research talents from all over the country. At present, has successfully developed a number of plastic machinery production lines and supporting equipment, including single-wall corrugated pipe production line, double-wall corrugated pipe production line, PVC, PP water supply pipe production line, profile and sheet production line, etc. Among them, the corrugated production line has obtained a number of invention patents.
After service
-After all machines are delivered to customer’s factory; Buyer is responsible for all preparation work, e.g. electricity supply,
water supply, labors and cranes, etc.
- Fullwin will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer’s factory.
- The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for each engineer.
- If buyer doesn’t request installation and commissioning by Seller’s engineer in 4 months since date of bill of lading, which to be accounted all the machines has been successfully tested by buyer.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Single Wall Corrugated Pipe Machine,Double Wall Corrugated Pipe Machine,PVC/ PP Water Supply Pipe Machine,WPC/PVC Profile and
Sheet Profile Machine,PVC Fiber Reinforced Pipe Machine

3. why should you buy from us not from other suppliers?
1.Advanced production technology with design capability. 2.Reasonable price with good quality and best delivey time 3.Our sales
team will give prompt feedback within 24 hours . 4.Profession after sales service system,our engineer will go to customer factory.

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
