Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Solarvertech
-
Model Number:
-
NP series
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
450x252x101mm
-
Weight:
-
8kg
-
Certificate:
-
CE/ROHS/E8/ETL/ISO9001, CE/ROHS/E8/ETL/ISO9001
-
Display:
-
LED Display Optional
-
Output waveform:
-
Pure Sine Wave Inverter
-
type:
-
Off grid inverter
-
Color:
-
Blue/Golden
-
DC Voltage:
-
12V/24V/48V
-
Warranty:
-
24 Months
-
Package:
-
Paper Skin Carton
-
Efficiency:
-
89~93%
-
Soft Start:
-
3-5 Seconds
Quick Details
-
Output Current:
-
Accroding the load
-
Network:
-
other
-
Customized support:
-
OEM/ODM
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Solarvertech
-
Model Number:
-
NP series
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
450x252x101mm
-
Weight:
-
8kg
-
Certificate:
-
CE/ROHS/E8/ETL/ISO9001, CE/ROHS/E8/ETL/ISO9001
-
Display:
-
LED Display Optional
-
Output waveform:
-
Pure Sine Wave Inverter
-
type:
-
Off grid inverter
-
Color:
-
Blue/Golden
-
DC Voltage:
-
12V/24V/48V
-
Warranty:
-
24 Months
-
Package:
-
Paper Skin Carton
-
Efficiency:
-
89~93%
-
Soft Start:
-
3-5 Seconds

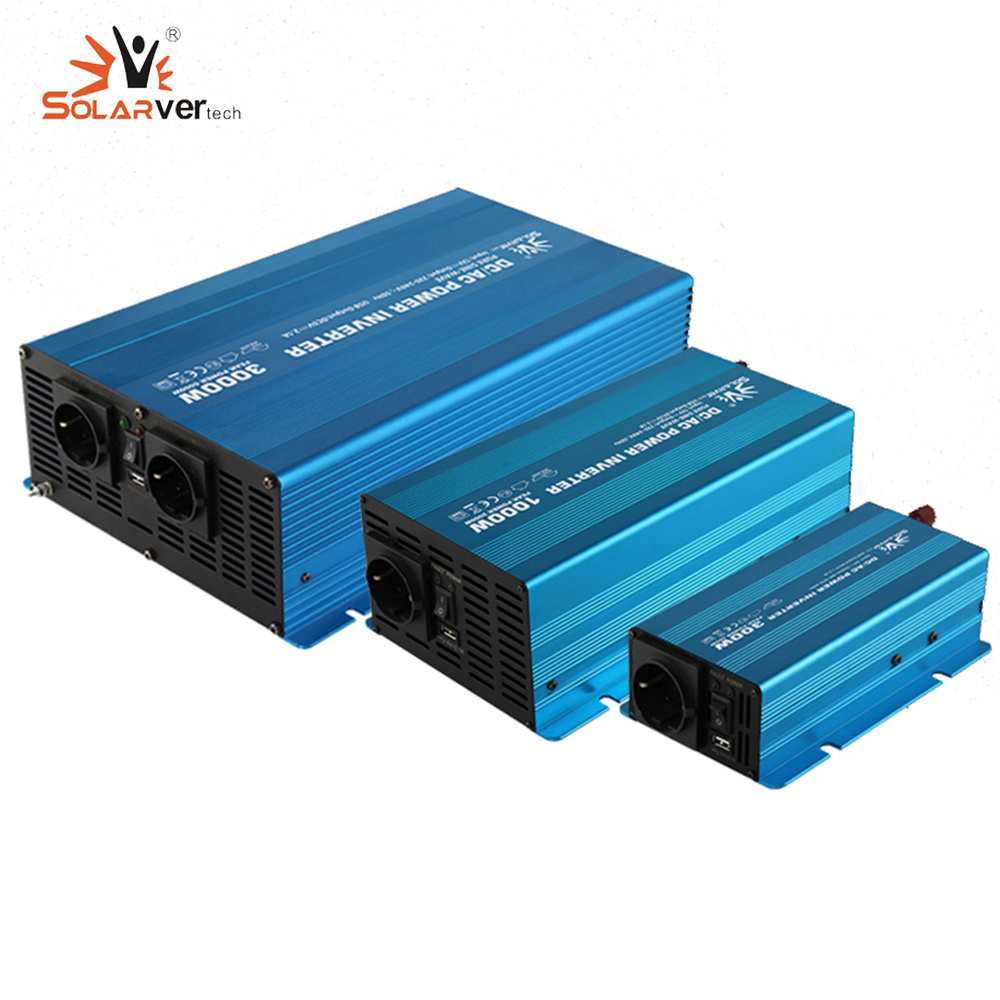

300W 400W 600W 700W 1000W 1200W 1500W 2000W 2500W 3000W 3500W 4000W 12V 24V 48V Dc To Ac 100V 110V 120V 220V 230V 240V Off Grid Pure Sine Wave Power Inverter with LED Display and remot control optional
Products Description
Technical Parameters
|
MODEL
|
|
NP300
|
NP600
|
NP1000
|
NP1500
|
NP2000
|
NP2500
|
NP3000
|
NP4000
|
|||||||
|
Output
|
Ac Voltage
|
100/110/120V/220/230/240VAc
|
|
|
|
|
|
|
|
|||||||
|
|
Rated Power
|
300W
|
600W
|
1000W
|
1500W
|
2000W
|
2500W
|
3000W
|
4000W
|
|||||||
|
|
Surge Power
|
600W 1200W 2000W 3000W 4000W 5000W 6000W 8000W
|
|
|
|
|
|
|
|
|||||||
|
|
lWaveform
|
Pure Sine Wave(THD<3%)
|
|
|
|
|
|
|
|
|||||||
|
|
Frequency
|
50/60Hz 0.05%
|
|
|
|
|
|
|
|
|||||||
|
|
AC Regulation
|
士5% 士10%
|
|
|
|
|
|
|
|
|||||||
|
|
Power Factor Allowed
|
coso-9o°-cose+9o°
|
|
|
|
|
|
|
|
|||||||
|
|

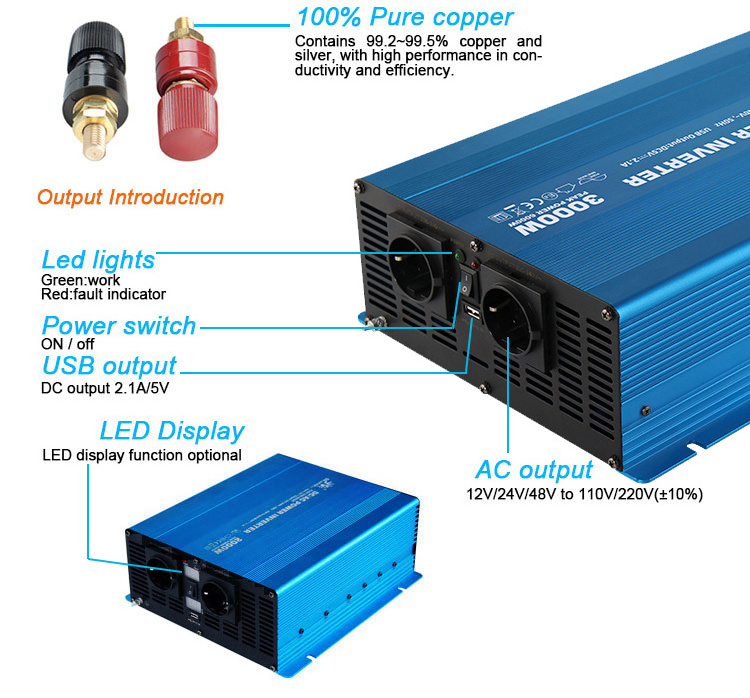

Standard Receptacles
|
uSABritish/Franch/Schuko7UK/Australia/Universal etc. optional
|
|
|
|
|
|
|
|
|||||||
|
|
LED Indicator
|
Green for power on, red for faulty status
|
|
|
|
|
|
|
|
|||||||
|
|
uSB port
|
5V 2.1A
|
|
|
|
|
|
|
|
|||||||
|
|
Efficiency(Typ.)
|
89%~95%
|
|
|
|
|
|
|
|
|||||||
|
|
over Load
|
Shut down output voltage , restart to recover
|
|
|
|
|
|
|
|
|||||||
|
|
over Temperature
|
Shut down output voltage , recover automatically after temperature goes down
|
|
|
|
|
|
|
|
|||||||
|
|
Output Short
|
Shut down output voltage , restart to recover
|
|
|
|
|
|
|
|
|||||||
|
|
Dc input Reverse Polarity
|
By fuse
|
|
|
|
|
|
|
|
|||||||
|
|
Earth Fault
|
Shut off o/p when the load has electrical leakage
|
|
|
|
|
|
|
|
|||||||
|
|
soft Start
|
Yes, 3-5 Seconds
|
|
|
|
|
|
|
|
|||||||
|
Environment
|
Working Temp.
|
o-+50°℃
|
|
|
|
|
|
|
|
|||||||
|
|
Working Humidity
|
20-90%RH non-condensing
|
|
|
|
|
|
|
|
|||||||
|
|
Storage Temp.&Humidity
|
-3o-+70°℃,10-95%RH
|
|
|
|
|
|
|
|
|||||||
|
Others
|
Dimension(LxW×H)
|
210×130×60mm
|
250×168×96mm
|
311×168×96mm
|
325×252×101mm
|
325×252×101mm
|
450×252×101mm
|
450×252×101mm
|
535×252×101mm
|
|||||||
|
|
Packing
|
1.1KG
|
2.1KG
|
2.9KG
|
5.2KG
|
5.5KG
|
7.3KG
|
8KG
|
8.5KG
|
|||||||
|
|

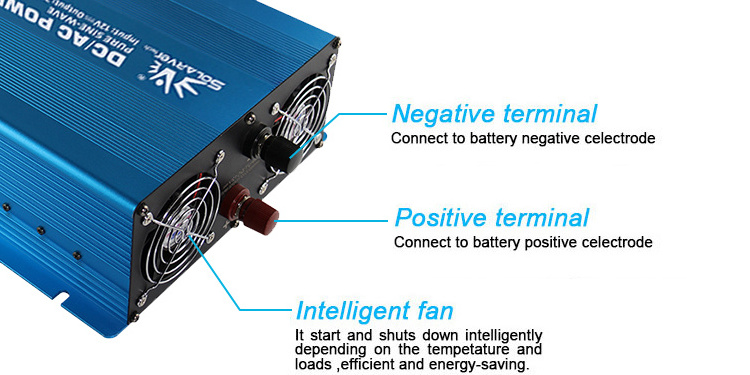

Cooling
|
Load control fan or by thermal control fan
|
|
|
|
|
|
|
|
|||||||
|
|
Application
|
Home and Office appliances,Portable Power Equipment,Vehicle,Yacht and Off-Gid Solar
power systems...etc. |
|
|
|
|
|
|
|
|||||||
