Quick Details
-
Weight:
-
6000 kg, 6T
-
Dimension(L*W*H):
-
4700*2200*3400mm
-
Drilling diameter:
-
90-400mm
-
Drilling depth:
-
1-20m
-
Working wind pressure:
-
0.7-0.6(medium voltage)1.6-2.4(high voltage)
-
Drill pipe diameter:
-
76/89mm
-
Adapt to rock hardness:
-
6-20F
-
Rotate:
-
360
-
Spiral drill pipe diameter:
-
130-400mm
-
One propulsion stroke:
-
3000mm
-
Radiator:
-
enlarged radiator
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jining Hongrun
-
Weight:
-
6000 kg, 6T
-
Dimension(L*W*H):
-
4700*2200*3400mm
-
Drilling diameter:
-
90-400mm
-
Drilling depth:
-
1-20m
-
Working wind pressure:
-
0.7-0.6(medium voltage)1.6-2.4(high voltage)
-
Drill pipe diameter:
-
76/89mm
-
Adapt to rock hardness:
-
6-20F
-
Rotate:
-
360
-
Spiral drill pipe diameter:
-
130-400mm
-
One propulsion stroke:
-
3000mm
-
Radiator:
-
enlarged radiator
Note
The listing price is only a deposit price, excluding shipping costs. Please note that if you would like to know the specific
price, please contact us or send us an inquiry, and we can provide you with a detailed quotation. Thank you
price, please contact us or send us an inquiry, and we can provide you with a detailed quotation. Thank you
Product Description
|
Drilling diameter
|
90-400mm
|
|
Drilling depth
|
1-20m
|
|
Air consumption
|
10-26m³/min
|
|
Working wind pressure
|
0.7-0.6(medium voltage)1.6-2.4(high voltage)
|
|
Drill pipe diameter
|
76/89mm
|
|
Adapt to rock hardness
|
6-20F
|
|
Crawler
|
Steel track
|
|
Rotate
|
360°
|
|
Spiral drill pipe diameter
|
130-400mm
|
|
One propulsion stroke
|
3000mm
|
|
Forward and backward retraction
|
30cm
|
|
Drilling power head
|
Dual hydraulic motor
|
|
Rotation speed
|
0-110r/min
|
|
Engine
|
Yuchai 6-cylinder
|
|
Weight
|
6T
|
|
Walking speed
|
0-5km/h
|
|
Pile driving depth
|
5m
|
|
Hammer head
|
Φ75
|
|
Radiator
|
enlarged radiator
|
|
Pile driving type
|
Round pile/square pile/I-steel pile
|

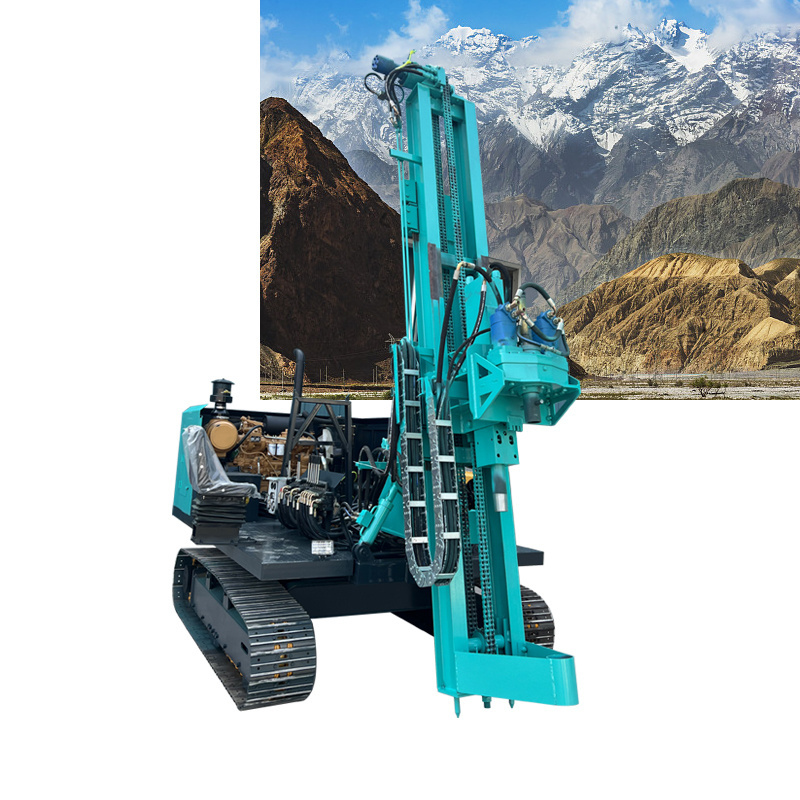

Photovoltaic hammer drill integrated machine
1. Standard Yuchai 6-cylinder
2. All structural components are reinforced and suitable for various working conditions.
3. With telescopic arm and swing function, it can be widely used in various mining and construction applications.
4. Brand new shell design, beautiful and generous, easy to maintain.
We have many models to choose from and support customization
