Quick Details
-
Type:
-
Clamp on Type, Plug in Insertion type, Pipe Inline Type
-
Temperature:
-
-30°C- 160°C
-
Power supply:
-
DC8~36V or AC85~264V or Battery
-
Pipe size:
-
DN15mm-6000mm
-
Medium:
-
water, sea, sewage, acid, alcohol, beer, milk, oil, fuel, diesel...
-
Output:
-
4-20mA, OCT pulse, relay, RS232, RS485 Modbus
-
Data storage:
-
SD card or internal storage
-
Pipe material:
-
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Al, etc.
-
Item:
-
water ultrasonic flowmeter
-
Built in printer:
-
optional
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
KACISE
-
Model Number:
-
KUF2000
-
Type:
-
Clamp on Type, Plug in Insertion type, Pipe Inline Type
-
Temperature:
-
-30°C- 160°C
-
Power supply:
-
DC8~36V or AC85~264V or Battery
-
Pipe size:
-
DN15mm-6000mm
-
Medium:
-
water, sea, sewage, acid, alcohol, beer, milk, oil, fuel, diesel...
-
Output:
-
4-20mA, OCT pulse, relay, RS232, RS485 Modbus
-
Data storage:
-
SD card or internal storage
-
Pipe material:
-
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Al, etc.
-
Item:
-
water ultrasonic flowmeter
-
Built in printer:
-
optional
Introduction
KUF2000 series ultrasonic flow meter usually is used in long-term measurement at field. It has three types of sensor to measure the pipe flow: clamp on type, insertion type and inline pipe type. It can measure heat if contact temperature sensor.

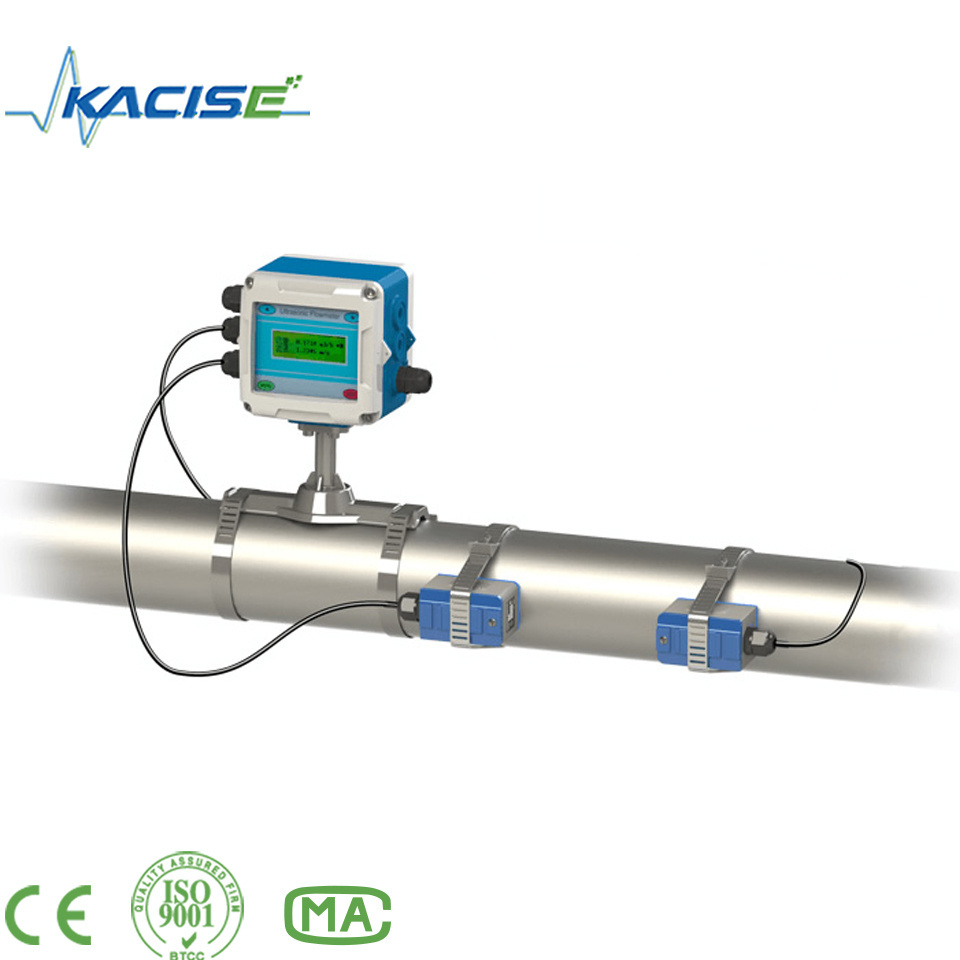

Clamp on type : The sensors clamp on to the outside of pipes and do not come in contact with the internal liquid. And all the models can become energy meters when connecting to temperature sensors. KUF2000 Series Clamp On Ultrasonic Flowmeter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.
Insertion type : Only two installation holes are needed on the pipe, user can install the insertion type sensors. By using the hole making tool, the no stop flow installation can be realized. Sensors contact to the fluid directly, the measurement is stable and reliable.
Inline pipe type : DN15-32 pipes uses π shape inline pipe sensor, DN40 and above uses standard inline pipe sensor. The inline sensors has the advantages of low starting flow rate, high measurement accuracy and no pressure loss.
Parameters
|
Items |
Specifications |
|
|
Main unit |
Accuracy |
Better than ±1% |
|
Repeatability |
Better than 0.2% |
|
|
Principle |
Transit-time measuring principle |
|
|
Measurement Period |
500ms |
|
|
Display |
LCD with backlight,display accumulated flow/heat, instantaneous flow/heat, velocity, time etc. |
|
|
|
Output |
Analogue output: 4-20mA or 0-20mA current output. Impedance 0∼1kW. Accuracy 0.1%. |
|
OCT output: Frequency signal (1~9999HZ) |
||
|
Relay output: over 20 source signal (no signal, reverse flow etc.) |
||
|
RS485 serial port |
||
|
|
Input |
Three analogue input |
|
Three-wire PT100 resistor input (optional) |
||
|
Other functions |
Automatically record the totaliser data of the last 64 days / 64 months / 5 years; The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensation The instrument working status of the last 64 days |
|
|
pipe |
material |
Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed |
|
Size |
15-6000mm |
|
|
Straight pipe section |
In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter) |
|
|
Liquid |
Types |
Water, sea water, industrial sewage, acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid |
|
Temperature |
Standard: -30°c - 90°c ,High-temperature:-30°c- 160°c |
|
|
Turbidity |
Less than 10000ppm, with a little bubble |
|
|
|
Flow Direction |
Bi-directional measuring, net flow/heat measuring |
|
Environment |
Temperature |
Main Unit: -30°c - 80°c |
|
Transducer: -40°C -110°C, Temperature transducer: select on enquiry |
||
|
Humidity |
Main Unit: 85% RH |
|
|
Transducer: water-immersible, water depth less than 3m |
||
|
Cable |
Twisted Pair Line, standard length of 20m, can be extended to 500m (not recommended); Contact the manufacturer for longer cable requirement. RS-485 interface, transmission distance up to 1000m |
|
|
Power Supply |
DC8~36V or AC85~264V or battery |
|
|
Power Consumption |
Less than 1.5W |
|
|
Protocols |
MODBUS, M-BUS, Fuji extended protocol and other factory protocol |
|
Optional Flow Meter Main Unit
1. KUFS2000A split type wall mount ultrasonic flowmeter
2. KUFS2000B split type panel mount ultrasonic flowmeter
3. KUFP2000 portable type flow meter with built-in printer
4. KUFH2000 handheld type liquid ultrasonic flow meter
5. KUFF2000 integrated type fixed on pipe ultrasonic flow meter
6. KUFM2000 ultrasonic flow thermal module/RTU
