Quick Details
-
Fork Length:
-
1200MM
-
Fork Width:
-
920MM
-
Overall Dimensions:
-
2300*2702*2670
-
Weight (KG):
-
2600 kg
-
Product Name:
-
Narrow Aisle Electric Reach Truck
-
Loading Capacity:
-
3000kg/4000kg
-
Load center distance:
-
600mm
-
Lifting height:
-
6000mm
-
Operated Type:
-
Seated
-
Power:
-
AC Motor
-
Controller:
-
Curtis
-
Certificate:
-
ISO 9001;ISO 14001;CE
-
Package:
-
Nude
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Shanghai, China, Shanghai, China
-
Brand Name:
-
SINOLIFT
-
Fork Length:
-
1200MM
-
Fork Width:
-
920MM
-
Overall Dimensions:
-
2300*2702*2670
-
Weight (KG):
-
2600 kg
-
Product Name:
-
Narrow Aisle Electric Reach Truck
-
Loading Capacity:
-
3000kg/4000kg
-
Load center distance:
-
600mm
-
Lifting height:
-
6000mm
-
Operated Type:
-
Seated
-
Power:
-
AC Motor
-
Controller:
-
Curtis
-
Certificate:
-
ISO 9001;ISO 14001;CE
-
Package:
-
Nude

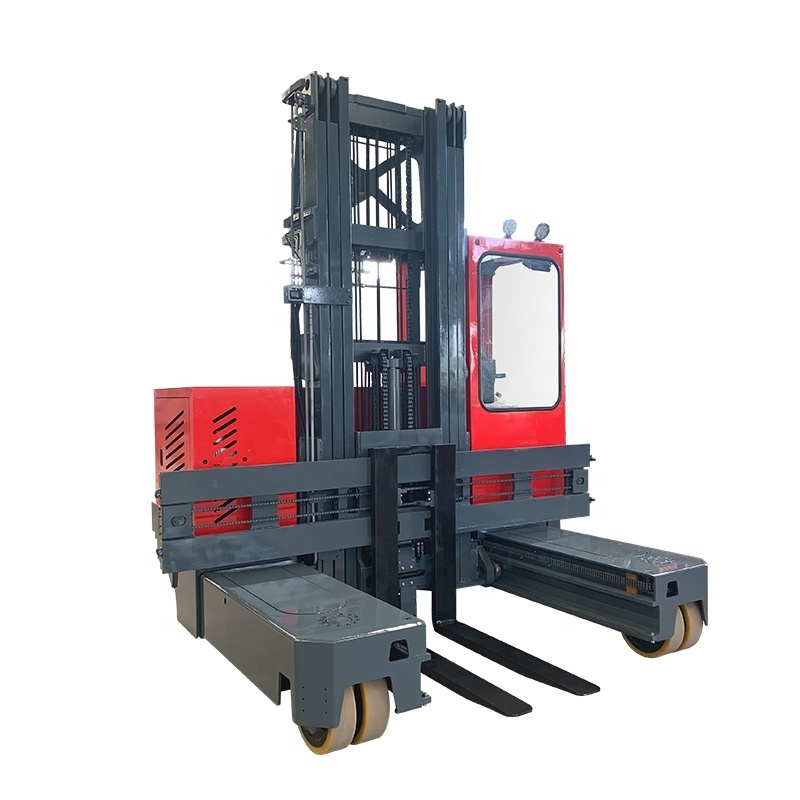

Sinolift TFC Series Narrow Aisle Multi-directional Long Material Handling Electric Reach Truck with CE Certificate
Advantages
Safe
Three braking systems, can provide necessary protection for vehicle and driver no matter in working or not
OPS system, when drive leave seat, the forklift will stop to work
Energy saving
With LED headlight, warning light, low-resistancetyre, automatic steering dormancy, electronic automatic temperature control system and others
Comfortable
Reduce impacting and cargo damage with mast battering technology, suspention seat
Ergonomic design of cab, provide a comfort, safe and high efficient working environment
Stable
Separate vehicle and battery, making gravity is in the center, more stable
Main features
1. Long material handling, with the function of go forward ,backward , left, right and in situ rotation
2. Free maintenance AC drive system, all-wheel braking
3. with positioner to meet different requirements for long material handling.
4. Imported multi-way valve, comfortable, safe and stable.
5. Ergonomic design, large cab space, good vision
6. Hydraulic steering, stable operation.
7. Use OPS suspension seat, comfortable
|
Brand |
|
SINOLIFT |
SINOLIFT |
|
Model |
|
TFC30 |
TFC40 |
|
Power Type |
|
Battery |
Battery |
|
Operation Type |
|
Seated |
Seated |
|
Service weight(incl. battery) |
kg |
5480 |
7750 |
|
Rated Capacity |
Q(kg) |
3000 |
4000 |
|
Load Center |
C(mm) |
600 |
600 |
|
Lifting height |
h3(mm) |
3000 |
3000 |
|
Forks size |
l/e/s(mm) |
1200/150/50 |
1200/150/50 |
|
Front Overhang |
x(mm) |
305 |
318 |
|
Mast ground clearance |
ml(mm) |
150 |
150 |
|
Max. climbing ability |
%(tanθ ) |
8/ 10 |
8/ 10 |
|
Driving speed(load/unload) |
km/h |
7.8/9 |
7.8/9 |
|
Lifting speed(load/unload) |
mm/s |
230/350 |
230/350 |
|
Lowering speed(load/unload) |
mm/s |
170/150 |
170/150 |
Questions about product
Q1: Warranty for the product?
A1: 12 months warranty on major components and 180 days on wearable items .
Q2:
How about the delivery time for the products showed in website?
A1: Normally
15-35 days
after down payment. and most of compact small machines have large stock , can be shipped in around 5 days.
Q3: How many days we need for sending shipping documents?
A1:Usually within
5 days
after vessel shipped out.
Questions about Sinolift
Q1:A re you a manufacturer?
A 1: Yes, we have several factories in China to manufacture Forklift, Hand pallet truck, Table Lift, Drum& Roll Handling Equipment, and In China, we have OKUTSU, LIZHOU,SINOLITE famous brand name to service our Clients. We also have OEM & ODM service experience for worldwide big brand.
Q2:W
hat kind of certificates do you have?
A2: We have ISO9001,14000,18000,CE and GS certificates.
Q3:W hat's Normal Warranty Policy and service program?
A3: SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
