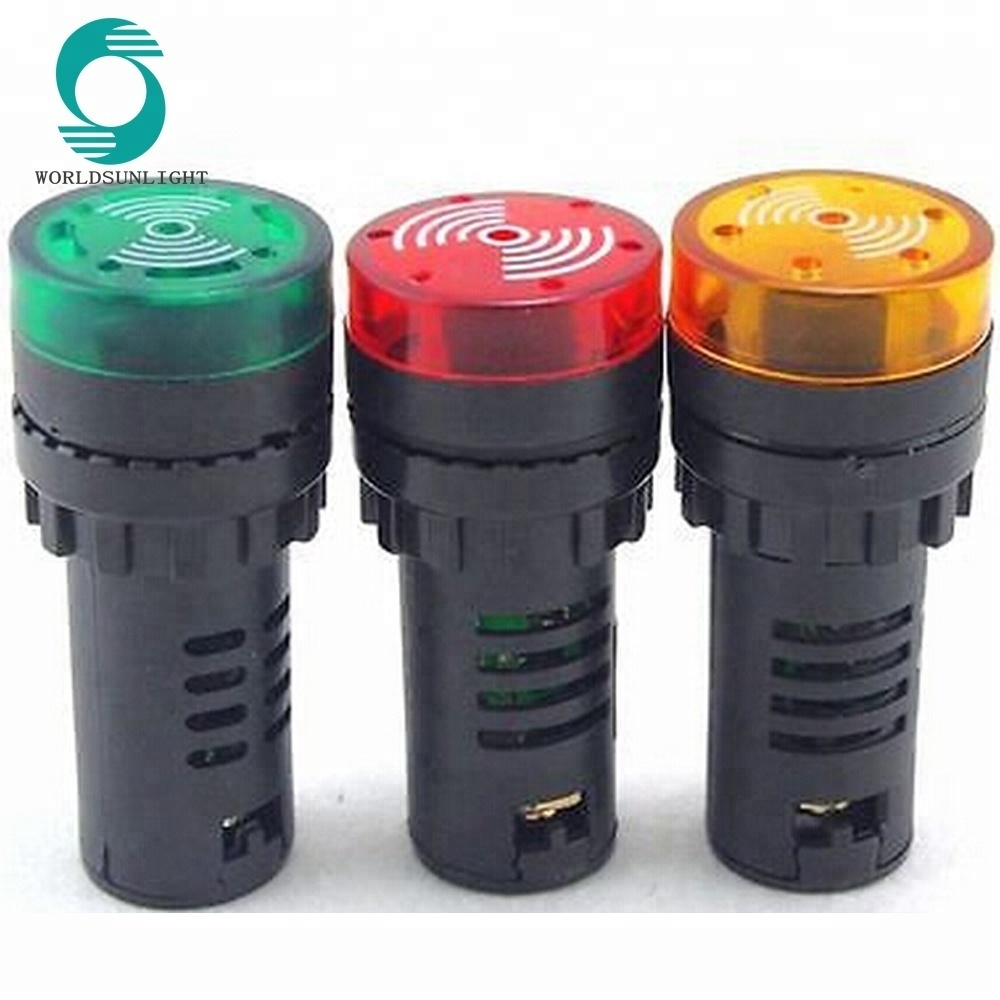

AD16-22SM 22mm 12V 24V 110V 220V colorful indicator flashing led light buzzer,buzzer with light

Super Quality AD16-22SM 22mm 12V 24V 110V 220V colorful indicator flashing led light buzzer,buzzer with light

LED Indicator Lamp Application and Specification:

Application:

1) Only uses LEDs as light source, energy saving, small and compact and extremely durable

2) The lamp cover has good shock resistance, and is made of PC; can be used as indication pilot lights, accident signals or other signals in the circuits of telecommunication and electrical apparatus

3) We can also supply anti-jamming and flash functions.

AD16-22SM 22mm 12V 24V 110V 220V colorful indicator flashing led light buzzer,buzzer with light

Specifications:

1) Colors: red, green, yellow, blue

2) Voltage: AC/DC  3v/6v/12v/24v/36v/48v/110v/220v/380v;AC 110v/220v/380v

3) Basic spec code: 22mm

4) Protection grade: IP65, IP67

5) Meets international IEC947 standard

6) Meets European EN60947 standard

AD16-22SM 22mm 12V 24V 110V 220V colorful indicator flashing led light buzzer,buzzer with light

LED Indicator Lamp Data

Model type:

AD16-22SM 22mm 12V 24V 110V 220V colorful indicator flashing led light buzzer,buzzer with light

Technical Data:

1.Power frequency with stand voltage:2.5KV per minite.(effective AC value)
2.Insulation resistance: ≥2MΩ
3.Allowable voltage fluctuation:±20%
4.Continous operating life: 30000H
5.Brightness: ≥100cd/m2
6.CTI ≥ 100
7.Protective degreee of the head IP65,IP67 is available on request

AD16-22SM 22mm 12V 24V 110V 220V colorful indicator flashing led light buzzer,buzzer with light

Working condition:

1.Operational temperature: -25~+55
2.Relative humidity: ≤98%
3.Normally workable when vibration frequency is 2-80Hz with acceleration of 0.7g.
4.Pollution degree is 3 , inatallation group is      .
5.One with "TH" mark can work in the conditioan of moist heat

AD16-22SM 22mm 12V 24V 110V 220V colorful indicator flashing led light buzzer,buzzer with light

Diagram of interior connection:

AD16-22SM 22mm 12V 24V 110V 220V colorful indicator flashing led light buzzer,buzzer with light

LED Indicator Lamp Display

AD16-22SM 22mm 12V 24V 110V 220V colorful indicator flashing led light buzzer,buzzer with light

Other Models For Your Reference

Our service

1.Reply inquiry in 24 hours.

2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.

3.Answer your question detailed.

4.Solved the problem with you during using our products.

5.Welcome to visit our company and technology communication.

FAQ (Frequently asked questions )

1.Q:What is the Minimum Order Quantity?

A:Moq usually be 100pcs. Small quantity is also available.

2.Q:Is sample available and the sample fee refundable?

A: Yes, sample fee will be return back in your next formal order.

3.Q:The box size can be customized?

A: We suggest to select similar size from our regular sizes, because the new mould fee is rather high. It wouldn't be a economic choice to spend expensive mould fee for just a certain quantity.

4.Q:What is the acceptable payment?

A: T/T in advance, Western Union and Paypal.

5.Q:What is the available shipping way?

A: Small quantity usually choose TNT, DHL, Fedex and EMS etc.

Bulk order would be sea/ air shipping.

If you are interested in our products ,please feel free to contact me .
