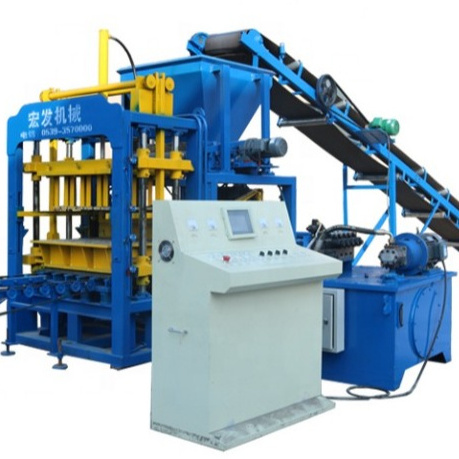

Technical Parameter
|
Detailed Data
|
|
Overall Dimension
|
4000*1500*2660mm
|
|
Rated Pressure
|
16Mpa
|
|
Main Vibration Form
|
Platform Vibration
|
|
Virbration frequency
|
2800-4500r/min
|
|
Pallet Size
|
850*550mm
|
|
Mould cycle
|
15s
|
|
Exciying
|
50kn
|
|
Overall power
|
21.75kw
|
|
Weight
|
4T
|
|
Raw Materials
|
crush stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial
|
|
Item
|
Specification size(mm)
|
Quantity per moulding (pcs/mould)
|
Cycle moulding (s)
|
Output per hour (pcs/shift)
|
|
Porous brick
|
240*100*60
|
10
|
16-20
|
19200
|
|
Solid brick
|
240*115*53
|
21
|
13-15
|
40320
|
|
Hollow brick
|
390*190*190
|
4
|
15-20
|
9600
|
1.Famous band in Block making machine price list
2.Famous trademark of China
3.National key high-tech enterprise
4.National enterprise abiding by contract and keeping good faith
5.Top ten influential brand of China brick and the tile industry
6.First place in productionand sales of brick machine and the tile making machine in China
7After-sale services throughout the country
8.ISO quality system certificate enterprise
9.Supporting institution of Shandong machinery institute
Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
1) Weigh bucket capacity (L): 800
2) Productivity (m3/h): 48
3) Batching precision : ±1%
4) Number of material matching : 2
5) Work loading height (mm) : 2400
6) Feeding belt speed (m/s): 1
7) Power (kw): 12
8) Gross weight (kg): 3500
9) Dimension (mm): 5600*1940*2700
1)Charging capacity (L): 800
2)Discharging capacity (L): 500
3)Production capacity(m3/h): ≥25
4) Max Aggregate Diameter(mm):≤60/80
5)Cycle Time (s):72
6) mixing vane rotation speed: 35r/min
7) mixing vane quantity :2*6
8) Power (KW): 25.1KW
9) Weight(KGS): 4000
10) Dimension ((L×W×H)mm: 4490*3100*5300
1) Shaping time: 15-20 seconds
2) Shaping: vibration+hydraulic
3) Capacity(pcs/day): 19200-21000
4) Power(kw): 21.75KW
5) Pressure: 16Mpa (adjustment)
6) Pallet size: 900*550x25mm
7) weight: 4000KGS
8) Over all dimension(mm)(L*W*H): 3500X1850X2050mm
1)Overall size mm : 2500*1770*2400
2) Stack layer : 4 floors
3) Power(kw): 3
4) Weight: 2500 KGS
According to each customer's demand and budget, we offer you the professional solution, process flow design and production equipment. More importantly, we welcome every customer to visit our factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.
Assist clients to finish the factory planning. Before delivery equipment to customer s, complete debugging and checking. Provide a full instruction manual for the whole system. Provide technical guidance for the installation and use of the unit, including installation advice and electrical connection. Provide unit debugging and training for the operation of the machine on the working site and coordiante the customers with check and acceptance of the unit.
