Quick Details
-
Mold Height(mm):
-
15 - 25 mm
-
Ejector Stroke(mm):
-
75 mm
-
Ejector Force(kN):
-
120 kN
-
Theoretical Shot Volume(cm³):
-
30 cm³
-
Injection Rate (g/s):
-
12 g/s
-
Injection Weight (g):
-
50 g
-
Screw diameter (mm):
-
18 mm
-
Weight (KG):
-
145 kg
-
Place of Origin:
-
Fujian, China
-
Open Stroke(mm):
-
18 mm
-
Brand Name:
-
CRTOP
-
Power (kW):
-
1.7 kW
-
Marketing Type:
-
New Product 2020
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
120mm
-
Distance between Tie Bars(Height)(mm):
-
120mm
-
Plasticizing Capacity(g/s):
-
200-400
-
Mold Height(mm):
-
15 - 25 mm
-
Ejector Stroke(mm):
-
75 mm
-
Ejector Force(kN):
-
120 kN
-
Theoretical Shot Volume(cm³):
-
30 cm³
-
Injection Rate (g/s):
-
12 g/s
-
Injection Weight (g):
-
50 g
-
Screw diameter (mm):
-
18 mm
-
Weight (KG):
-
145 kg
-
Place of Origin:
-
Fujian, China
-
Open Stroke(mm):
-
18 mm
-
Brand Name:
-
CRTOP
-
Power (kW):
-
1.7 kW
-
Marketing Type:
-
New Product 2020
Product Description

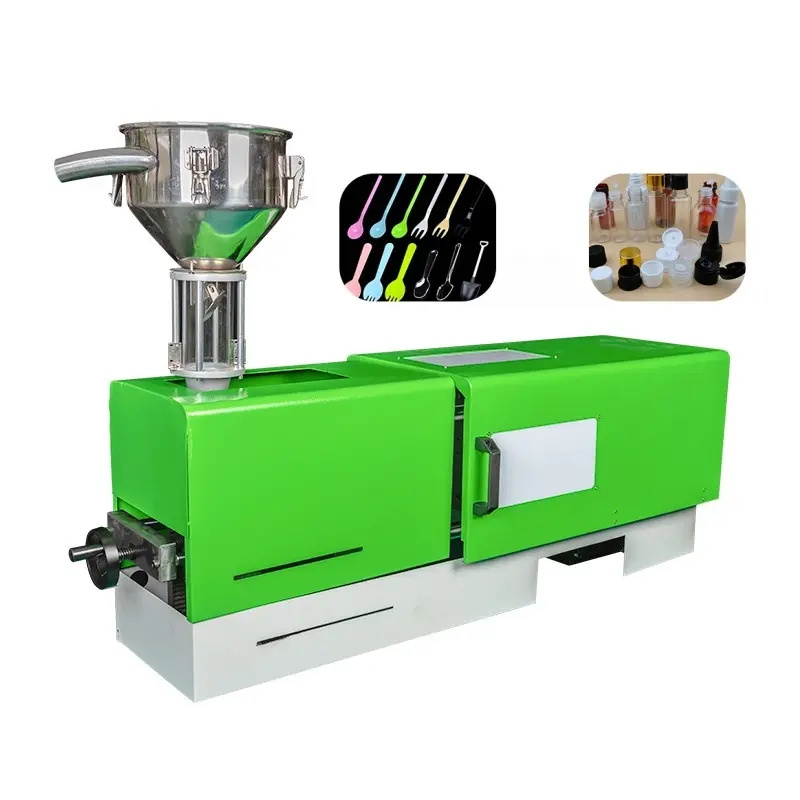

Mini desktop injection machine is the most cost-effective way to produce the small plastic components in the market. As a redesigned and optimized model of the traditional injection machine, and easy to apply for prototyping, testing, new product development and small part production. Easy for maintenance, fast changing mold and lower investment for production.
|

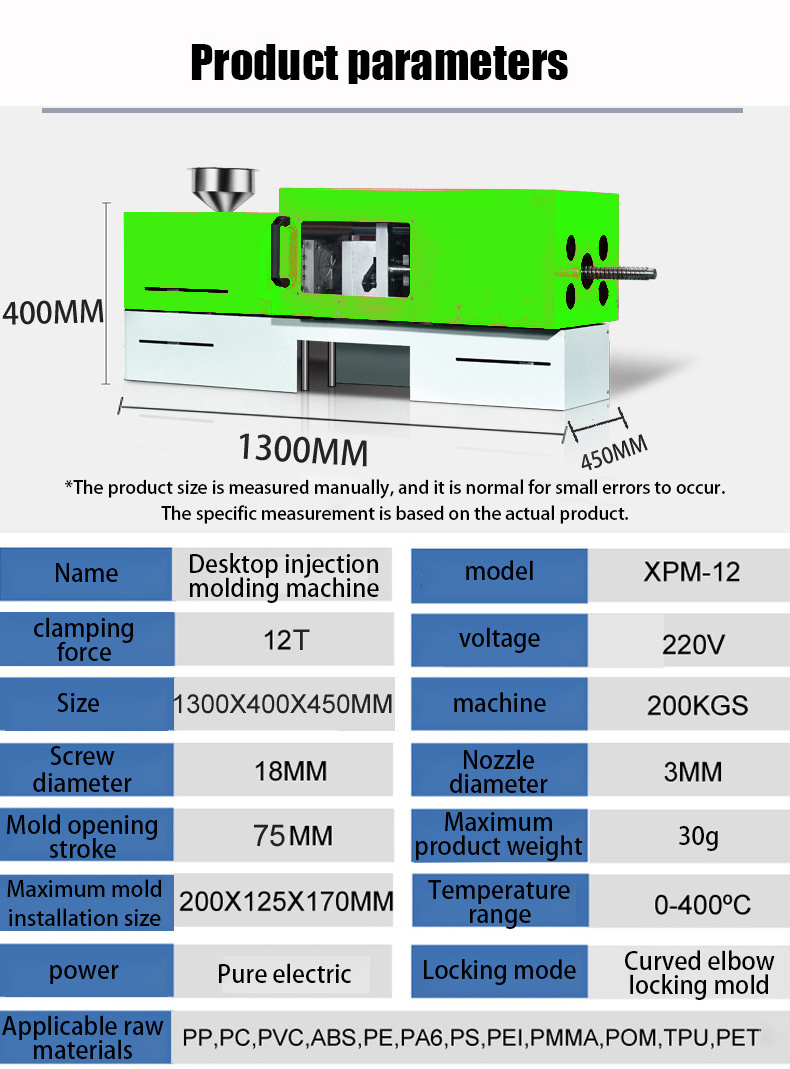

Name
|
Desktop injectionmolding machine
|
model
|
XPM-12
|
||
|
clampingforce
|
12T
|
voltage
|
220V
|
||
|
Screwdiameter
|
18MM
|
Nozzlediameter
|
3MM
|
||
|
Mold openingstroke
|
75MM
|
Maximumproduct weight
|
30g
|
||
|
Maximum moldinstallation size
|
200X125X170MM
|
Temperaturerange
|
0-400°C
|
||
|
power
|
Pure electric
|
Locking mode
|
Curved elbowlocking mold
|
||
|
Applicable rawmaterials
|
PP，PC，PVC，ABS，PE，PA6，PS，PEL，PMMA，POM，TPU，PET.......
|
|
|
||
Technical Parameters
|
Model
|
XPM-12
|
XPM-17
|
||
|
Product Name
|
Small desktop injection molding machine
|
|
|
|
|
Clamping force
|
12T
|
15T
|
|
|
|
Voltage
|
Single phase, 220V 60Hz
|
|
|
|
|
Machine Size
|
1300*400*450mm
|
1400*475*550mm
|
|
|
|
Machine weight
|
145kg
|
225kg
|
|
|
|
Screw diameter
|
18mm
|
22mm
|
|
|
|
Nozzle diameter
|
2mm
|
3mm
|
|
|
|
Mold opening stroke
|
75mm
|
125mm
|
|
|
|
Max. production weight
|
30g
|
40g
|
|
|
|
Maximum mold installation size
|
200*120*150mm
|
175*250*170mm
|
|
|
|
Temperature range
|
0-400C
|
|
|
|
|
Applicable materials
|
PP, PE, PVC, ABS, PC, PA6, PS, PEI, PIMMA, TPU, PTE etc.
|
|
|
|

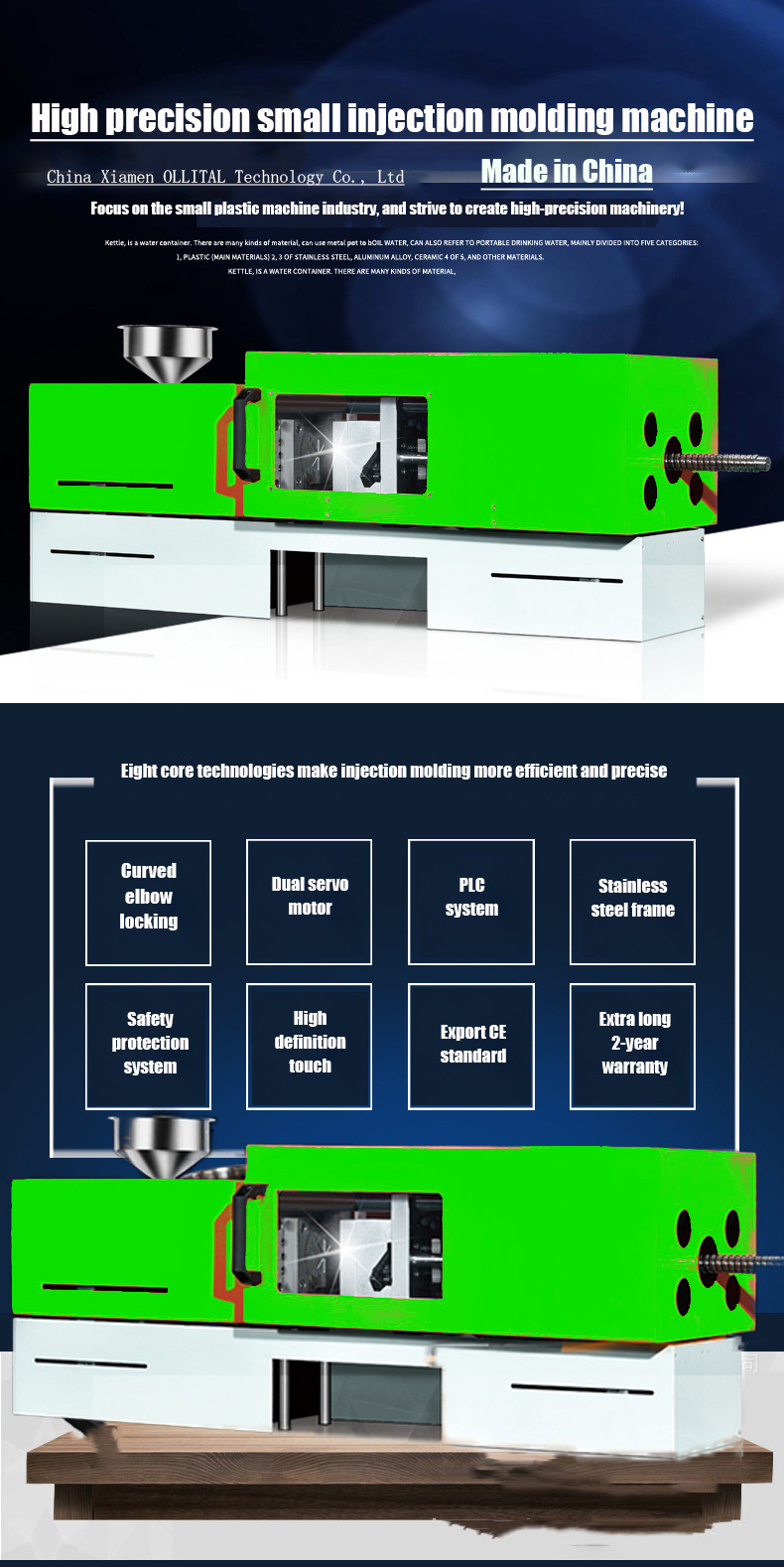

Features
High precision small injection molding machine
Eight core technologies make injection molding more efficient and precise
1.Curved elbow locking mold
2.Safety protection system
2.Safety protection system
3.Dual servo motor
4.High definition touch screen
5.PLC system
6.Export CE standard
7.Stainless steel frame
8.Extra long 2-year warranty
4.High definition touch screen
5.PLC system
6.Export CE standard
7.Stainless steel frame
8.Extra long 2-year warranty
Intelligent control
LCD touch screen, user-friendly operation and real-time monitoring of operation status, with higher work efficiency.
Multi stage constant temperature control
More precise temperature and more stable machine operation.
Curved elbow locking mold
Self locking curved elbow locking mold, more precise than similar small plastic machine screw locking mold
Dual servo energy-saving motor
Big brand, excellent high-power performance, long service life.
Application Scenario
Powerful and widely used functions
-Automotive precision parts -Precision medical accessories
-Household and daily necessities -Children's toys and stationery
-Teaching in universities -Laboratory testing institutions
