Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Machine Weight:
-
7820 kg
-
Bucket capacity:
-
1
-
Marketing Type:
-
New Product 2023
-

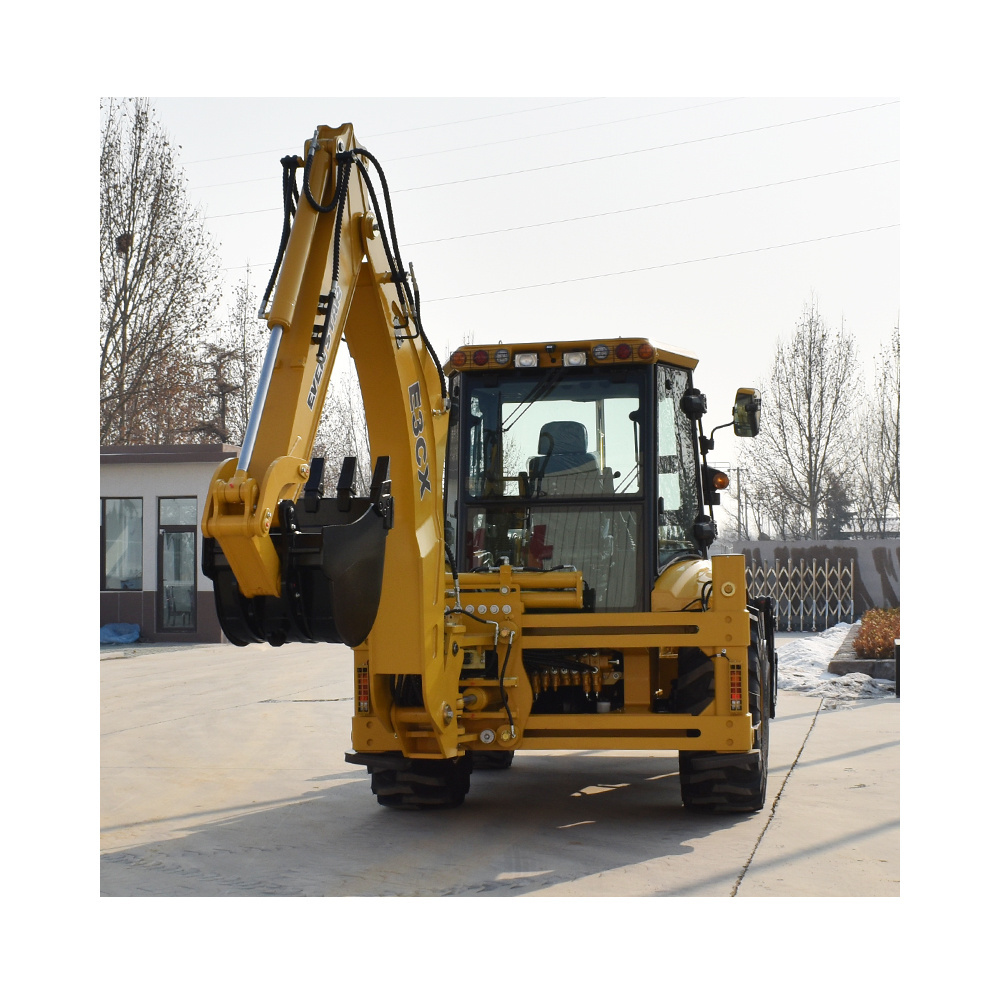

Product name:
-
backhoe loader
-
Rated load:
-
2500kg
-
Load Bucket width:
-
2220mm
-
Rated bucket capacity:
-
1m³
-
After Warranty Service:
-
1Year
-
Rated digging bucket capacity:
-
0.3m³
-
Max. digging depth:
-
4080 mm
-
Engine:
-
CUMMINS 4BTA3.9-C100
-
Rated output:
-
74KW
Quick Details
-
Engine Brand:
-
Cummins
-
Power:
-
74KW
-
Brand Name:
-
EVERSTAR
-
Place of Origin:
-
Jiangsu, China
-
Machine Weight:
-
7820 kg
-
Bucket capacity:
-
1
-
Marketing Type:
-
New Product 2023
-
Product name:
-
backhoe loader
-
Rated load:
-
2500kg
-
Load Bucket width:
-
2220mm
-
Rated bucket capacity:
-
1m³
-
After Warranty Service:
-
1Year
-
Rated digging bucket capacity:
-
0.3m³
-
Max. digging depth:
-
4080 mm
-
Engine:
-
CUMMINS 4BTA3.9-C100
-
Rated output:
-
74KW
Products Description
|
BACKHOE LOADER PARAMETER
|
|
|
|
|
|
|||||
|
|
|
E3CXT
|
E4CX
|
E3CX
|
E5CX
|
|||||
|
Overall Dimension
|
Length(with bucket on ground)
|
7600mm
|
6450±80mm
|
6120×2410×3763
|
6120×2340×3600
|
|||||
|
|
Overall width（at stabilizer ）
|
2302mm
|
2302mm
|
2302mm
|
2302mm
|
|||||
|
|
Overall width（At the edge of the tyre）
|
2250
|
2480±10mm
|
2250
|
2250
|
|||||
|
LOADING PARAMETER
|
Rated load
|
2500KG
|
2500KG
|
2500KG
|
2500KG
|
|||||
|
|
Operating weight
|
7820kg
|
9120kg
|
8200KG
|
8200KG
|
|||||
|
|
Rated bucket capacity
|
1m³
|
1.2m³
|
1.0m3
|
1.0m3
|
|||||
|
|
Digging Depth
|
52mm
|
30mm
|
52mm
|
52mm
|
|||||
|
|
Load Bucket width
|
2220mm
|
2490±10mm
|
2220
|
2220
|
|||||
|
EXCAVATION PARAMETER
|
Rated digging bucket capacity
|
0.3m³
|
0.3m³
|
0.3m³
|
0.3m³
|
|||||
|
|
Max. digging depth
|
4080 mm
|
3820±20 mm
|
4082mm
|
4082mm
|
|||||
|
|
Max. Digging Height
|
5440 mm
|
5510 ±20mm
|
5440 mm
|
5440 mm
|
|||||
|
Diesel engine
|
Model
|
CUMMINS 4BTA3.9—C100
|
CUMMINS 4BTA3.9-C100-II
|
CUMMINS 4BTA3.9—C100
|
CUMMINS 4BTA3.9—C100
|
|||||
|
|
Type
|
Direct injection. Turbocharged. Water cooling
|
|
|
|
|||||
|
|
Rated output
|
74KW
|
74KW
|
74KW
|
74KW
|
|||||
Product Details
Certifications
WHY CHOOSE US
- The company was
founded in 2005
- We have nearly 20 years of experience in the production of construction machinery
- Company has an area of 40,000 square meters and nearly 300 employees
- We have 4 invention patents, 51 utility model patents, 15 appearance patents
- All products have passed the CE certification
- Passed the ISO9001:2008 international quality certification
- We have nearly 20 years of experience in the production of construction machinery
- Company has an area of 40,000 square meters and nearly 300 employees
- We have 4 invention patents, 51 utility model patents, 15 appearance patents
- All products have passed the CE certification
- Passed the ISO9001:2008 international quality certification
