YC-X series moving beam gantry milling machines
are widely used in the finishing of large parts in mining machinery, machine tool manufacturing and other industries.
- Product Details
- {{item.text}}
Quick Details
-
Range of Spindle Speed(r.p.m):
-
100 - 685
-
Spindle Taper:
-
NT50
-
Repeatability (X/Y/Z) (mm):
-
±0.018
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YongChang
-
Model Number:
-
X2012
-
Table Travel (mm):
-
2200
-
Year:
-
2023
-
Dimension(L*W*H):
-
5800*2800*2900
-
Weight (KG):
-
13000
-
Spindle Motor Power(kW):
-
11
-
Max. Table Load(kg):
-
4000 kg
-
CNC or Not:
-
CNC Ganty Milling Machine
-
Machine Type:
-
Vertical Cnc Milling Machine
-
gantry width:
-
1300mm
-
gantry height:
-
1000mm
-
T-slots(mm):
-
22mm
-
Precision:
-
High Precision CNC Milling Machine
-
Keyword:
-
cnc 3 Axis Milling Machine
-
core part brand:
-
famous brand
-
size:
-
customized
-
Control system:
-
FANUC Oi MF /KND/GSK/new generation/Taiwan Baoyuan
Quick Details
-
Table Travel (X) (mm):
-
2200
-
Table Travel (Y) (mm):
-
1300 mm
-
Table Travel (Z) (mm):
-
1000 mm
-
Range of Spindle Speed(r.p.m):
-
100 - 685
-
Spindle Taper:
-
NT50
-
Repeatability (X/Y/Z) (mm):
-
±0.018
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YongChang
-
Model Number:
-
X2012
-
Table Travel (mm):
-
2200
-
Year:
-
2023
-
Dimension(L*W*H):
-
5800*2800*2900
-
Weight (KG):
-
13000
-
Spindle Motor Power(kW):
-
11
-
Max. Table Load(kg):
-
4000 kg
-
CNC or Not:
-
CNC Ganty Milling Machine
-
Machine Type:
-
Vertical Cnc Milling Machine
-
gantry width:
-
1300mm
-
gantry height:
-
1000mm
-
T-slots(mm):
-
22mm
-
Precision:
-
High Precision CNC Milling Machine
-
Keyword:
-
cnc 3 Axis Milling Machine
-
core part brand:
-
famous brand
-
size:
-
customized
-
Control system:
-
FANUC Oi MF /KND/GSK/new generation/Taiwan Baoyuan
Product Overview

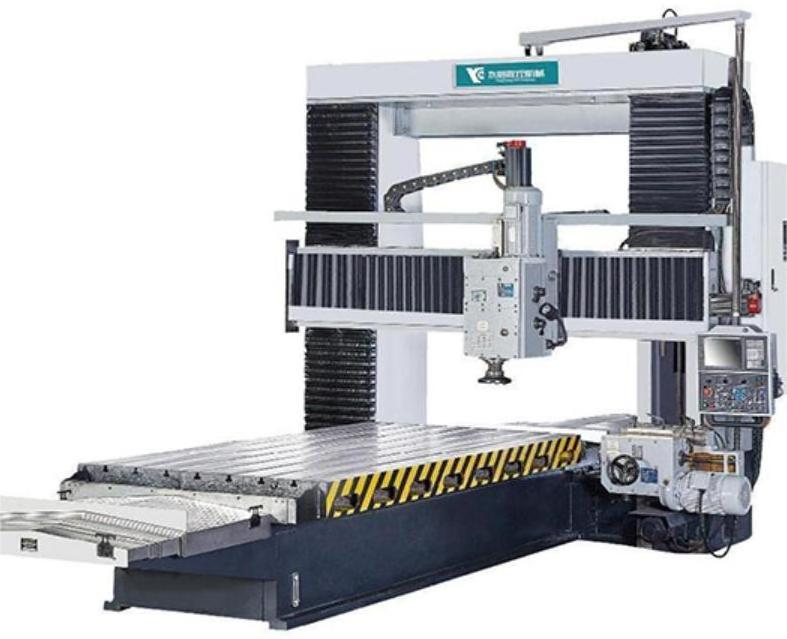

YC-X2012 3-axis High Precision CNC Milling Machine For High Quality Processing
Material:
The whole set of castings using FC250 senior micron Hanna cast iron, after tempering treatment to eliminate stress in time, to ensure that the deformation will be minimized.
Spindle system:
The spindle using SCM21 alloy steel precision machining, after quenching and carburizing treatment, with precision bearings, can withstand long-term high-speed operation.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Project
|
unit
|
X2012
|
|||
|
Workbench
|
|
|
|||
|
Length*width
|
mm
|
2000*1000
|
|||
|
Maximum load of working table
|
Kg
|
4000
|
|||
|
T-slot specifications
|
mm
|
22
|
|||
|
Processing range
|
|
|
|||
|
Gantry width
|
mm
|
1300
|
|||
|
Gantry height
|
mm
|
1000
|
|||
|
Worktable travel
|
mm
|
2200
|
|||
|
Beam lifting stroke
|
mm
|
1000
|
|||
|
Vertical travel of vertical milling head
|
mm
|
1300
|
|||
|
Vertical travel of vertical milling head
|
mm
|
350
|
|||
|
Lateral travel of side milling head
|
mm
|
300
|
|||
|
Vertical travel of side milling head
|
mm
|
500
|
|||
|
Milling head configuration
|
|
|
|||
|
End milling head
|
V8(11KW) (6 speeds 82-505r/min)
|
V8(11KW) (6 speeds 82-505r/min)
|
|||
|
Side milling head
|
V7(7.5KW) (6 speeds 100-685r/min)
|
V8(7.5KW) (6 speeds 82-505r/min)
|
|||
|
Moving speed
|
|
|
|||
|
Workbench portrait
|
mm/min
|
50-3000
|
|||
|
Vertical milling head
|
mm/min
|
50-2000
|
|||
|
Vertical milling head vertical
|
mm/min
|
50-1000
|
|||
|
other
|
|
|
|||
|
Dimensions (L*W*H)
|
mm
|
5800 *2800 *2900
|
|||
|
Optional accessories (additional cost)
|
|
|
|||
|
Digital display
|
|
Three axis digital display
|
|||
|
Economical CNC
|
|
(Economical CNC is equipped with a vertical milling head, and the three axes are driven by ball screws)
|
|||
|
CNC system
|
|
KND series/GSK series/Taiwan new generation/Taiwan Baoyuan/Fanuc
|
|||
