Quick Details
-
Voltage:
-
AC220V/30A /AC380V/30A /AC380V/60A
-
Current:
-
3A to 5A
-
Rated Capacity:
-
depands
-
Rated Duty Cycle:
-
60-100%
-
Dimensions:
-
2000*1070*1170mm
-
Use:
-
Welding
-
Product name:
-
Most Popular Circular Seam Pictures of Fiber Laser Welding Machines
-
Function:
-
Welding Steel Tube
-
Temperature control:
-
K-type Thermocouple Closed Loop
-
Positioning:
-
External Universal Fixture
-
Welding Material:
-
Stainless Steel Stud
-
Power supply:
-
AC 220V+-10% 50/60Hz
-
Power Consumption:
-
500-1000W
-
Frequency:
-
1-200KHz
-
Welding Speed:
-
5~50mm/s
-
Keywords:
-
Laser Welding Machine
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dapeng
-
Weight (KG):
-
500
-
Voltage:
-
AC220V/30A /AC380V/30A /AC380V/60A
-
Current:
-
3A to 5A
-
Rated Capacity:
-
depands
-
Rated Duty Cycle:
-
60-100%
-
Dimensions:
-
2000*1070*1170mm
-
Use:
-
Welding
-
Product name:
-
Most Popular Circular Seam Pictures of Fiber Laser Welding Machines
-
Function:
-
Welding Steel Tube
-
Temperature control:
-
K-type Thermocouple Closed Loop
-
Positioning:
-
External Universal Fixture
-
Welding Material:
-
Stainless Steel Stud
-
Power supply:
-
AC 220V+-10% 50/60Hz
-
Power Consumption:
-
500-1000W
-
Frequency:
-
1-200KHz
-
Welding Speed:
-
5~50mm/s
-
Keywords:
-
Laser Welding Machine
Product Description

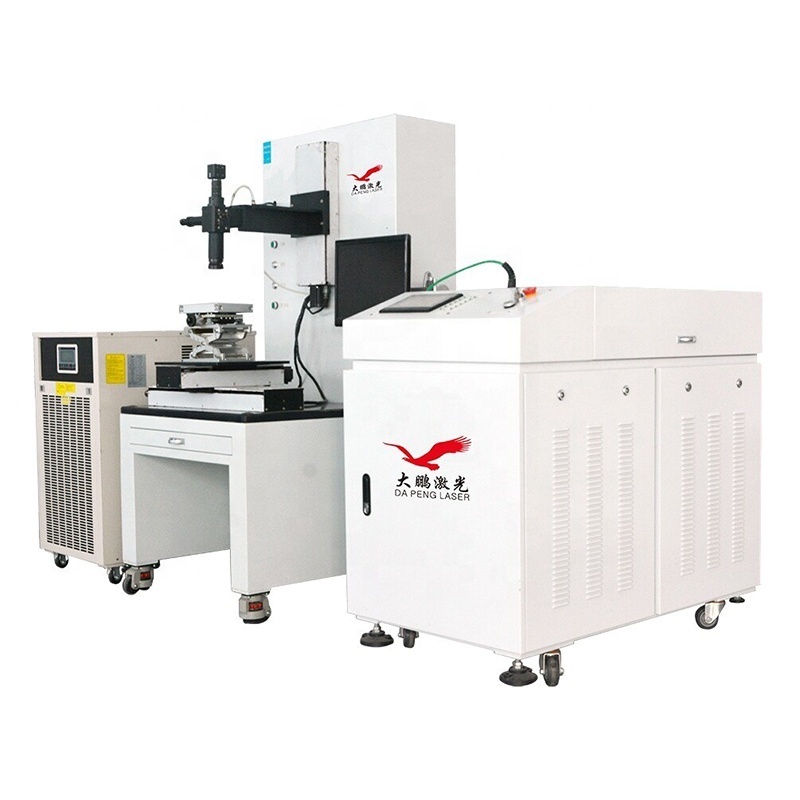

Professional Manufacturer Supplier German Jewelry Small Handheld Steel Letter Laser Welding Machine For All Metal
Specification
|
Model
|
DPH-150
|
DPH-300
|
DPH-500
|
|
Laser source type
|
Fiber source
|
Fiber source
|
Fiber source
|
|
Laser Out Power
|
150W
|
300W
|
500W
|
|
Maximum single pulse energy
|
80J
|
100J
|
120J
|
|
Laser wavelength
|
1064nm
|
1064nm
|
1064nm
|
|
Laser Source
|
Raycus/Max/IPG
|
Raycus/Max/IPG
|
Raycus/Max/IPG
|
|
Focal spot diameter
|
0.1-3mm
|
0.1-3mm
|
0.1-3mm
|
|
Laser frequency
|
1-50Hz
|
1-50Hz
|
1-50Hz
|
|
Repeatability
|
±0.01mm
|
±0.01mm
|
±0.01mm
|
|
Machine operating temperature
|
0~40℃
|
0~40℃
|
0~40℃
|
|
Electricity demand
|
AC220V/30A /AC380V/30A /AC380V/60A
|
AC220V/30A /AC380V/30A /AC380V/60A
|
AC220V/30A /AC380V/30A /AC380V/60A
|
|
Cooling method
|
Water Chiller Hanli
|
Water Chiller Hanli
|
Water Chiller Hanli
|
|
Continuous operating time
|
24 hours
|
24 hours
|
24 hours
|
|
Weight
|
500kg
|
500kg
|
500kg
|
|
Dimensions
|
250*117*117cm
|
250*117*117cm
|
250*117*117cm
|
|
Laser control system
|
Depeng Touch screen
|
Depeng Touch screen
|
Depeng Touch screen
|
Features:
Application industry
* 3C electrical metal parts welding
* Mobile phone precision parts welding
* Precision stamping connector welding
* Precision medical equipment welding
* All kinds of metal spot welding, stack welding and so on
Laser welding system is the use of pulsed xenon lamp pumped Nd: YAG laser crystal output 1064nm wavelength laser,Real-time control of laser power negative feedback technique with arbitrary waveform ensures good stability and repeatability of laser power and its waveform in working condition,Product laser power from 200W to 600W covered a small, medium and high power system,Basically meet the needs of precision welding industry.Mainly for thin-walled materials, precision parts of the welding,Can achieve spot welding,butt welding, stack welding, sealing welding and so on,With high aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, weld formation, beautiful, high weld quality, no stomata, precise control, small focusing spot,
high positioning accuracy,Optical fiber transmission easy to achieve automation.In the battery industry, IT industry, electronic devices, optical communications industry, the sensor industry, the hardware industry, auto parts industry, mold repair industry,jewelry welding industry, glasses industry, porcelain teeth, solar industry, electric industry has been widely used.
Product advantages:
Energy negative feedback laser welding machine works is the output of the laser to add an energy detection device used to detect the size of laser energy,And real-time feedback of the signal to the control side, compared with the theoretical set of energy to form a closed-loop control system to achieve accurate control of laser energy output purposes. Energy negative feedback technology can make the laser output energy has good repeatability, in simple terms, is to ensure that each output of laser energy stability,This can effectively improve product productivity. The output waveform can be arbitrarily set according to the welding material, shape and so on In the specific parts of the welding process, according to the work of the shape and material,Change the output waveform of laser energy,Can greatly improve the quality of welding,And even some of the traditional laser welding problems
can also be resolved by changing the output waveform of the laser. Laser can achieve multi-fiber output at the same time ,Compared with the traditional hard light output system, you can increase the degree of freedom of processing,Can be multi-beam at the same time processing and multi-station processing, for more sophisticated welding provides the conditions.
