High-quality laser head, adopting flight light path design, unique optical structure
design, small optical path deviation, high stability and convenient adjustment.
- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rayfine
-
Dimension(L*W*H):
-
182*133*105cm
-
Weight (KG):
-
350 KG
-
Mode of Operation:
-
CO2 Laser
-
Configuration:
-
CO2 Laser tube
-
Laser tube type:
-
Glass CO2 Laser Tube
-
Laser power:
-
80W/100W/130W/150W
-
Function:
-
Cutting Engraving Non-metal Materials
-
Support material:
-
MDF Acrylic Glass Wood Plastic...
-
After Warranty Service:
-
Online Video Technology
-
Working area:
-
1300*900mm
-
Control Software:
-
RDC6442,RDC6445G/S
-
Working table:
-
Blade Double Working Table
-
core component:
-
RUIDA Controller,Laser tube
-
MOQ:
-
1 piece
Quick Details
-
Engraving Area:
-
1300mm*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-4000mm/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rayfine
-
Dimension(L*W*H):
-
182*133*105cm
-
Weight (KG):
-
350 KG
-
Mode of Operation:
-
CO2 Laser
-
Configuration:
-
CO2 Laser tube
-
Laser tube type:
-
Glass CO2 Laser Tube
-
Laser power:
-
80W/100W/130W/150W
-
Function:
-
Cutting Engraving Non-metal Materials
-
Support material:
-
MDF Acrylic Glass Wood Plastic...
-
After Warranty Service:
-
Online Video Technology
-
Working area:
-
1300*900mm
-
Control Software:
-
RDC6442,RDC6445G/S
-
Working table:
-
Blade Double Working Table
-
core component:
-
RUIDA Controller,Laser tube
-
MOQ:
-
1 piece
Product description

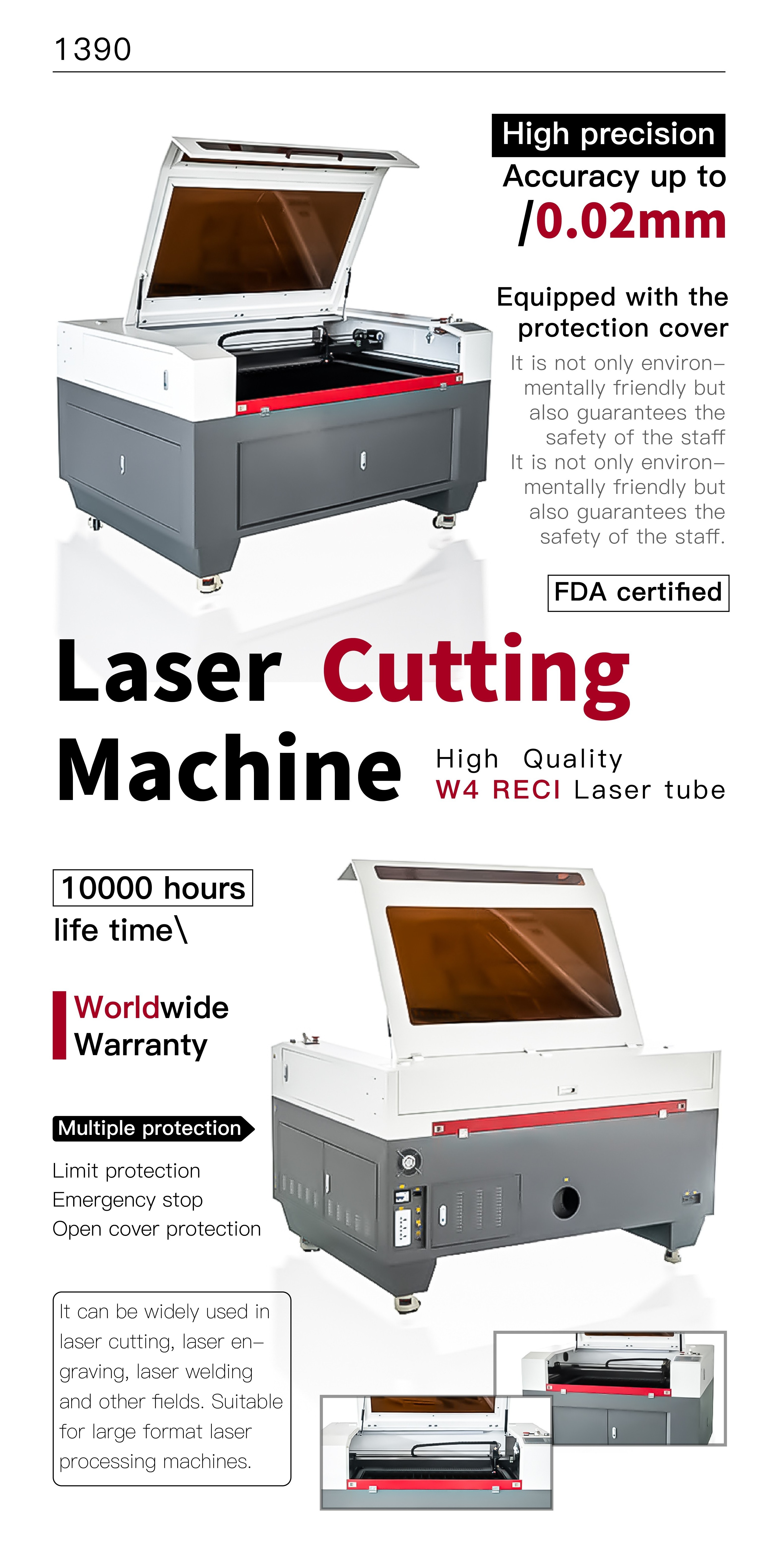

1390 mixed Cutting and engraving machine
It can cut both non-metal and metal materials. It can cut 30mm acrylic, 20mm wood, and 2mm steel. It can be widely used in advertising, decoration, sheet metal, packaging and other industries. The laser uses non-contact thermal processing, with a small thermal diffusion zone and high processing quality, so it is very suitable for cutting metal and non-metal materials. Wide range of processed fabrics, smooth cutting, no flash, no deformation, graphics can be output through the computer at will, no knife die, etc. It can also automatically typesetting, pattern-making, and copy-plate, which saves materials to the utmost extent, while eliminating manual pattern-making and other links, and optimizes production efficiency and production costs.
|
Product Name
|

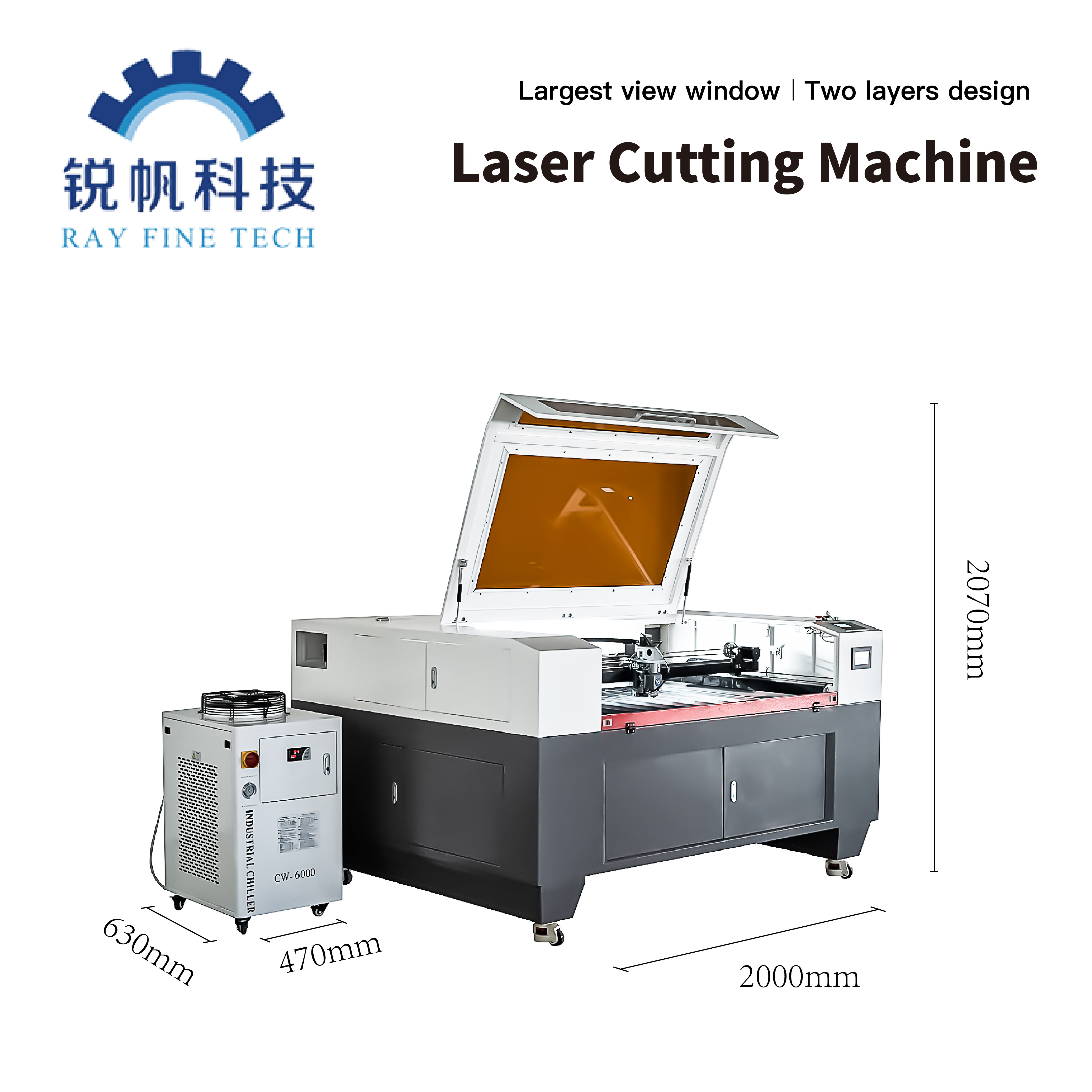

1390 CO2 Mixed laser cutting engraving machine
|
|
|
|
|
Laser Type
|
CO2
|
|
|
|
|
Laser Power
|
150w/180w/ 220w/ 300w
|
|
|
|
|
Working Area
|
1300x900mm
|
|
|
|
|
Engraving Speed
|
0-60000mm/min
|
|
|
|
|
Cutting Speed
|
0-5000mm/min
|
|
|
|
|
Engraving Depth
|
5mm
|
|
|
|
|
Minimum Shaping Character
|
Character:3*3mm,letter:2*2mm
|
|
|
|
|
Power Supply
|
AC220±10% 50HZ/AC110±10% 60HZ
|
|
|
|
|
Resolution Ratio
|
≤4500 dpi
|
|
|
|
|
Water protecting sensor and alarm
|
yes
|
|
|
|
|
Graphic Format Supported
|
PLT/DXF/BMP/JPG/GIF/PGN/TIF
|
|
|
|
|
Operation System
|
Windows 98/ME/2000/XP/VISTA/Windows 7/8
|
|
|
|
|
Software
|
RDWorks/LaserCAD
|
|
|
|
|
Control Configuration
|
DSP
|
|
|
|
|
Gross Weight
|
500kg
|
|
|
|
|
Warranty Time
|
1 years
|
|
|
|
show details
Laser head
Laser tube
Quality EFR60W RECI/YONGLI 150w 180w 220w 300w with 10000 hours life time
Global Warranty: YONGLI H series warranty for 10 months, RECI W series warranty for 18 months.
FOCUS LENS
US imports of substrates,Edge polishing, high light transmittance,Reinforced coating
process, durable and difficult to remove film,After focusing, the spot is fine, and the cutting and engraving effect is very good
process, durable and difficult to remove film,After focusing, the spot is fine, and the cutting and engraving effect is very good
RUIDA 6332m control card
DSP offline laser engraving & cutting controller RDC332m Smart touch screen panel, Full functioning,Convenient and efficient ,Easy to use
RDWorks sodtware
The laser cutting and engraving control software can support most of the controllers of Ruida Technology. The software supports vector files and image files, has software CAD tools, image processing and text processing functions, curve processing functions, CAM functions, graphics output functions, and supports multi-language versions.
S&A
Water chiller
When the laser tube>=100W, Advanced water chiller for cooling laser tube, Adjust
temperature automatically. Besides, it has the function that protect the laser tube from damaging caused by any incidents.
temperature automatically. Besides, it has the function that protect the laser tube from damaging caused by any incidents.
80w and below recommended CW3000
9060 1390 80w and above recommended CW5000 or CW5200
