Quick Details
-
Dimension:
-
2450*1246*1400mm
-
Place of Origin:
-
Shandong, China
-
Certification:
-
EPA, T3a, T3b
-
EPS:
-
Available
-
Clutch:
-
Canadian CV-tech
-
Transmission:
-
Automatic CVT
-
Brake:
-
Four Disc Brake
Quick Details
-
Displacement:
-
>300cc
-
Brand Name:
-
ODES
-
Tire Size:
-
26*9-14/26*11-14
-
Dimension:
-
2450*1246*1400mm
-
Place of Origin:
-
Shandong, China
-
Certification:
-
EPA, T3a, T3b
-
EPS:
-
Available
-
Clutch:
-
Canadian CV-tech
-
Transmission:
-
Automatic CVT
-
Brake:
-
Four Disc Brake

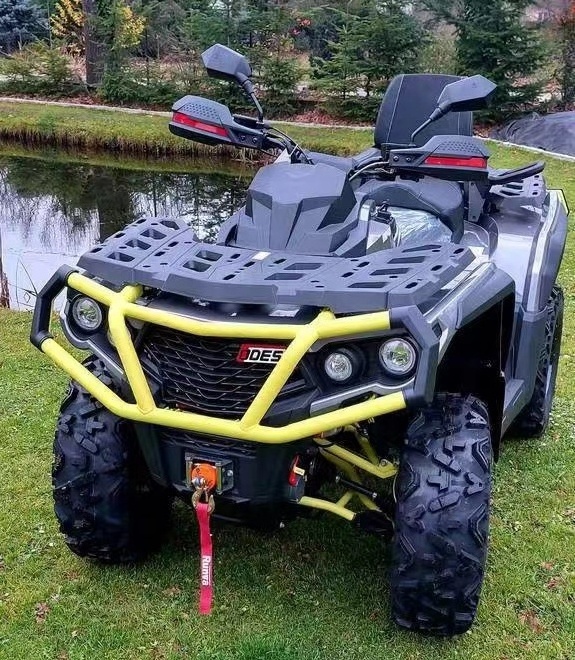

Hot selling Chinese cheap price ODES 1000cc 4x4 ATV Cuatrimoto
Product Description
| Model | 1000S | 1000L |
| Engine Type | V-Twin cylinder, 4-stroke, liquid cooled | |
| Max.Power | 63.7KW/6500rpm | |
| Max. Torque | 101N.m/5500rpm | |
| Vehicle mode | Short wheelbase | Long wheelbase |
| Overall Dimensions(L*W*H) | 2298*1246*1335mm | 2450*1246*1400mm |
| Curb Weight | 400kgs | 420kgs |
| Towing Capacity | 600kgs | 600kgs |
| WheelBase | 1348mm | 1508mm |
| Person Capacity | 1 | 2 |
| Front Tread | 1010mm | |
| Rear Tread | 970mm | |
| Front Wheel | 26*9-14 Steel Rim | |
| Rear Wheel | 26*11-14 Steel Rim | |
| Groud Clearance | 255mm | |
| Rack Capacity (Front/Rear) | 34kgs/68kgs | |
| Brakes(Front/Rear) | Disc Brake | |
| Transmission | CVT, L-H-N-R-P | |
| Front/Rear Suspension | Double A-Arm Independent | |
| Shocks | Preloaded, Oil Damped | |
| Fuel Tank Capacity | 22L | |
| Certification | T3a, T3b, EPA | |
| Configurations | Front/Rear plastic racks, 14" Alloy rims with 26" tires(J-level), CV-tech Clutch, LED lights, aluminum foot teeth pedal, rear passenger seatrest + handgrips(long wheelbase available) | |
| Winch 3000LBS | Included | |
| EPS | Included | |
| Towing Hitch Bar | Included | |
| 26' Deep Thread Tires | Included | |
| Handle Bar Protector | Included | |
| Hydraulic w/Nitrogen Assist | Optional | |
| Front Bumper | Optional | |
| Rear Bumper | Optional | |
| Side Additional Fender | Included | |
| Color Available |
Black/White(Free) Metallic grey/Camouflage(Optional) |
|
Packaging & Shipping
Our Services
1).We have strict quality inspection during production and before shipment;
2).All our products can be customized with logo and brand or others by requirements;
3).We provide long time warranty and quick response once received the questions.
