Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
kooen
-
Voltage:
-
CUSTOMIZED
-
Dimension(L*W*H):
-
BASED
-
Power (kW):
-
110
-
Weight:
-
7000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Keywords:
-
pvc window profile making machine/upvc profile extrusion line
-
machine:
-
upvc profile production line
-
machinery:
-
wpc wood plastic board profile extrusion line
-
the line:
-
plastic pvc wpc window profile making machine
-
Name:
-
PVC Profile Production Line
-
Other name:
-
PVC Compounding Extrusion Line
-
Function:
-
Automatic Profile Making Machine Line
-
Product Type:
-
Pvc Profile Extrusion Machine
-
Product name:
-
PVC Cprofile Extrusion Line
-
Marketing Type:
-
New Product 2020
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
132:1
-
Screw Speed (rpm):
-
35 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
kooen
-
Voltage:
-
CUSTOMIZED
-
Dimension(L*W*H):
-
BASED
-
Power (kW):
-
110
-
Weight:
-
7000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Keywords:
-
pvc window profile making machine/upvc profile extrusion line
-
machine:
-
upvc profile production line
-
machinery:
-
wpc wood plastic board profile extrusion line
-
the line:
-
plastic pvc wpc window profile making machine
-
Name:
-
PVC Profile Production Line
-
Other name:
-
PVC Compounding Extrusion Line
-
Function:
-
Automatic Profile Making Machine Line
-
Product Type:
-
Pvc Profile Extrusion Machine
-
Product name:
-
PVC Cprofile Extrusion Line
-
Marketing Type:
-
New Product 2020

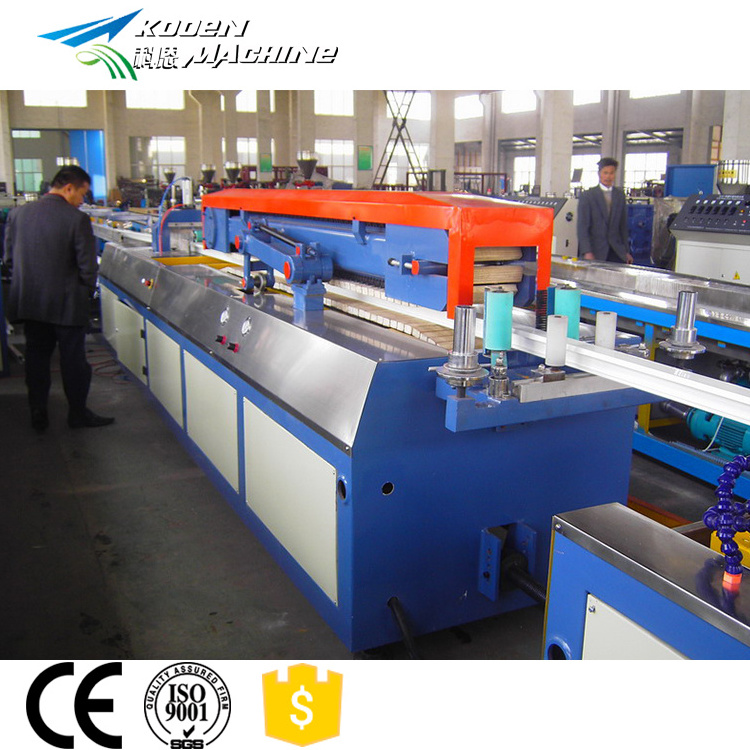

Plastic wood and plastic pvc wpc window profile making machine/upvc profile extrusion line/production line extruder machine
UPVC PVC profile making machine/ PVC profile production line/ PVC profile extrusion line
|
Products |
Decking, garden railing, garden furniture, pallet, outdoor wall cladding.... window and doors, ceiling panel, wall siding panel, flooring, furniture board |
Working flow of Wood plastic (PE PP PVC) profile machine/ WPC making machine/ wood plastic composite machine
Feeder→ Conical Twin-screw Extruder → Mould → Calibration Table → Haul-off → Cutter → Stacker
(Note: Other Auxiliary Machine, such as crusher, mixer, etc. will be provided according to client's requirements)
|
Model |
YF-180 |
YF-240 |
YF-300 |
YF-400 |
YF-500 |
YF-600 |
YF-800 |
YF-1000 |
YF-1250 |
|
Max. width of products (mm) |
180 |
240 |
300 |
400 |
500 |
600 |
800 |
1000 |
1250 |
|
Main extruder |
SJZ51/105 |
SJZ65/132 |
SJZ65/132 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJZ80/156 |
SJZ92/188 |
SJZ92/188 |
|
Extrusion capacity(kg/h) |
150 |
250 |
250 |
250 |
360 |
360 |
360 |
600 |
600 |
|
Main motor power (kw) |
22 |
30/37 |
30/37 |
30/37 |
55 |
55 |
55 |
110 |
132 |
Main components
|
Main extruder machine (Conical double screw extruder) Japanese OMRON Temperature Control Meter,Siemens Contactor Shanghai TAYEE Button and Indicator Light
|
|
Mould(Customer offer products drawing)
|
|
Vacuum Calibration Table Up-and-down adjustive adopt worm reducer & screw adjustive Right-and-left adjustive adopt screw adjustive
|
|
Haul-off and Cutting Machine Unit Japanese FUJI AC Inverter
|
|
Stacker Stacking by Gas Cylinder, Adopt Limited Switch Send out Cutting Signal
|
Other auxiliary machine for option
|
Mixer Unit
|
|
Plastic Crusher
|
|
PVC mill
|
( KOOEN company more plastic pipe/profile extrusion machines for reference )
|
HDPE/PP/PPR pipe extrusion line http://www.kooenmachine.com/plastic-pipe-profile-extrusion-line-video/hdpe-pipe-extrusion-line-video/ ( Video web-link ) |
|
http://www.kooenmachine.com/plastic-pipe-profile-extrusion-line-video/upvc-pipe-extrusion-line-video/ ( Video web-link )
|
|
PVC/WPC profile making machine ( Video web-link ) |
|
PVC reinforced pipe extrusion making machine ( Video web-link )
|
|
PVC fiber reinforced pipe making machine ( Video web-link ) |
|
PVC lay-flat hose extrusion line ( Video web-link ) |
|
PE PP PVC single/ double wall corrugated pipe making machine ( Video web-link ) |
|
Drip irrigation tape production line ( Video web-link ) |
|
http://www.kooenmachine.com/plastic-pipe-profile-extrusion-line-video/pe-wax-production-line-video/ ( Video web-link ) |
|
PS foam photo frame extrusion line ( Video web-link ) |
|
( Video web-link ) |
For choosing proper machine and saving your time, please read these bellow guides carefully:
1. What is kind products(UPVC profile or WPC profile) you want to produce? If possible, please send me several photos of the products for reference?
2. What is the products size (width, thickness)? it is better to send me drawing of the products...
3. What is your power standard (Voltage, Frequency, Phase)?
4. Other requirements about pe plastic pipe extruder you want.
Turnkey project service:
1. we will supply all the machines for the complete production according to customer's requirements.
2. we will provide complete service about factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
KOOEN is a leading plastic machinery manufacturer, dedicated to series plastic pipe/profile extruding production line/waste plastic recycling machinery with more than 20 years export experience. If you have related requirement, please do not hesitate to let me know...
If you want to see video of this PVC/WPC plastic profile production extrusion production line machine, please log on our website: www.kooenmachine.com
plastic wood and plastic pvc wpc window profile making machine/upvc profile extrusion line/production line extruder machine
