Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GXUCNC
-
Dimension(L*W*H):
-
1500*3000*120mm
-
Weight (KG):
-
3000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Keywords:
-
metal engraving machine
-
Working area:
-
1500mm*3000mm
-
Laser wavelength:
-
1070nm
-
Repeat position accuracy:
-
±0.05mm
-
Cutting Thickness:
-
6-16mm
-
Cooling type:
-
watercooling
-
Laser generator:
-
Standard Shenzhen Chuangxin laser
-
Driver:
-
Germany Schneider/Yaskawa servo
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Certification:
-
ce, ISO
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Viet Nam, Indonesia, Mexico, Thailand, Malaysia, South Korea, Algeria
-
Showroom Location:
-
Viet Nam, Indonesia, Mexico, Thailand, South Korea, Algeria, Malaysia
-
Marketing Type:
-
Hot Product 2019
Quick Details
-
Engraving Area:
-
1500mm*3000mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
0-600mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GXUCNC
-
Dimension(L*W*H):
-
1500*3000*120mm
-
Weight (KG):
-
3000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Keywords:
-
metal engraving machine
-
Working area:
-
1500mm*3000mm
-
Laser wavelength:
-
1070nm
-
Repeat position accuracy:
-
±0.05mm
-
Cutting Thickness:
-
6-16mm
-
Cooling type:
-
watercooling
-
Laser generator:
-
Standard Shenzhen Chuangxin laser
-
Driver:
-
Germany Schneider/Yaskawa servo
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Certification:
-
ce, ISO
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Viet Nam, Indonesia, Mexico, Thailand, Malaysia, South Korea, Algeria
-
Showroom Location:
-
Viet Nam, Indonesia, Mexico, Thailand, South Korea, Algeria, Malaysia
-
Marketing Type:
-
Hot Product 2019
Product Description
|
Laser power
|
700-1500w
|
|
The laser wavelength
|
1070nm
|
|
Min. line width
|
0.1mm
|
|
Registration accuracy
|
±0.05mm
|
|
Cutting range
|
1500*3000mm
|
|
Cutting thickness
|
6-16mm
|
|
Aimed and positioning
|
Red light
|
|
Power supply
|
380V/50HZ
|
|
Cooling mode
|
water cooled
|
|
N.W.
|
4000kg
|
|
Application
|
Widely used in sheet metal processing,advertising signs production, kitchen utensils,all kinds of metal products,lighting hardware,saw blades,glasses,machinery parts and other industries.
|

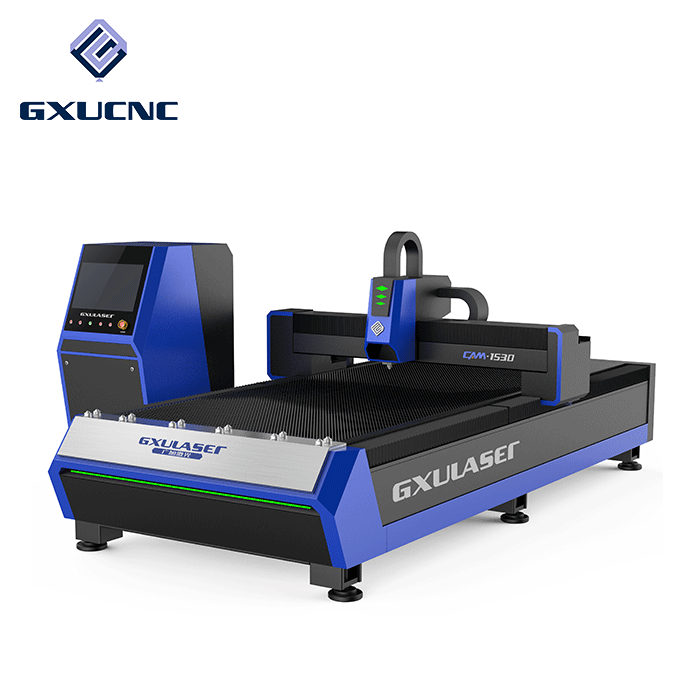

Machine features :
- The body with industrial welded structure, after planed and precisely processed by high precision gantry, go through low temperature annealing by CNC,long-term use, to ensure the strength and stability of the machine;
- Imported grinding grade ball screw, imported high-precision linear guide, high precision;
- Adopt servo drive control, make sure torque stronger ,faster and more stable;
- Automatically-tracing smoking extraction system, energy-saving and perfect smoke extraction effect;
- Adopt leading domestic laser cutting head and laser lens, focus spot smaller, cutting line finer, more productive, processing quality is better;
- Professional laser cutting CNC control system, with intelligent layout function, the operation is more simple and more efficient.
-
Application:
Widely used in sheet metal processing, advertising signs production, kitchen utensils, all kinds of metal products, lighting hardware, saw blades, glasses, machinery parts and other industries
Packaging & Shipping
Packaging: Standard plywood package, professional package for international trade
Shipping:
We will send out the machine by sea way to your nearest port general .
If you want to send by DHL or any other shipping way,please contact us in advance.
For shipping purpose, please tell us your phone number and detail contact information after you confirm the order.
