Quick Details
-
Brand Name:
-
dentafim
-
Model Number:
-

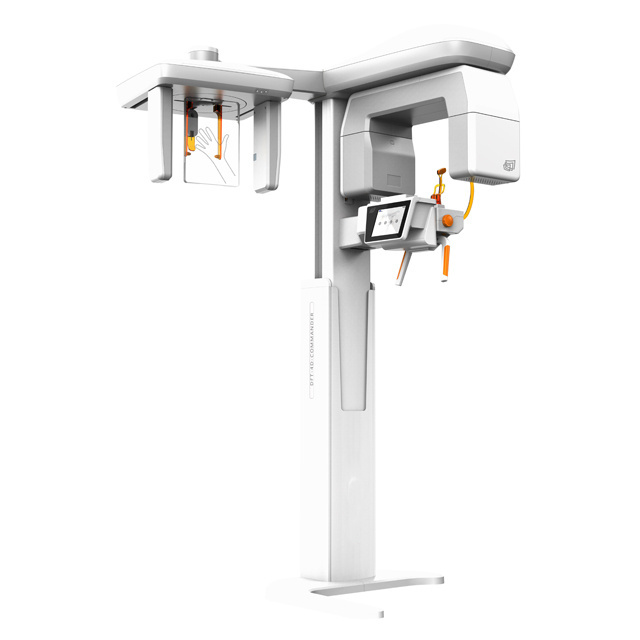

DFT-4D-COMMANDER
-
Model:
-
CBCT,Panoramic,Cephalometric,TMJ
-
CBCT Detector:
-
Amorphous silicon detector
-
Tube Voltage:
-
70-90 Kv
-
Focus:
-
0.5mm
-
Patient Position:
-
stand up,face to face
-
Reconstruction:
-
<60s
-
Voxel:
-
0.25mm,0.2mm,0.1mm,0.0075mm
-
FOV:
-
5*5,8*8,12*10,15*9cm
-
Equipment Dimensions:
-
1900mm(L)*1350mm(W)*1700-2400mm(H)
-
Assembly Dimensions:
-
2000-2500mm(L)*2000(W)*2700mm(H)
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
dentafim
-
Model Number:
-
DFT-4D-COMMANDER
-
Model:
-
CBCT,Panoramic,Cephalometric,TMJ
-
CBCT Detector:
-
Amorphous silicon detector
-
Tube Voltage:
-
70-90 Kv
-
Focus:
-
0.5mm
-
Patient Position:
-
stand up,face to face
-
Reconstruction:
-
<60s
-
Voxel:
-
0.25mm,0.2mm,0.1mm,0.0075mm
-
FOV:
-
5*5,8*8,12*10,15*9cm
-
Equipment Dimensions:
-
1900mm(L)*1350mm(W)*1700-2400mm(H)
-
Assembly Dimensions:
-
2000-2500mm(L)*2000(W)*2700mm(H)
Product Description
Specification
|
Mode
|
CBCT, Panoramic, cephla, TMJ
|
|
CBCT Detector
|
Amorphous silicon detector/CMOS
|
|
Grey scale
|
16bit
|
|
Tube voltage
|
70～90Kv
|
|
Tube current
|
4mA～10mA
|
|
Focus
|
0.5mm
|
|
Patient position
|
stand up, face to face
|
|
Scanning time
|
CBCT 15s, panoramic 17s, Cephla 0.7s/12s, TMJ 20s
|
|
Reconstruction
|
<60s
|
|
FoV
|
15cm*10cm(5*5～15*10 adjustable） 16cm*11cm(5*5～16*11 adjustable) 16cm*17cm(5*5～16*11 adjustable，16*17)
|
|
Voxel
|
0.25mm, 0.2mm, 0.1mm, 0.075mm
|
|
Dimensions
|
1900mm(L)*1350mm(W)*1700～2400mm(H)
|
|
Min.Footprint
|
2500mm(L)*2000mm(W)*2700mm(H),with Cephla 2000mm(L)*2000mm(W)*2700mm(H),without Cephla
|
|
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
