- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ALD
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
4480X1700X1600cm or as requeste
-
Weight (T):
-
13 T
-
Motor Power (kw):
-
146 kw
-
Warranty:
-
1 Year
-
Core Components:
-
cylinder, sealing parts
-
Product name:
-
electric hydraulic press
-
Power Source:
-
HYDRAULIC
-
Nominal Pressure:
-
20000 KN
-
Knock out pressure:
-
2000 KN
-
Slide stroke:
-
1000 mm
-
Open height:
-
1650 mm
-
Ejection stroke:
-
400 mm
-
Material:
-
Strong Steel
-
Control System:
-
PLC(Touch Screen)
-
Application:
-
Sheet Metal Forming, Powder Material Molding
-
Certification:
-
ISO
Quick Details
-
Machine Type:
-
Four-column Two-beam Hydraulic Press
-
Return Force (kN):
-
20000 kN
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ALD
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
4480X1700X1600cm or as requeste
-
Weight (T):
-
13 T
-
Motor Power (kw):
-
146 kw
-
Warranty:
-
1 Year
-
Core Components:
-
cylinder, sealing parts
-
Product name:
-
electric hydraulic press
-
Power Source:
-
HYDRAULIC
-
Nominal Pressure:
-
20000 KN
-
Knock out pressure:
-
2000 KN
-
Slide stroke:
-
1000 mm
-
Open height:
-
1650 mm
-
Ejection stroke:
-
400 mm
-
Material:
-
Strong Steel
-
Control System:
-
PLC(Touch Screen)
-
Application:
-
Sheet Metal Forming, Powder Material Molding
-
Certification:
-
ISO
Product Description
Parameter of hydraulic press machine
|
Parameter name
|
Unit
|
HSY32-100
|
HSY32-200
|
HSY32-315
|
HSY32-500
|
HSY32-630
|
HSY32-2000
|
|
Nominal force
|
KN
|
1000
|
2000
|
3150
|
5000
|
6300
|
20000
|
|
Liquid maximum working pressure
|
Mpa
|
25
|
25
|
25
|
25
|
25
|
25
|
|
Max opening height of the slide
|
mm
|
800
|
1120
|
1250
|
1500
|
1500
|
1650
|
|
The slider range
|
mm
|
500
|
710
|
800
|
900
|
900
|
1000
|
|
The worktable size
|
mm
|
630*630
|
1000*940
|
1260*1160
|
1400*1400
|
1600*1600
|
2000*1800
|
|
Ejection stroke
|
mm
|
200
|
200
|
300
|
300
|
300
|
400
|
|
Slider speed
|
down mm/s
|
60
|
80
|
100
|
150
|
150
|
200
|
|
|
press mm/s
|
16-6
|
20-8
|
12-5
|
20-8
|
16-6
|
16-6
|
|
|
return mm/s
|
90
|
85
|
70
|
140
|
120
|
120
|

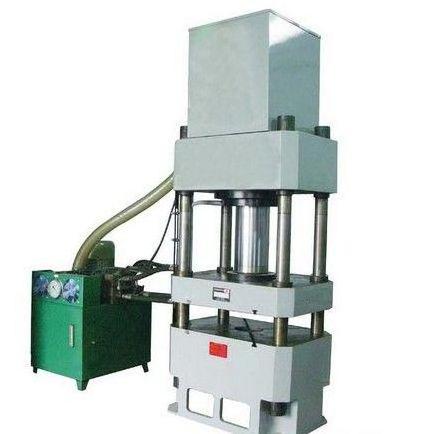

The deep drawing hydraulic press machine is 100 tons of four-column three-beam hydraulic press, suitable for metal materials such as stretching, bending, flanging, cold, punching and other processes, but also for calibration, press, powder products, abrasive products compression molding and plastic products, The compression molding of the insulating material.
Features
1. Computer optimization structure design, four-column structure is simple, economical and practical; frame structure is good rigidity, high precision, anti-partial load capacity.
2. Hydraulic control using plug-in base system, reliable action, long life, small hydraulic shock, reducing the continuous pipeline and leaks.
3. The use of imported PLc control of the electrical system is compact, work sensitive, reliable, flexible; relay control system is reliable, intuitive action, easy maintenance.
Pressed products
Manhole cover Frp SMC water tank
FRP septic tank Meter box
Sign pile Galvanized steel or stainless steel water tank panels
Production process
Detailed Images
Our Company
Hengshui Aoliande Trade Co., Ltd. is professional manufacturer of FRP Pipe, FRP storage tank, FRP cooling tower, FRP molded products, FRP pultruded products and relative FRP production machines & technology. Through the continuous development and introduction of professional technology, our company rely on advanced technology, exquisite craftsmanship, reliable quality and perfect service, passed ISO9001, ISO14001, OHSAS18001 certification, our annual sales of glass fiber reinforced plastic series products achieved 20,000 tons.
Our Service
re-Sales Service
1) Customized service
Sizes can be customized per client's request.
2) Professional sales and technical team to provide complete solution including construction suggestion.
3) High quality and on-time delivery per our qualified worker, muture technology and factory big capacity.
After-Sales Service
1) Guarantee period: 1 years based on our good.
2) Video, on-line support on installation.
3) Prefessional logistic dept to make products arrival to client on-time and even to door.
4) If client doesn't satisfy, we can accept product return or change.
Customers visit
Packing & Delivery
FAQ
What is the lead time of machine fabrication?
Normally, we offer 30 working days after receiving advance payment for standard machine fabrication. Machine made according to demand will take 40~60 working days. For machine in stock, we can ship immediately. However, the actually lead time will be affected by different machine requirement and quantity.
What is the warranty policy?
We provide one year component-free warranty and lifetime paid maintenance service & support. Once problem occurs, we will support and diagnose the problem by online chats or calls within 12 hours.
What is the terms of delivery? And where is the nearest sea port?
We offer EXW, FOB, CFR, CIF service by train or containers. The nearest port is QingDao port, we can ship from Shanghai, Tianjin, Dalian and Lianyungang ports instead.
What are the machine testing and inspection rules before shipment?
Generally, we will conduct pilot runs after machine completion. We sincerely invite customer to visit us and proceed machine inspection activity with us. Alternatively, we can offer video or online inspection according to requirement.
Can you provide some videos of your factory and the machine working?
Sure, you can contact our sales representative and ask for videos of specific machines.
