Quick Details
-
Size:
-
8X5ft
-
Color:
-
Silver
-
Axle:
-
50x50mm SOLID square disc braked axle, Material:1045 steel
-
Material:
-
ASTM :1045 , A570
-
Surface finish:
-
Hot-dip galvanized
-
Light:
-
Led light sets with 7pin plug
-
Drawbar:
-
100*50*3mm
-
Floor:
-
2.5mm Chequer Plate, Material:ASTM:A570
Quick Details
-
Max Payload:
-
2000kg
-
Brand Name:
-
SWT
-
Place of Origin:
-
Jiangsu, China
-
Size:
-
8X5ft
-
Color:
-
Silver
-
Axle:
-
50x50mm SOLID square disc braked axle, Material:1045 steel
-
Material:
-
ASTM :1045 , A570
-
Surface finish:
-
Hot-dip galvanized
-
Light:
-
Led light sets with 7pin plug
-
Drawbar:
-
100*50*3mm
-
Floor:
-
2.5mm Chequer Plate, Material:ASTM:A570
|

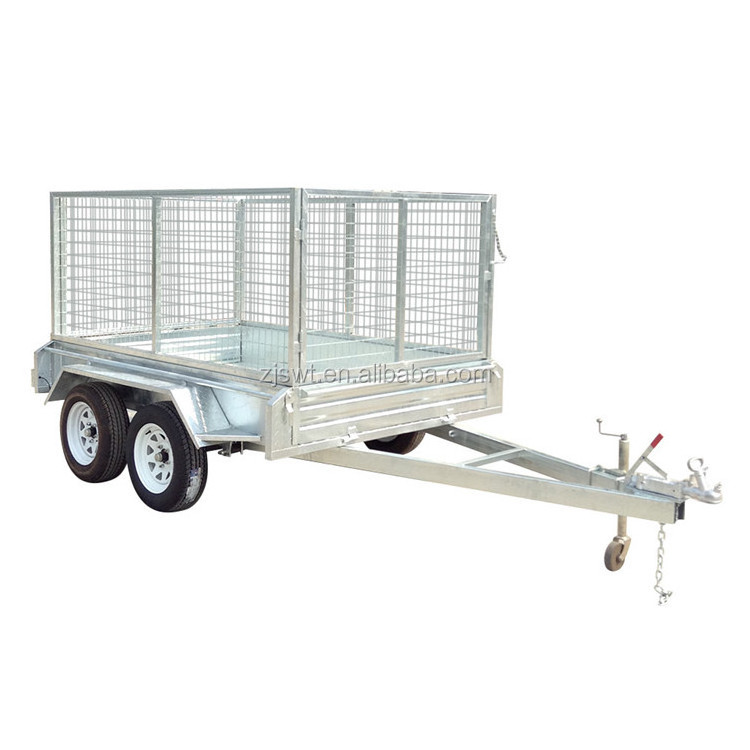

GALVANISED Tandem BOX TRAILER HEAVY DUTY Tandem AXLE FULLY WELDED
|
|
|
|
|
|
|
|
|||||||
|
Strong welded hot dipped galvanized tandem axle utility box trailer
|
|
|
|
|
|
|
|
|||||||
|
SIZE
|
MODEL NO.
|
OVERALL SIZE
|
INNER BOX SIZE
|
SURFACE TREATMENT
|
GVW
|
SURFACE TREATMENT
|
GVW
|
|||||||
|
8*5FT
|
SWT-TD01
|
4150*2050*800MM
|
2440*1525MM
|
Hot Dipped Galvanized
|
2000KG
|
Hot Dipped Gal
|
750KGS
|
|||||||
|
9*5FT
|
SWT-TD02
|
4410*2050*800MM
|
2700*1525MM
|
Hot Dipped Galvanized
|
2000KG
|
Hot Dipped Gal
|
750KGS
|
|||||||
|
10*5FT
|
SWT-TD03
|
4760*2050*800MM
|
3050*1525MM
|
Hot Dipped Galvanized
|
2000KG
|
Hot Dipped Gal
|
750KGS
|
|||||||
|
10*6FT
|
SWT-TD04
|
4150*2330*800MM
|
3050*1800MM
|
Hot Dipped Galvanized
|
2000KG
|
Hot Dipped Gal
|
750KGS
|
|||||||
|
Different Sizes For Light Duty Cage Trailer
|
|
|
|
|
||||
|
Drawbar
|
100x50 RHS. 1600mm long with 10mm safety chain (AS4177 stamp)
|
|
|
|
||||
|
Chassis
|
50X50 RHS (Not angle)
|
|
|
|
||||
|
Floor & Sides
|
Checker plate (Not cheap Ribbed zinc plate)
|
|
|
|
||||
|
Axle
|
40mm Square Tube axle
|
|
|
|
||||
|
Spring
|
6leafs rocker roller suspension (not 4leafs or 5leafs cheap and light spring)
|
|
|
|
||||
|
Wheel
|
185/70R14 wheel with 14inch white paint rim
|
|
|
|
||||
|
Jockey wheel
|
6inch top wind heavy duty jockey wheel. E-mark & DOT certificated
|
|
|
|
||||
|
Coupling
|
50mm AU standard, 1 7/8 NZ standard, EU standardg
|
|
|
|
||||
|
Light
|
LED Lights with 7pin plug and 7 core wiring. E-mark & DOT certificated
|
|
|
|
||||
|
Surface Treatment
|
Hot dipped galvanized
|
|
|
|
||||
