Quick Details
-
Brand Name:
-
oem deliwell
-
Model Number:
-
RT OC 5 D --RT OC 8D
-
Max. Current:
-
0.5A
-
Mechanical Life:
-
10000 Cycles
-
Name:
-

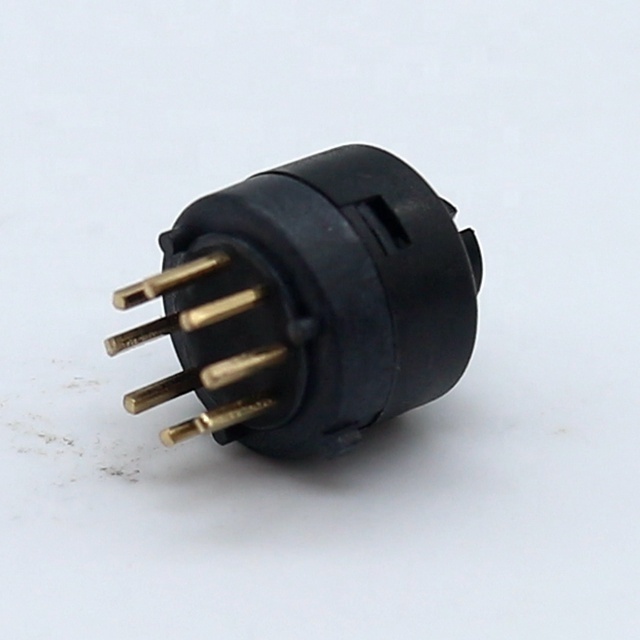

rotary switch
-
POLE-POSITION:
-
1 pole, 2 position 8 position
-
ELECTRICAL RATING:
-
0.5A 24V DC ; 0.2A 48V DC
-
CONTACT RESISTANCE:
-
100mΩ Max.
-
INSULATION RESISTANCE:
-
100MΩ min. 500V DC
-
DIELECTRIC STRENGTH:
-
Breakdown is not allowable,500V AC for 1 minute
-
OPERATING FORCE:
-
350 ± 150 g
-
OPERATING LIFE:
-
2,000 cycles
-
OPERATING TEMPERATURE RANGE:
-
- 20°C ~ 70°C
-
MATERIAL HOUSING:
-
NYLON 6/6
-
Certification:
-
Rohs
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
500V DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
oem deliwell
-
Model Number:
-
RT OC 5 D --RT OC 8D
-
Max. Current:
-
0.5A
-
Mechanical Life:
-
10000 Cycles
-
Name:
-
rotary switch
-
POLE-POSITION:
-
1 pole, 2 position 8 position
-
ELECTRICAL RATING:
-
0.5A 24V DC ; 0.2A 48V DC
-
CONTACT RESISTANCE:
-
100mΩ Max.
-
INSULATION RESISTANCE:
-
100MΩ min. 500V DC
-
DIELECTRIC STRENGTH:
-
Breakdown is not allowable,500V AC for 1 minute
-
OPERATING FORCE:
-
350 ± 150 g
-
OPERATING LIFE:
-
2,000 cycles
-
OPERATING TEMPERATURE RANGE:
-
- 20°C ~ 70°C
-
MATERIAL HOUSING:
-
NYLON 6/6
-
Certification:
-
Rohs
1 pole 1/2/3/4/5/6/7/8/9/10/11/12 position rotary switch 1 2 3 4 6 pole 7 8 9 10 11 12 16 position 125v ac 0.3a rotary switch
Specification
|
Certification
|
Rohs
|
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
oem deliwell
|
|
Model Number
|
RT OC 5 D --RT OC 8D
|
|
Max. Current
|
0.5A
|
|
Max. Voltage
|
500V DC
|
|
Mechanical Life
|
10000 Cycles
|
|
Name
|
rotary switch
|
|
POLE-POSITION
|
1 pole, 2 position 8 position
|
|
ELECTRICAL RATING
|
0.5A 24V DC ; 0.2A 48V DC
|
|
CONTACT RESISTANCE
|
100mΩ Max.
|
|
INSULATION RESISTANCE
|
100MΩ min. 500V DC
|
|
DIELECTRIC STRENGTH
|
Breakdown is not allowable,500V AC for 1 minute
|
|
OPERATING FORCE
|
350 ± 150 g
|
|
OPERATING LIFE
|
2,000 cycles
|
|
OPERATING TEMPERATURE RANGE
|
- 20°C ~ 70°C
|
|
MATERIAL HOUSING
|
NYLON 6/6
|
