Instruments are used in effluent treatment, pure water, boiler water, surface water, electroplate, electron, chemical industry, pharmacy, food production process, environmental monitoring, brewery, fermentation etc.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
DOG-1912X
-
Product name:
-
Dissolved Oxygen Meter Analyzer Water Analysis for Waste Water
-
Key words:
-
dissolved oxygen meter for waste water
-
Measuring range:
-
0.00 to 20.00ppm, 0.0 to 200.0 ppb
-
OEM Service:
-
Yes dissolved oxygen meter for waste water
-
Dimension:
-
144*144*107mm
-
Communication:
-
RS485(Optional)
-
Power:
-
From 90 to 260 VAC, power consumption < 5 watts
-
Hole size:
-
138*138mm
-
Installation:
-
Flushbonading type/wall hanging
-
Working condition:
-
0-60℃,related humidity<85%(without condensation)
-
Type:
-
DOG-1912X
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EIT
-
Model Number:
-
DOG-1912X
-
Product name:
-
Dissolved Oxygen Meter Analyzer Water Analysis for Waste Water
-
Key words:
-
dissolved oxygen meter for waste water
-
Measuring range:
-
0.00 to 20.00ppm, 0.0 to 200.0 ppb
-
OEM Service:
-
Yes dissolved oxygen meter for waste water
-
Dimension:
-
144*144*107mm
-
Communication:
-
RS485(Optional)
-
Power:
-
From 90 to 260 VAC, power consumption < 5 watts
-
Hole size:
-
138*138mm
-
Installation:
-
Flushbonading type/wall hanging
-
Working condition:
-
0-60℃,related humidity<85%(without condensation)
-
Type:
-
DOG-1912X
Product Description

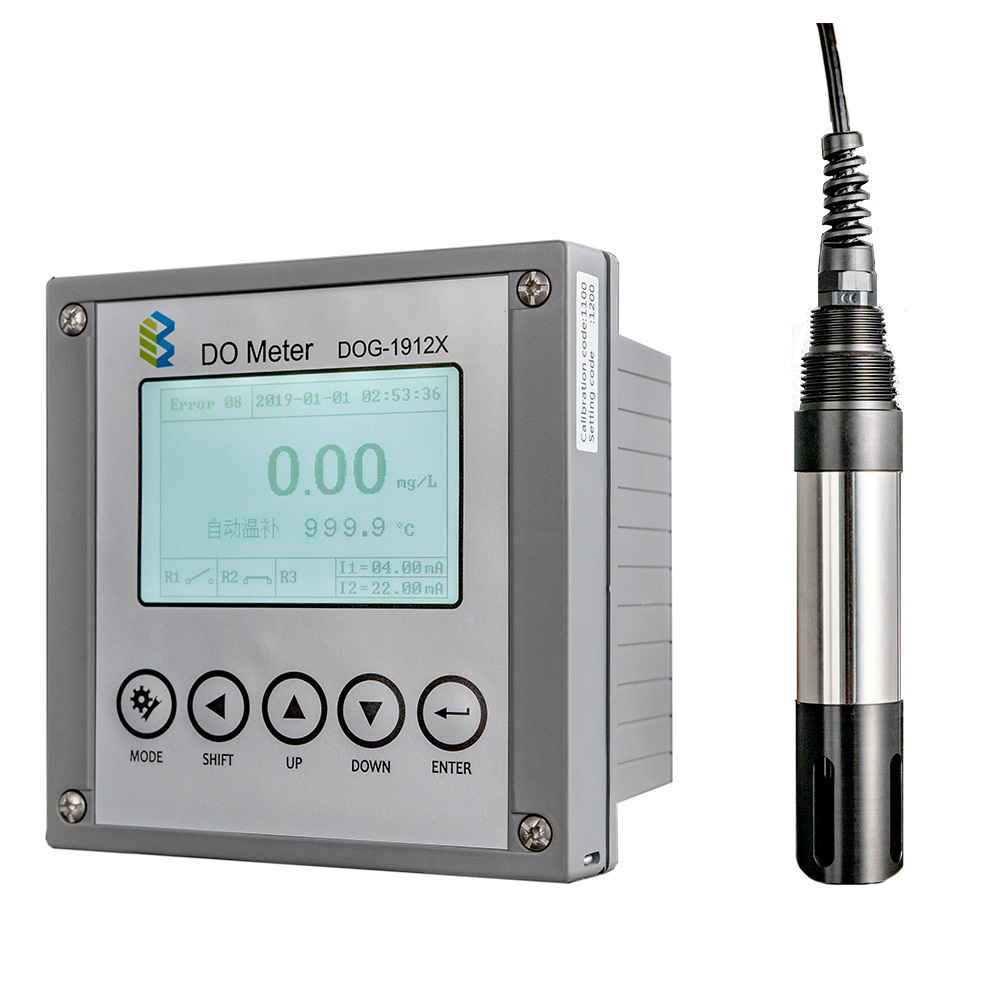

DOG-1912X
Dissolved Oxygen Sensor:
Recommend Products
Main Parameters of DOG-3082/1912/1902 controller
| Model | DOG-3082 | DOG-1912x | DOG-1902 |
| Range | 0~100ug/L,0~20mg/L | 0~20mg/L | |
| Temp compensation |
0~99.9C/0~150C(customized) |
0~99C | |
| Resolution | 0.1ug/L;0.01mg/L;0.1C | 0.01mg/L;0.01% | |
| Accuracy | ug/L:+/-1.0%FS,mg/L:0.5%FS,temp:+/-0.5C | +/-1.5% | |
| Communication | RS485(optional) | ||
| Output | 0~10mA,4-20mA | 4-20mA | |
| Relay | 2 relays | ||
| Power | 220VAC or 24VDC | 220VAC | |
| Protection | IP65 | ||
| Data saved time | 10 years | ||
| Overall size | 146*146*150mm | 146*146*108mm | 96*96*110mm |
| Hole size | 138*138mm | 138*138mm | 92*62mm |
| Mounted | wall mounted/panel | wall mounted/panel | panel |
| Application | power,chemical,metal,pharmacy,food,drinking,biochemistry | chemical,drinking | |
Main Parameters of HDOG-209F/FA electrode
| Model | DOG-209F | DOG-02FA |
| Range | 0~20mg/L | |
| Temperature | 0~60C | |
| Polarization time | 6 hour | |
| Polarization voltage | 0.7V | |
| Accuracy | <-/+0.01mg/L | |
| Drift | <2%/month | |
| Min measuring value | <0.1mg/L | |
| Membrane thin | 50um | 100um |
| Housing material | SS316L/PVC | |
| Current in air | 50~80nA/0.1ppm(Max 3.5uA) | |
| Temperature compensation | Pt100/Pt1000/22K/2.252K | |
| Calibration time | 90 days | |
| Cable | standard 5 meters(customized) | |
Technical indexes
|
Measuring range |
0.0 to 200.0 |
0.00 to 20.00ppm, 0.0 to 200.0 ppb |
|
Resolution |
0.1 |
0.01 / 0.1 |
|
Accuracy |
±0.2 |
±0.02 |
|
Temp. compensation |
Pt 1000/NTC22K |
|
|
Temp. range |
-10.0 to +130.0℃ |
|
|
Temp. compensation range |
-10.0 to +130.0℃ |
|
|
Temp. resolution |
0.1℃ |
|
|
Temp. accuracy |
±0.2℃ |
|
|
Current range of electrode |
-2.0 to +400 nA |
|
|
Accuracy of electrode current |
±0.005nA |
|
|
Polarization |
-0.675V |
|
|
Pressure range |
500 to 9999 mBar |
|
|
Salinity range |
0.00 to 50.00 ppt |
|
|
Ambient temperature range |
0 to +70℃ |
|
|
Storage temp. |
-20 to +70℃ |
|
|
Display |
Back light, dot matrix |
|
|
DO current output1 |
Isolated, 4 to 20mA output , max. load 500Ω |
|
|
Temp. current output 2 |
Isolated, 4 to 20mA output , max. load 500Ω |
|
|
Current output accuracy |
±0.05 mA |
|
|
RS485 |
Mod bus RTU protocol |
|
|
Baud rate |
9600/19200/38400 |
|
|
Maximum relay contacts capacity |
5A/250VAC,5A/30VDC |
|
|
Cleaning setting |
ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours |
|
|
One multi function relay |
clean/period alarm/error alarm |
|
|
Relay delay |
0-120 seconds |
|
|
Data logging capacity |
500,000 |
|
|
Language selection |
English/traditional Chinese/simplified Chinese |
|
|
Waterproof grade |
IP65 |
|
|
Power supply |
From 90 to 260 VAC, power consumption < 5 watts |
|
|
Installation |
panel/wall/pipe installation |
|
|
Weight |
0.85Kg |
|
Application
Package
To better ensure the safety of pH TDS ORP salinity water analysis equipment multi-parameter water quality analyzer, professional,environmentally friendly, convenient and efficient packaging services will be provided.
