Quick Details
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Remax
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3300*2200*2000mm
-
Weight (KG):
-
1200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Servo motor and driver:
-
YASKAWA
-
Control system:
-
OSAI
-
Programming Software:
-
AlphaCAM
-
Linear guide:
-
THK or Hiwin
-
Maximum lifting weights:
-
20T
-
Ball Screw:
-
ROCK
-
Spindle:
-
9.0kw Italy
-
Inverter:
-
Delta
-
Color:
-
according your need
Quick Details
-
Working Table Size(mm):
-
1500×3000
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Remax
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3300*2200*2000mm
-
Weight (KG):
-
1200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Servo motor and driver:
-
YASKAWA
-
Control system:
-
OSAI
-
Programming Software:
-
AlphaCAM
-
Linear guide:
-
THK or Hiwin
-
Maximum lifting weights:
-
20T
-
Ball Screw:
-
ROCK
-
Spindle:
-
9.0kw Italy
-
Inverter:
-
Delta
-
Color:
-
according your need

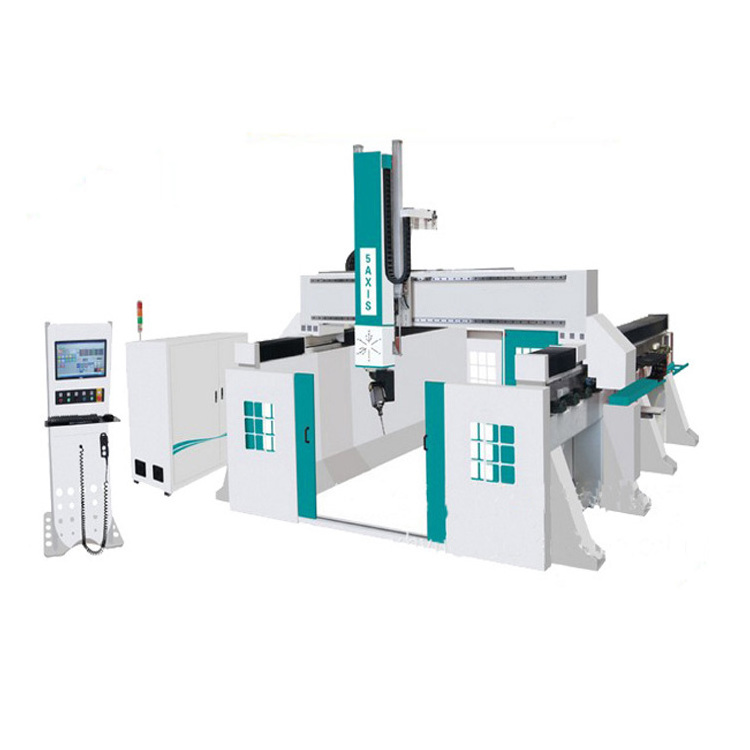

Remax-1530 5 axis cnc router wood working machine price
Main Features
1. Italy OSAI controlling system, steady performace, powerful function,easy operation
2. Well-known Italy 9.0kw air cooling spindle, high precision, long life time, steady working
3. Well-designed whole cast steel lathe bed, well welded, no distortion for whole structure.
4. Adopt Japan THK linear square guide rail system, working steadily, high precision, long life time.
5. Movable table structure, working more steadily than that with moving gantry, especially while
engraving waved plate
6. Diversified controlling. It can control working speed, air line speed and cutter setting speed
separately which improves both processing quality and efficiency.
Applicable Industries
1.Mould industry: metalloid mould, especially suitable for automotive foam mould, wooden train/ship/car model and so on
2. Instrument Industry: Shaping large instrument and engraving on three-dimensional surface
3. Furniture industry:wood furniture,wooden jewelry box, wood carvings
Parameter
| Model | Remax-1530 5axis |
| X working area | 1500mm |
| Y working area | 30 00mm |
| Z working area | 1000mm |
| C traveling | ± 2 1 0 ° |
| A traveling | ± 1 8 0 ° |
| Supplier for Double pendulum head | 9.0 KW Italian GC |
| Spindle rotating speeds | 6000-24000RPM |
| Servo Motor brand | YASKAVA |
| Table size (MM) |
According to your need ,we supply the design , you can book in your side |
| Control system | OSAI system |
| Total weight | 12T |
| Total Power(kw) | 14. 4KW |
| Voltage | AC380V/50HZ |
| Maximum lifting weights | 20T |
| File exchange(USB) | G code |
| Maximum speed:X Axis | 85m/min |
| Y Axis | 85m/min |
| Z Axis | 45m/min |
| A/C Axis |
25RPM(900 0degrees /min) |
| Mix feeding speed |
X/Y/Z=40m/min, A/C=20RPM(7200degrees /min) |
| Guarantee time | two year of guarantee in case of non-human damage |
sample
Packaging Details
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information.
