Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Growatt
-
Model Number:
-
SPF 6000 ES Plus
-
Input Voltage:
-
48V
-
Output Voltage:
-
230V
-
Output Current:
-
80A
-
Output Frequency:
-
50/60HZ
-
Size:
-
460/395/132mm
-
Certificate:
-
CE(IEC/EN62109-1,-2),ROHS2.0
-
Warranty:
-
5 years
-
Weight:
-
15kg
-
Product name:
-

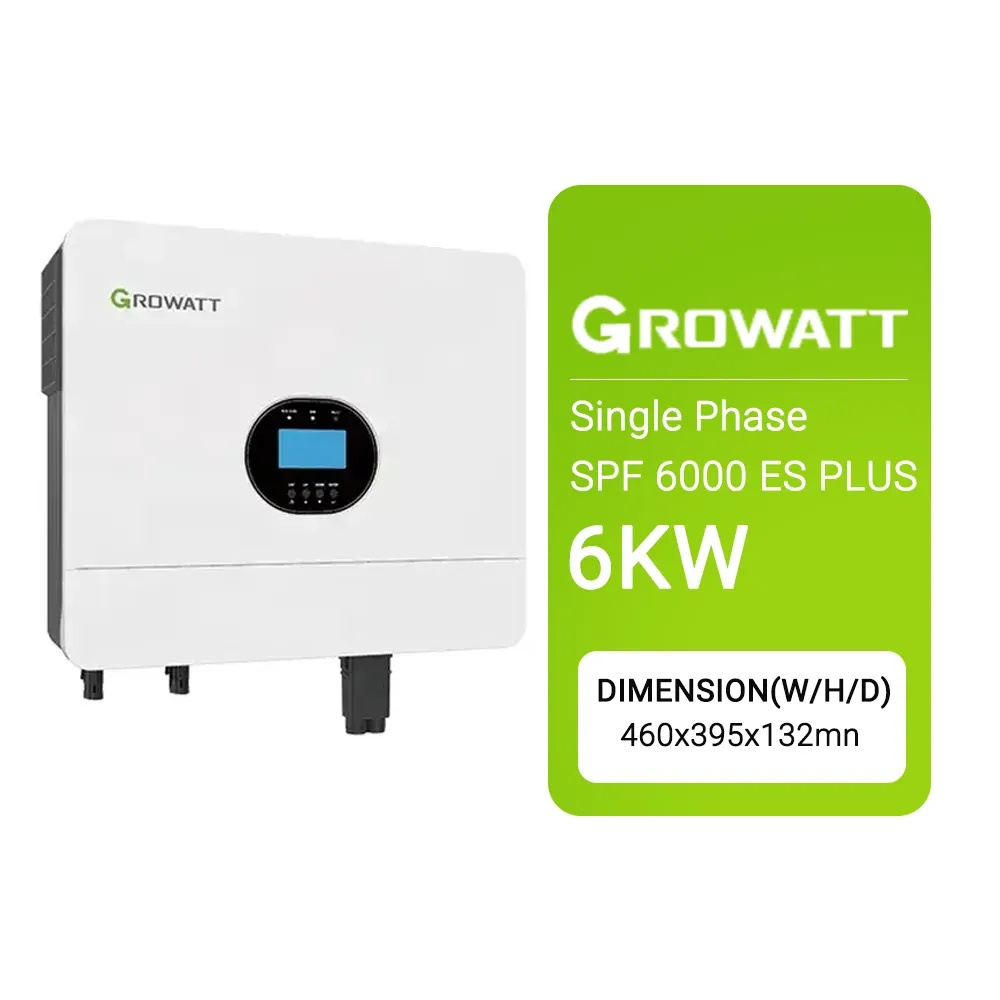

Growatt SPF 6000 ES Plus
-
Maximum PV Array Power:
-
8000W
-
Battery Voltage:
-
48V DC
-
Battery type:
-
Lithium/Lead-acid
-
MPPT voltage range:
-
120VDC ~ 450VDC
-
Number of Independent MPP Trackers:
-
2
-
Strings Per MPP Tracker:
-
1
-
Max. input current per MPP tracker:
-
16A
-
Parallel Capability:
-
Yes, 6 units maximum
-
Output waveform:
-
Pure Shine Wave
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
99.%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Growatt
-
Model Number:
-
SPF 6000 ES Plus
-
Input Voltage:
-
48V
-
Output Voltage:
-
230V
-
Output Current:
-
80A
-
Output Frequency:
-
50/60HZ
-
Size:
-
460/395/132mm
-
Certificate:
-
CE(IEC/EN62109-1,-2),ROHS2.0
-
Warranty:
-
5 years
-
Weight:
-
15kg
-
Product name:
-
Growatt SPF 6000 ES Plus
-
Maximum PV Array Power:
-
8000W
-
Battery Voltage:
-
48V DC
-
Battery type:
-
Lithium/Lead-acid
-
MPPT voltage range:
-
120VDC ~ 450VDC
-
Number of Independent MPP Trackers:
-
2
-
Strings Per MPP Tracker:
-
1
-
Max. input current per MPP tracker:
-
16A
-
Parallel Capability:
-
Yes, 6 units maximum
-
Output waveform:
-
Pure Shine Wave
Product Description
Product Parameters
|
Datasheet
|
SPF6000ESPlus
|
|
|
Battery Voltage
|
48VDC
|
|
|
Battery Type
|
Lithium/Lead-acid
|
|
|
Inverter Output
|
|
|
|
Rated Power
|
6000VA/6000W
|
|
|
Parallel Capability
|
Yes, 6 units maximum
|
|
|
AC Voltage Regulation
(Battery Mode) |
230VAC ± 5% @ 50/60Hz
|
|
|
Surge Power
|
12000VA
|
|
|
Efficiency (Peak)
|
93%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer Time
|
10ms typical ，20ms Max
|
|
|
Solar Charger
|
|
|
|
Maximum PV Array Power
|
8000W
|
|
|
MPPT Range @ Operating Voltage
|
120VDC ~ 450VDC
|
|
|
Number of Independent MPP Trackers/
Strings Per MPP Tracker |
2/1
|
|
|
Max. input current per MPP tracker
|
16A
|
|
|
Maximum PV Array Open
Circuit Voltage |
500VDC
|
|
|
Maximum Solar Charge Current
AC Charger |
100A
|
|
|
Charge Current
|
80A
|
|
|
AC Input Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
|
|
Frequency Range
Physical Protection Degree |
50Hz/60Hz (Auto sensing)
IP20
|
|
|
Dimension (W/H/D)
|
460/395/132mm
|
|
|
Net Weight (kgs)
Operating Environment |
13.5
|
|
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Altitude
|
<2000m
|
|
|
Operating Temperature
|
0°C - 55°C
|
|
|
Storage Temperature
|
- 15°C - 60°C
|
|
