Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CARE
-
Year:
-
Newest
-
Power (kW):
-
7.5
-
Weight (KG):
-
1900
-
Machine Type:
-
Pipe and Tube Bending Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Online support, Video technical support
-
Raw Material:
-
PIPE
-
Power:
-
Hydraulic
-
Control:
-
Single-chip computer
-
Head:
-
Two heads
-
Material:
-
All steel pipes
-
Type:
-
Hydraulic Bending
-
double head pipe/tube bending machine:
-
double head pipe/tube bending machine
Quick Details
-
Bending Radius (mm):
-
38 - 200
-
Max. Bending Angle (Deg):
-
180
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CARE
-
Year:
-
Newest
-
Power (kW):
-
7.5
-
Weight (KG):
-
1900
-
Machine Type:
-
Pipe and Tube Bending Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Online support, Video technical support
-
Raw Material:
-
PIPE
-
Power:
-
Hydraulic
-
Control:
-
Single-chip computer
-
Head:
-
Two heads
-
Material:
-
All steel pipes
-
Type:
-
Hydraulic Bending
-
double head pipe/tube bending machine:
-
double head pipe/tube bending machine

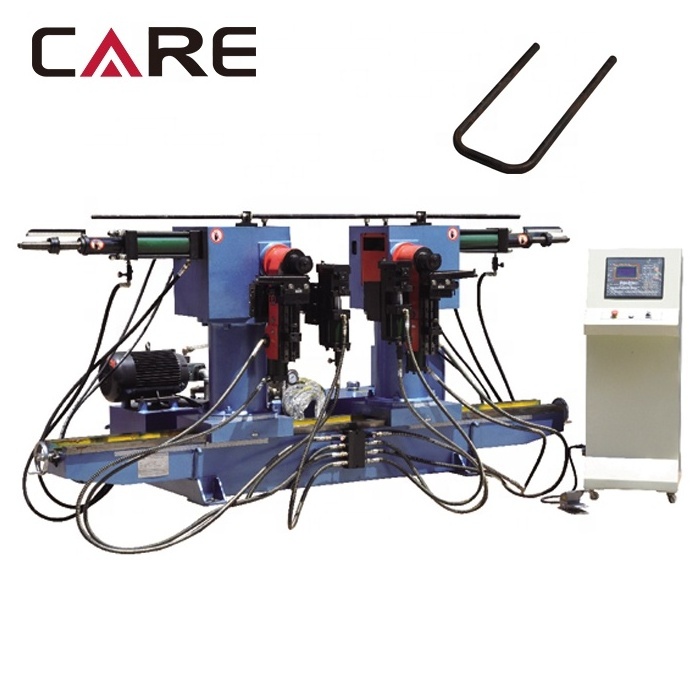

SW50A Rotary double head pipe/tube bending machine
Main specification:
Uses the single-chip computer control,operates easily, performance stable, double-end curving synchronization shapes work piece of the bended pipe opens, the angle is precise, Double-end curving angle may adjust from 0-180 degree, but must consider the material-taking problem. May establish two ases different angles to be curving .
1. According to different base frame, it can be divided into standard type and rotary type.
2. Hand-operated, auto, semi-circulation and other functions can be chosen.
3. Single-chip computer control, imported electric elements. The program can be stored forever, no losing.
4. Foot switch has auto start, emergency stop, emergency-stop and going on function, it has high safety.
5. Double head can be used separately.
6. Three pieces can be bended one times.
Main Technical Parameter
|
Item Model |
SW38A |
SW50A |
|
Main Power(Kw) |
5.5 |
7.5 |
|
Max. Steel, Tube O.D.(mm) |
Φ38x1.8t |
Φ50x2.0t |
|
Max. Stainless Steel, Tube O.D.(mm) |
Φ32x1.8 |
Φ48x2.5 |
|
Max. Bending Radius (mm) |
38-200 |
50-250 |
|
Center Distance between Two Shafts (mm) |
170-1700 |
170-1700 |
|
Max. Bending Angle (°) |
185 |
185 |
|
Bending-Pipes quantity once |
Φ22x2 |
Φ25x2 |
|
Motor power for Hydraulic (Mpa) |
14 |
14 |
|
Gross Weight |
1500 |
2500 |
|
Machine Dimension(cm) |
270x126x132 |
350x150x190 |
Machine photo
Bending molds
Pipe samples
More pipes bending can be customized
To know more information, please contact us.
