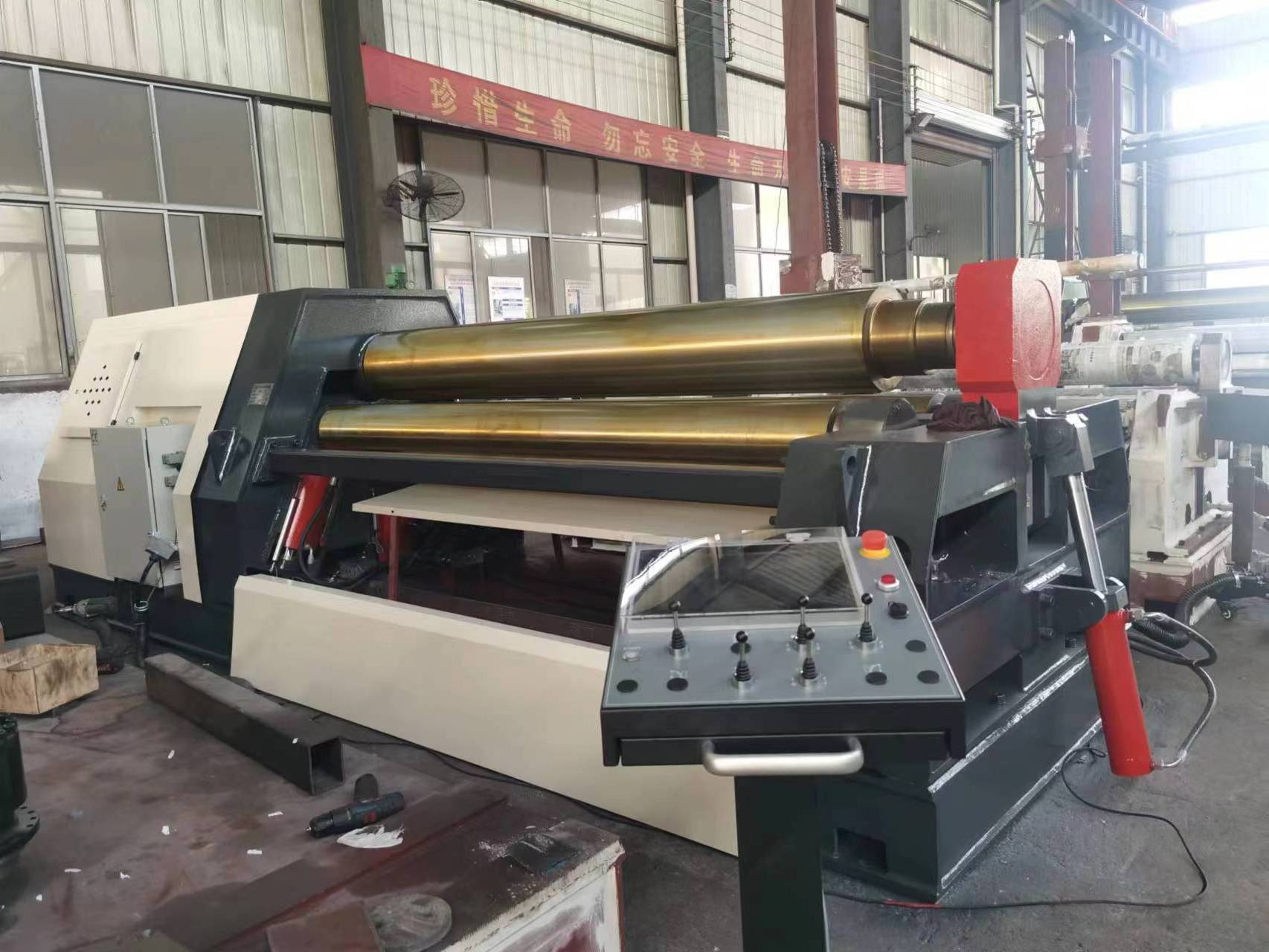

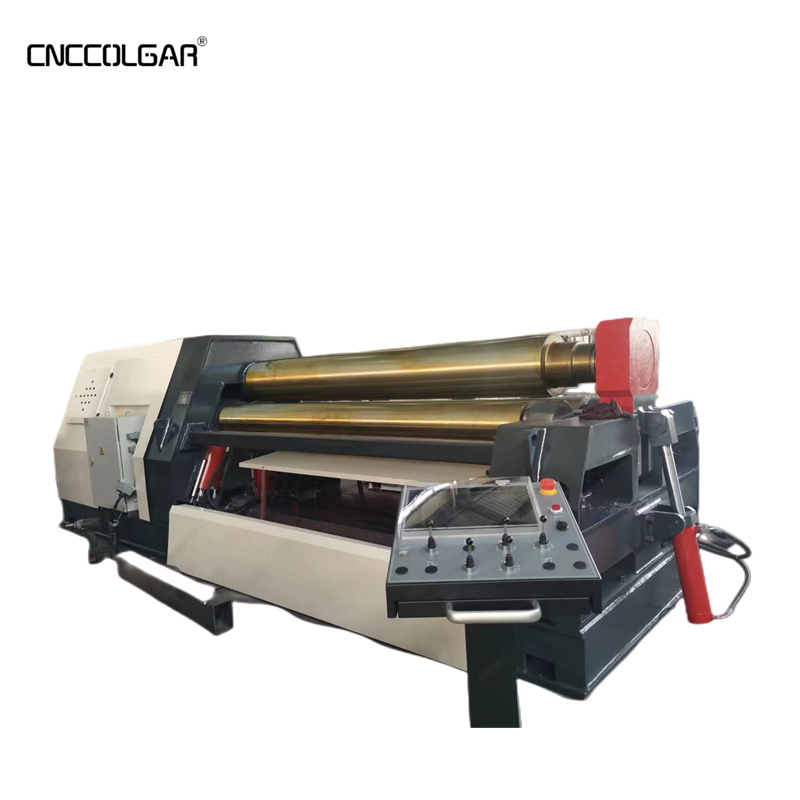

CNCColgar 4 roll bending machine sheet metal rolling machine

CNCColgar 4 roll bending machine sheet metal rolling machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

≥5 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Rolling Speed (m/min):: 1 - 4

Warranty of core components:: 24 months

Place of Origin:: Anhui, China

Brand Name:: Colgar

Year:: 2024

Weight (KG):: 1000 KG

Motor Power (kw):: 11 kw

Certification:: ce

After-sales Service Provided:: Video technical support

After Warranty Service:: Field maintenance and repair service

Raw Material:: Sheet

Application:: Steel Plate Sheet Rolling

Product name:: Three Roller Bending Machine

Usage:: Metal Sheet Rolling Bending

Type:: Hydraulic Bending Tools

Keyword:: Stainless Steel Plate Rolling Machine

Function:: Roll Bending Plate

Quick Details

Max. Working Length (mm):: 2500 mm

Max. Plate Thickness (mm):: 12 mm

No. of Roller:: 3

Rolling Speed (m/min):: 1 - 4

Warranty of core components:: 24 months

Place of Origin:: Anhui, China

Brand Name:: Colgar

Year:: 2024

Weight (KG):: 1000 KG

Motor Power (kw):: 11 kw

Certification:: ce

After-sales Service Provided:: Video technical support

After Warranty Service:: Field maintenance and repair service

Raw Material:: Sheet

Application:: Steel Plate Sheet Rolling

Product name:: Three Roller Bending Machine

Usage:: Metal Sheet Rolling Bending

Type:: Hydraulic Bending Tools

Keyword:: Stainless Steel Plate Rolling Machine

Function:: Roll Bending Plate

Products Description

The Features:

1, High Precision end Pre-bending The straight enge length can be set freely, the upper roller press to pre-bend NC Control, high productivity.Parameters are controlled by NC, easy for operation, improve the productivity greatly 2, Good accuracy The upper roller is like a drum, the lower rollers assorted with it through support rollers. Bend continuously, can roll ideal products from thin to thick plates widely 3, Safety The lower rollers are fixed, the upper roller move vertically and horizontally. The job does not work with the working rollers. Complete structure, simple foundation, convenient movement. The machines has unitary basement, does not need earth bolts, has simple foundation

Main parts:

1.Working rollers: cast steel ingot(chemical composition analysis):check performance-forging roughcast-forging annealing-UT flaw-roughing(chemical tests)-heat treatment(hardening and tempering)-UT flaw-semi finishing-finishing-MT.

2..Large forigings: cylinder body, gear, gear shaft forging roughcast-surface imspection-roughing-UT flaw-UT flwa detector hear treatmenat-finishing semi-finishing-MT.

3.Welding structure: racks, chassis, wheel box plate into the factory(chemical compositon analysis, mechanical
test)-pretreatment-for sheet metal cutting-welding-seam UT or RT flaw-annealing treatment-roughing-finishing-vibration
destressing-hot blasting-finishing 5-4 major parts of the manufacturing process.

The Technical Parameters

Discoloration due to quenching treatment of fuselage and rollers, Not easily deformed

Lead time

15 days to 40 days

Payment Method

30% T/T in advance, the balance paid before shipping
irrevocable L/C at sight

FAQ&Contact us

Q:How to choose a rolling machine?

A:Please tell us the following information in detail:

- Material of plate:

-Max thickness:

-Max plate width:

-If possible: you can specify the model;

Q:Where is your factory? How can I get there?

A:You can fly to NanJing LuKou airport directly, we will pick you up in the airport. All our customers, both inland and abroad, warmly welcome to visit us!

Q:How do you ensure quality in the factory?

A:Quality culture.:We always attach great importance to quality control from the beginning to the end. Our factory has obtained ISO, CE certification.
