Fast Supply DBM110 Boring Machines High-Efficiency Engine Block Horizontal Boring Machine
Fast Supply DBM110 Boring Machines High-Efficiency Engine Block Horizontal Boring Machine
Fast Supply DBM110 Boring Machines High-Efficiency Engine Block Horizontal Boring Machine
Fast Supply DBM110 Boring Machines High-Efficiency Engine Block Horizontal Boring Machine
Fast Supply DBM110 Boring Machines High-Efficiency Engine Block Horizontal Boring Machine
Fast Supply DBM110 Boring Machines High-Efficiency Engine Block Horizontal Boring Machine
Fast Supply DBM110 Boring Machines High-Efficiency Engine Block Horizontal Boring Machine
Fast Supply DBM110 Boring Machines High-Efficiency Engine Block Horizontal Boring Machine

Fast Supply DBM110 Boring Machines High-Efficiency Engine Block Horizontal Boring Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $233000
≥3 Sets
US $221000
≥5 Sets
US $210000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Table Travel (Z) (mm):
1500 mm
Max. Table Load(kg):
8000
Travel (W-axis) (mm):
550 mm
Positioning Accuracy (X axis) mm:
0.015
Positioning Accuracy (Y axis) mm:
0.015
Positioning Accuracy (Z axis) mm:
0.015
Range of Spindle Speed(r.p.m):
2500 r.p.m
Spindle Motor Power(kW):
22/26
Production Capacity:
40 units/month
Place of Origin:
Jiangsu, China
Brand Name:
GS
Voltage:
380V/50Hz/3Ph
Dimension(L*W*H):
6425*5605*4800 mm
Weight (T):
30.5 T
Product type:
Fast Supply DBM110 Boring Machines High-Efficiency Engine Block
Functions:
boring, milling, drilling, turning and other machining
X-axis travel (standard):
2500mm
Y-axis travel (standard):
1600mm
Z-axis travel (standard):
1500mm
Spinde diameter:
110 mm
T-shot:
22H7*160*7
Max. load on worktable:
8000 kg
Spindle motor:
Fanuc 22/26 kw
Max.torque of spindle:
1155/1637 Nm

Quick Details

Table Size (mm):
1400x1600
Table Travel (X) (mm):
2500 mm
Table Travel (Y) (mm):
1600 mm
Table Travel (Z) (mm):
1500 mm
Max. Table Load(kg):
8000
Travel (W-axis) (mm):
550 mm
Positioning Accuracy (X axis) mm:
0.015
Positioning Accuracy (Y axis) mm:
0.015
Positioning Accuracy (Z axis) mm:
0.015
Range of Spindle Speed(r.p.m):
2500 r.p.m
Spindle Motor Power(kW):
22/26
Production Capacity:
40 units/month
Place of Origin:
Jiangsu, China
Brand Name:
GS
Voltage:
380V/50Hz/3Ph
Dimension(L*W*H):
6425*5605*4800 mm
Weight (T):
30.5 T
Product type:
Fast Supply DBM110 Boring Machines High-Efficiency Engine Block
Functions:
boring, milling, drilling, turning and other machining
X-axis travel (standard):
2500mm
Y-axis travel (standard):
1600mm
Z-axis travel (standard):
1500mm
Spinde diameter:
110 mm
T-shot:
22H7*160*7
Max. load on worktable:
8000 kg
Spindle motor:
Fanuc 22/26 kw
Max.torque of spindle:
1155/1637 Nm
Product Overview

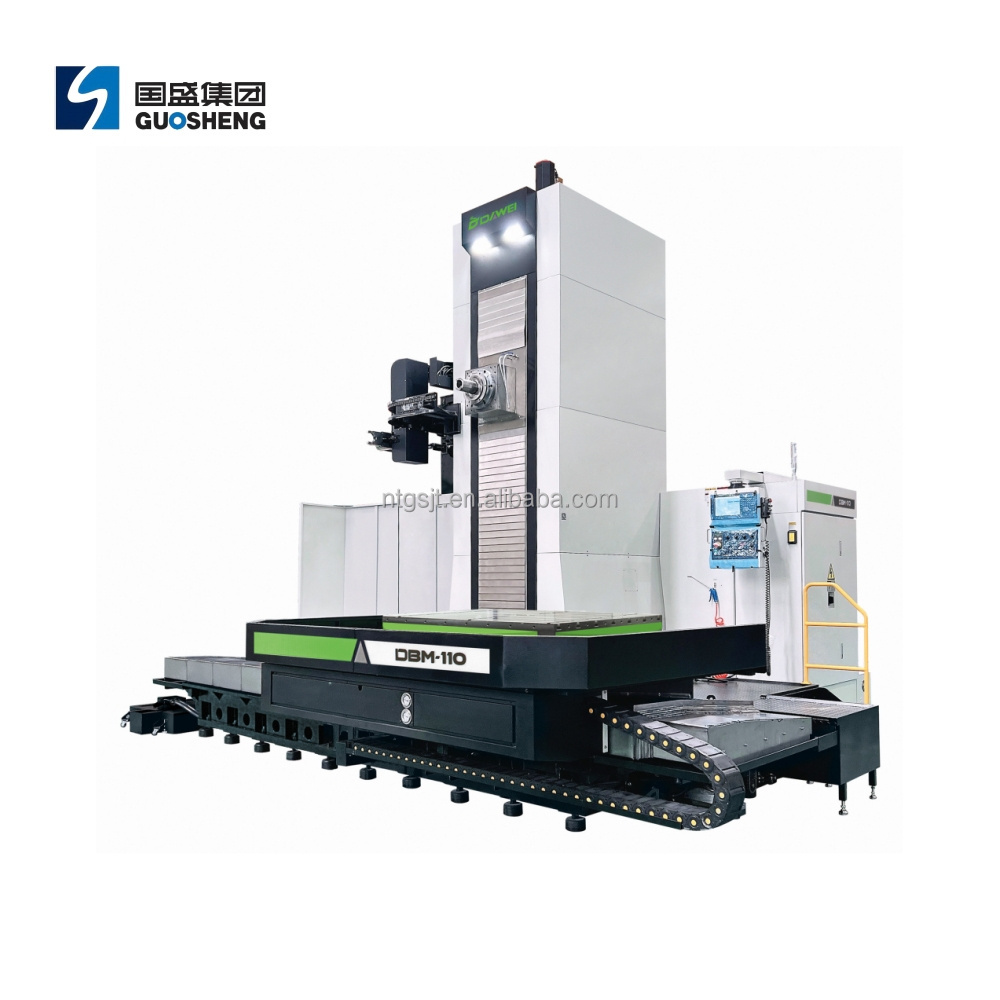

Fast Supply DBM110 Boring Machines High-Efficiency Engine Block Horizontal Boring Machine

Advanced processing and design concepts embed the main shaft box in the column, using the middle hanging box type structure mobile heavy cutting structure, column guide adopts four heavy load linear roller guide first two after two high rigidity design, no damping friction coefficient, good rigidity, high precision, long life, perfect to achieve high efficiency goals.
FEATURES AT A GLANCE
1. X, Y, Z axis adopts heavy-duty roller linear guide, strong rigidity, good dynamic accuracy.
2. High precision C3 class ball screw and heavy load P class roller linear slide rail, to ensure the axial and radial heavy cutting force.
3. Reliable automatic tool library, consisting of tool library and tool change arm, two-way tool library using the shortest path, the large size tool collision only need to consider the first installation(optional）.
Right elevation
Left elevation
Right elevation
PRODUCT SPECIFICATIONS
Model
Unit
DBM-110
Travel
X-axis travel
(standard)
mm
2500
X-axis travel
(optional)
mm
3000
Y-axis travel
(standard)
mm
1600
Y-axis travel
(optional)
mm
2000
Z-axis travel
(standard)
mm
1500
W-axis travel
(standard)
mm
550
Spindle
Spindle center to worktable surface
mm
140~1740（2140）
Spindle nose to worktable center
mm
125~1925
Spinde diameter
mm
110
Spindle taper
BT50
Rotating spindle speed
(standard)
rpm/min
35~2500
Rotating spindle speed
(optional)
rpm/min
35~3500
Number of steps of rotating speed of spindle
2 Steps
Spindle drive mode
Belt+Gearbox
Spindle motor
Kw
Fanuc 22/26
Max.torque of spindle
Nm
1155/1840
Worktable
Table size
mm
1400*1600
Division angle
deg
0.001°
Reference aperture
mm
Φ140H7
Max. load on worktable
kg
8000
T-shot
mm
22H7*160*9
Indexing speed
r/min
0.01
Precision
Positioning accuracy of rotary table
arc-sec
10″
Repeated Positioning accuracy of rotary table
arc-sec
4″
Positioning accuracy
mm
0.015
Repeated Positioning accuracy
mm
0.01
Drive Mode
XYZ-axis
Direct-drive
W-axis
Belt-drive
Y-axis counterweight
Hyd.type
Feed speed
Cutting speed X/Y/Z/W
m/min
10/10/10/6
Rapid traverse speed X/Y/Z/W
m/min
10/10/10/8
Configuration of motor
X_axis motor
aiF30/4000
Y_axis motor
aiF40/3000
Z_axis motor
aiF30/4000
Spindle motor
aiF30/4000
B_axis motor
aiF22/8000
Tool magazine（Optional）
Capacity of tool magazine
40
Max. tool weight
kg
25
Max. tool length
mm
500
Max. tool diameter (No adjacent tool)
mm
Φ125/250
Others
Air pressure
kgf/cm²
6
Voltage
kva
65
Tank Capacity
L
480
Floor area
(length*width*height)
mm
7250*6000*4800
Weight
kg
30500
Details Images
Middle hanging structure
Meehanna castings, integrated casting molding, wear resistance by stress relief treatment, so that it can achieve high shock resistance, its shock absorption capacity is higher than ordinary cast iron, improve the stability of the machine tool.
Heavy cutting post mechanism
Adopts the mobile heavy cutting structure of the hanging box, and adopts four heavy-duty linear roller guide rails for the column
to ensure high rigidity and precision.
Exquisite scraping process
Exquisite scraping technology, eliminate the stress of the machine tool, make the surface contact into point contact, increase the stability of the machine tool, reduce the machine tool mechanical movement noise
The rotary table is driven by worm gear
The worm gear drive is used in the mechanical transmission part ofthe slewing table. Compact structure, stable transmission, vibration.shock and noise are small.
High precision spindle
The main shaft drive adopts two gear speed, wide range of speed, high spindle speed, high output torque, the highest speed 2500rpm, meet the low speed and large cutting amount of face milling conditions.
Reliable automated tool magazine（optional）
Reliable automatic tool library, consisting of tool library and tool change arm, two-way tool library using the shortest path, the large size tool collision only need to consider the first installation.
Standard configuration
