Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
Leadcrete
-
Model Number:
-
BW120/3
-
Place of Origin:
-
Henan, China
-
Cable Length:
-
Standard
-
Outlet Size:
-
Standard
-
Power:
-
5.5KW, 5.5KW
-
machine type:
-
electric duplex piston mud pump
-
Driving force:
-
hydraulic motor or electric or diesel
-
Max flow:
-
120l/min
-
Max pressure:
-
3Mpa
-
Cylinder diameter:
-
70mm
-
Stroke:
-
80mm
-
Usage:
-
duplex mud pump
-
Fuel:
-
Electric
Quick Details
-
Application:
-
mud pump
-
Pressure:
-
Low Pressure
-
Voltage:
-
380V
-
Warranty:
-
2 years
-
Brand Name:
-
Leadcrete
-
Model Number:
-
BW120/3
-
Place of Origin:
-
Henan, China
-
Cable Length:
-
Standard
-
Outlet Size:
-
Standard
-
Power:
-
5.5KW, 5.5KW
-
machine type:
-
electric duplex piston mud pump
-
Driving force:
-
hydraulic motor or electric or diesel
-
Max flow:
-
120l/min
-
Max pressure:
-
3Mpa
-
Cylinder diameter:
-
70mm
-
Stroke:
-
80mm
-
Usage:
-
duplex mud pump
-
Fuel:
-
Electric

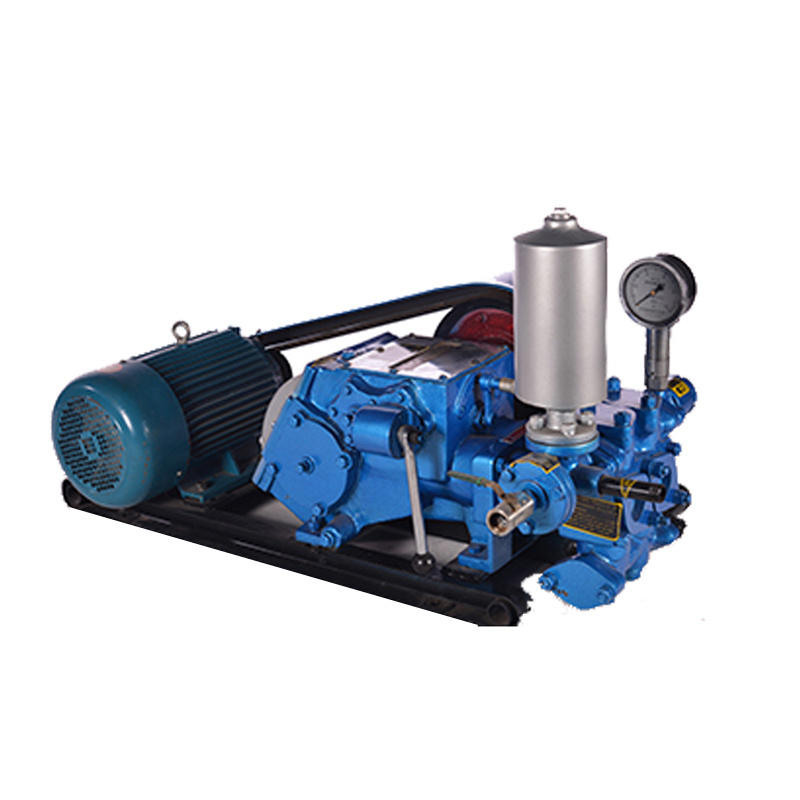

BW120 3 electric duplex piston mud pump
BW series mud pump is widely used in mining, drilling, coal, railway, highway, water conservancy and hydropower, bridges, high-rise buildings, foundation reinforcement works.
Advanced product design, reasonable structure, high pressure, flow, multi-file variable, energy saving, light volume, efficiency, plant life, safe operation, easy maintenance.
Data of BW120/3 electric duplex piston mud pump
|
Model |
BW120/3 mud pump |
|
Type |
Horizontal double cylinder reciprocating single acting piston pump |
|
Cylinder diameter (mm) |
70 |
|
Stroke (mm) |
80 |
|
Pump speed (times/min) |
207 145 |
|
Flow (l/min) |
120 105 |
|
Pressure (Mpa) |
1.0 3.0 |
|
Power (Kw) |
5.5 |
|
Shape size (mm) |
675*540*620 |
|
Weight (kg) |
120 (without power) |
Main Features of electric duplex piston mud pump
Compact structure, light weight, small volume, beautiful appearance, is driven by a hydraulic motor, electric power or diesel engine.
BW series slurry pump is horizontal triplex grout pump with high stability and high pressure.
Mud pump has gear shift to adjust the flow, large output capacity, simple operation.
High quality pump parts, less wearing parts, long service life, low construction cost.
It has fast suction-discharge speed, high pump efficiency.
Mud pump has less noise and dust, environmental operation.
