- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
M3
-
Voltage:
-
220V/50HZ(by order)
-
Power:
-
5kw
-
Dimension(L*W*H):
-
1100*500*1750mm(by order)
-
Weight:
-
300 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Distillation
-
Material:
-
Borosilicate Glass3.3
-
Certification:
-
ISO9001/CE
-
Marketing Type:
-
Hot Product 2022
Quick Details
-
Warranty of core components:
-
12 Months
-
Core Components:
-
other
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
M3
-
Voltage:
-
220V/50HZ(by order)
-
Power:
-
5kw
-
Dimension(L*W*H):
-
1100*500*1750mm(by order)
-
Weight:
-
300 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Distillation
-
Material:
-
Borosilicate Glass3.3
-
Certification:
-
ISO9001/CE
-
Marketing Type:
-
Hot Product 2022

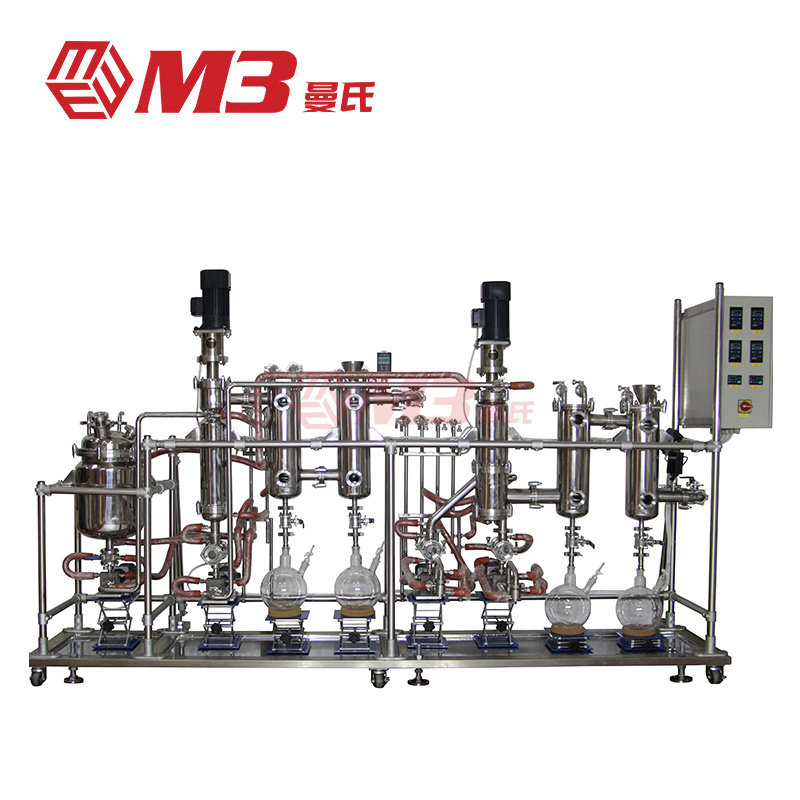

Molecular (wiped film) distillation is the best thermal separation machine for heat-sensitive material because it is the gentlest type, causing the least amount of thermal degradation of product. It is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules. M3 molecular distillation units are wildly used for purification of oils, such as cannabis/hemp oil, garlic oil, cod liver oil in chemical and pharmaceutical industries.
M3 molecular distillation units have three series (glassware, stainless steel or hybrid) with different throughput for your choices, from 0.5kg/hr up to 250kg/hr. In addition to the single stage systems, we also offer multi-stage systems to improve your working efficiency.
The whole molecular distillation system includes supporting chillers, heaters, vacuum pumps and all accessories. Some popular units are in stock at our USA warehouse.
Features:
1. The glass parts are made of high borosilicate 3.3 material, with excellent visibility;
2. The magnetic coupling seal can maintain a higher vacuum degree to ensure the evaporation effect;
3. Scraper film forming design, contacting material part take stainless steel 316L+PTFE;
4. The sealing ring is made of fluorine rubber or tetrafluoroethylene, suitable for different material applications;
5. The main evaporator have been designed with full jacket and full insulation to ensure material fluidity;
6. Multi-plan structure configuration to guarantee different material and different process requirements;
Working Principle:
Feed material is delivered from a feed flask into the main jacketed evaporator, having
heating frompei the jacket, and a diagonally slotted wiper mechanism forcing liquid around
and downward in a thin film on the inside. In the center of the body is a closely positioned
internal condenser, providing a short path for vapor molecules traveling from the heated
surface to the condenser surface. During the journey downward, lighter (lower boiling point)
fractions of the liquid begin to vaporize, move to the internal condenser and condense, falling
down as a liquid into a well that captures and separates the distilled liquid which flows into
the Distillate receiving flask. Heavier residue material (like chlorophyll, salts, sugars, heavy
wax) does not evaporate and instead travels the length of the main evaporator body and
flows into the Residue receiving flask.
|
Brand Name:
|
M3
|
|
Weight:
|
200-300kg
|
|
Voltage:
|
220V/50HZ(by order)
|
|
After-sales Service Provided:
|
Engineers available to service machinery overseas
|
|
Condition:
|
New
|
|
Type:
|
Distillation
|
|
Warranty:
|
12 Months
|
|
Dimension(L*W*H):
|
1100*500*1750mm(by order)
|
|
Material:
|
Borosilicate Glass3.3
|
|
Support Frame Material:
|
Stainless Steel
|
|
Feeding Rate:
|
1.5-3 L/H
|
|
Certification:
|
ISO9001/CE
|
|
Control system:
|
Siemens control system
|
|
Advantage:
|
Easy Operation High Efficiency
|
|
Application:
|
Distillation
|
|
Applicable Industries:
|
Food & Beverage Factory, Farms, Food Shop, Energy & Mining
|
M3 (Shanghai) Machinery Equipment Co., Ltd.
specializes in fruit and vegetable, dairy products, fruit and vegetable juice drinks, protein drinks, tea drinks, functional drinks, jam, fruit wine and vinegar, enzymes, enzyme products, probiotics and other fluids, purified water, special medical food, wine processing, biological medicine, daily chemical and other laboratory equipment, molecular distillation equipment, processing equipment, packaging filling equipment, warehousing and conveying equipment, turn key project of intelligent production line and other overall solutions.
Our's professional service scope: new plant planning, production line expansion, production process design, automatic production line equipment design, manufacturing, installation and commissioning, intelligent plant design and transformation, small and medium-sized pilot production line, laboratory equipment, laboratory general contracting, powder engineering, electromechanical engineering, technical training and after-sales service. The core team has more than 10 years of equipment manufacturing and engineering experience.
Our company has introduced foreign advanced technology and has been committed to the innovation and development of new products for many years. At present, the company enjoys a high reputation in the industry for its production line process, automation level and equipment stability, and its core technology and production capacity are at the international level. Customers are all over Europe, the United States, Southeast Asia, Japan and South Korea, Africa, the Middle East, South America and other regions and countries.
Adhering to the purpose of "providing users with high-quality products and services", M3 is committed to becoming a world-class intelligent equipment provider by helping customers create greater profits with high-quality products, professional technology and sincere service.
Q1:Are you manufacturer or trading company?
A1:We are the manufacture of fruit vegetable beverage processing line/packing machine and lab equipment over 15 years. We just not only sell machines, we sell our brand and service. Our factory is located in Shanghai, warmly welcome to visit us.
Q2:How far is your factory from the airport?
A2:Our factory is only 1 hour from Shanghai Pudong International Airport and Shanghai
Hongqiao Airport. We can pick you up from the airport.
Q3:Can I have custom made structure and size of machine to adopt to my workplace?
A3:Yes, sure. We can supply all the system including Processing Flow Design/Equipment
Layout Design/Building Design Direction/Equipment Mode Selection/Equipment
Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training.
Q4:Can you supply CE certificate of machines to us?
A4:Yes, we have them and we are glad to share with you.
Q5: Do you have technical support after we purchased your machines?
A5: We will arrange our professional technical to go aboard to your factory, they will help
you and teach you how to install and maintenance the machines which you
purchased. Or help you to fix machine when it has problems.
Q6:What kind of payment terms could you accept?
A6:We accept bank transfer and letter of credit. For other payment, please check with us.
Q7: Can you supply OEM services?
A7: Yes,we can.
Q8:How long is the delivery time?
A8:It depends on which machine you order. Standard machine commonly is 20-30 days.
Customized machine need longer time.
Q9: If we buy your machines, can you offer us wear-out spare pats?
A9: We provide our high quality machine 1 years guarantee, and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
