Quick Details
-
Type:
-
Electronic components
-
Certification:
-
CE ROHS ISO:9001 TUV
-
specifical structure:
-
Make working life longer
-
temperature resistance:
-
Reach 200℃ for short time
-
safe working temperature:
-
not exceed 150℃
-
Operating Temperature:
-
not exceed 150 ℃
-
Dissipation Power:
-
Qmax 29W(Th=27℃)
-
Supply Voltage:
-
Vmax 15.4V
-
Application:
-
Beauty industry, healthcare industry and so on.
-
Keyword:
-
Peltier cooler module thermoelectric peltier cooling cell
-
Product name:
-
Thermoelectric cooler peltier 100w
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Z-MAX
-
Model Number:
-
TEC1-12703AC
-
Type:
-
Electronic components
-
Certification:
-
CE ROHS ISO:9001 TUV
-
specifical structure:
-
Make working life longer
-
temperature resistance:
-
Reach 200℃ for short time
-
safe working temperature:
-
not exceed 150℃
-
Operating Temperature:
-
not exceed 150 ℃
-
Dissipation Power:
-
Qmax 29W(Th=27℃)
-
Supply Voltage:
-
Vmax 15.4V
-
Application:
-
Beauty industry, healthcare industry and so on.
-
Keyword:
-
Peltier cooler module thermoelectric peltier cooling cell
-
Product name:
-
Thermoelectric cooler peltier 100w
| Thermoelectric cooler Peltier 100w Tec1-12703AC heat exchanger mini coolers air conditioner Peltier |
High performance TEC
- Features
High reliability
: with the special GL structure,the reversal of polarity property of our products is 10 times better than conventional thermoelectric coolers. The reliability of coolers has been increased dramatically.
Higher temperature difference
: 2℃ temperature difference result in higher cooling performance and better quality.
High temperature resistance
: the 230℃ high temperature solder made the products possible to be used at higher temperature.

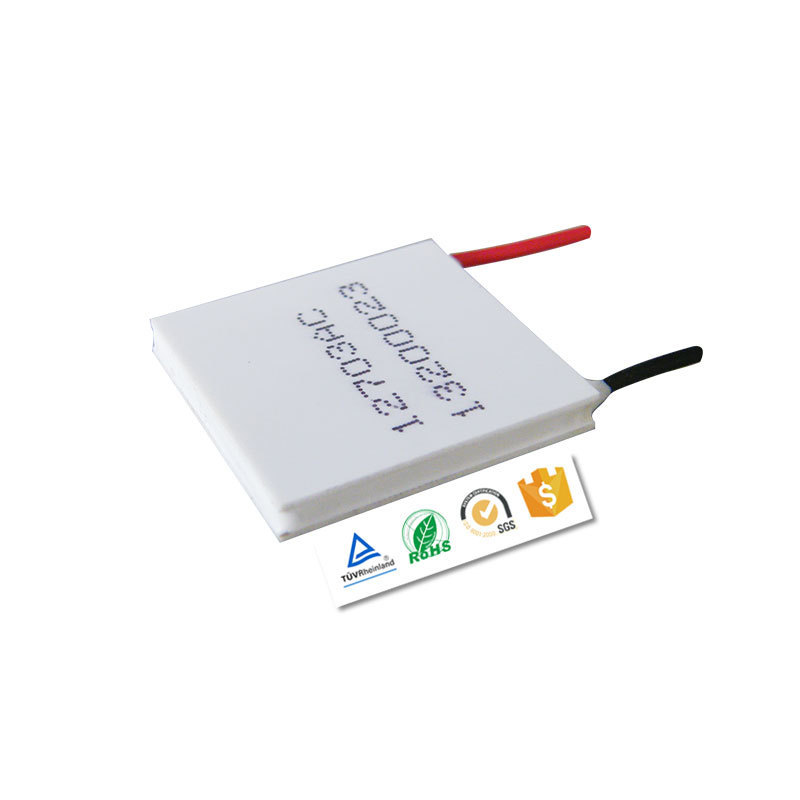

1. Product Pictures of Thermoelectric Peltier
2.Product Description of Thermoelectric peltier
| Model number | Imax(A) | Vmax(V) | Tmax(℃) | Qmax(W) | Tmax(℃) | Qmax(W) | Dimensions(mm) | ||
| Th=27℃ | Th=50℃ | L | W | H | |||||
| TEC1-1703NC | 3.5 | 2.1 | 68 | 3.9 | 75 | 4.3 | 15 | 15 | 4.70 |
| TEC1-3103NC | 3.8 | 7.0 | 7.7 | 20 | 20 | ||||
| TEC1-3503NC | 4.2 | 7.9 | 8.7 | 15 | 30 | ||||
| TEC1-7103NC | 8.6 | 16.0 | 17.8 | 30 | 30 | ||||
| TEC1-12703NC | 15.4 | 29.0 | 32.0 | 40 | 40 | ||||
| TEC1-12703AC | 15.4 | 29.0 | 32.0 | 40 | 40 | ||||
| TEC1-1704NC | 4.0 | 2.1 | 68 | 4.2 | 75 | 4.6 | 15 | 15 | 4.60 |
| TEC1-3104NC | 3.8 | 7.5 | 8.3 | 20 | 20 | ||||
| TEC1-3504NC | 4.2 | 8.4 | 9.2 | 15 | 30 | ||||
| TEC1-4904NC | 5.9 | 13.5 | 15.2 | 25 | 25 | ||||
| TEC1-7104NC | 8.6 | 19.6 | 21.6 | 30 | 30 | ||||
| TEC1-12704NC | 15.4 | 32.0 | 35.2 | 40 | 40 | ||||
| TEC1-12704AC | 15.4 | 32.0 | 35.2 | 40 | 40 | ||||
| TEC1-1705NC | 5.0 | 2.1 | 68 | 5.5 | 75 | 6.1 | 15 | 15 | 4.00 |
| TEC1-3105NC | 3.8 | 10.0 | 11.1 | 20 | 20 | ||||
| TEC1-3505NC | 4.2 | 11.0 | 12.3 | 15 | 30 | ||||
| TEC1-7105NC | 8.6 | 23.0 | 25.7 | 30 | 30 | ||||
| TEC1-12705NC | 15.4 | 41.0 | 45.8 | 40 | 40 | ||||
| TEC1-1706NC | 6.0 | 2.1 | 68 | 7.1 | 75 | 7.9 | 15 | 15 | 4.00 |
| TEC1-3106NC | 3.8 | 13.0 | 14.5 | 20 | 20 | ||||
| TEC1-3506NC | 4.2 | 14.5 | 16.1 | 15 | 30 | ||||
| TEC1-7106NC | 8.6 | 29.0 | 31.4 | 30 | 30 | ||||
| TEC1-12706NC | 15.4 | 53.0 | 59.3 | 40 | 40 | ||||
| TEC1-12706AC | 15.4 | 53.0 | 59.3 | 40 | 40 | ||||
| TEC1-1707NC | 7.0 | 2.1 | 68 | 7.5 | 75 | 8.3 | 15 | 15 | 3.70 |
| TEC1-3107NC | 3.8 | 13.6 | 15.1 | 20 | 20 | ||||
| TEC1-3507NC | 4.2 | 15.4 | 17.1 | 15 | 30 | ||||
| TEC1-7107NC | 8.6 | 31.0 | 34.6 | 30 | |||||
| TEC1-12707NC | 15.4 | 55.0 | 61.5 | 40 | 40 | ||||
| TEC1-12707AC | 15.4 | 55.0 | 61.5 | 40 | 40 | ||||
| TEC1-1708NC | 8.5 | 2.1 | 68 | 10.0 | 75 | 11.1 | 15 | 15 | 3.50 |
| TEC1-3108NC | 3.8 | 18.0 | 20.1 | 20 | 20 | ||||
| TEC1-3508NC | 4.2 | 20.0 | 22.3 | 30 | 15 | ||||
| TEC1-6308NC | 7.6 | 37.4 | 41.8 | 40 | 20 | ||||
| TEC1-7108NC | 8.6 | 42.0 | 46.9 | 30 | 30 | ||||
| TEC1-12708NC | 15.4 | 75.0 | 83.9 | 40 | 40 | ||||
| TEC1-12708AC | 15.4 | 75.0 | 83.9 | 40 | 40 | ||||
| TEC1-12710AC | 10.5 | 15.4 | 68 | 93.0 | 75 | 102.0 | 40 | 40 | 3.30 |
| TEC1-12712AC | 12.5 | 15.4 | 68 | 110.0 | 75.0 | 121.0 | 40 | 40 | 3.70 |
| TEC1-12715AC | 15.0 | 15.4 | 68 | 130.0 | 75.0 | 145.0 | 50 | 50 | 4.15 |
| TEC1-19903AC | 3.5 | 24.1 | 68 | 49.0 | 75.0 | 53.0 | 40 | 40 | 4.70 |
| TEC1-19904AC | 4.0 | 24.1 | 68 | 55.7 | 75.0 | 61.2 | 40 | 40 | 4.60 |
| TEC1-19906AC | 6.0 | 24.1 | 68 | 83.5 | 75.0 | 91.9 | 40 | 40 | 4.00 |
| TEC1-19908AC | 8.5 | 24.1 | 68 | 118.0 | 75.0 | 130.0 | 40 | 40 | 3.50 |
| TEC1-19910AC | 10.5 | 24.1 | 68 | 148.0 | 75.0 | 163.0 | 40 | 40 | 3.30 |
| TEC1-19913AC | 13.0 | 24.1 | 68 | 200.0 | 75.0 | 224.0 | 40 | 40 | 3.40 |
| TES1-3102NC | 2.0 | 3.8 | 68 | 3.7 | 75 | 4.0 | 15 | 15 | 4.8 |
| TES1-7102NC | 8.6 | 8.5 | 9.4 | 20 | 20 | ||||
| TES1-12702NC | 15.4 | 15.2 | 16.9 | 30 | 30 | ||||
| TES1-12702AC | 15.4 | 15.2 | 16.9 | 30 | 30 | ||||
| TES1-3103NC | 3.0 | 3.8 | 68 | 6.5 | 75 | 7.2 | 15 | 15 | 3.9 |
| TES1-4903NC | 6.0 | 10.3 | 11.3 | 20 | 20 | ||||
| TES1-7103NC | 3.0 | 8.6 | 15.0 | 16.7 | 20 | 20 | |||
| TES1-12703NC | 15.4 | 27.0 | 30.1 | 30 | 30 | ||||
| TES1-12703AC | 15.4 | 27.0 | 30.1 | 30 | 30 | ||||
| TES1-3104NC | 3.9 | 3.8 | 68 | 8.1 | 75 | 8.8 | 15 | 15 | 3.7 |
| TES1-7104NC | 8.6 | 18.7 | 21.8 | 20 | 20 | ||||
| TES1-12704NC | 15.4 | 33.4 | 37.3 | 30 | 30 | ||||
| TES1-12704AC | 15.4 | 33.4 | 37.3 | 30 | 30 | ||||
| TES1-3106NC | 6.0 | 3.8 | 68 | 12.2 | 75 | 13.6 | 15 | 15 | 3.2 |
| TES1-7106NC | 8.6 | 27.9 | 31.2 | 20 | 20 | ||||
| TES1-12706NC | 15.4 | 50.5 | 56.5 | 30 | 30 | ||||
| TES1-12706AC | 15.4 | 50.5 | 56.5 | 30 | 30 | ||||
Application
GAS Analyzers, Photonic and medical systems, CPU cooler and scientific instrument.
Calibration Equipment, Air Conditioner, PCR.
Wine Shelf, Infrared Sensor, Communication base station.
