Quick Details
-
Product name:
-
negative pressure weighing booth
-
Application:
-
100 Lab / Laboratory Clean Room
-
Function:
-
Clean Work Room
-
Keyword:
-
Cleanliness
-
Material:
-
Stainless Steel 304
-
Type:
-
Clean Room Booth
Quick Details
-
Weight (KG):
-
150
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
oudelong
-
Product name:
-
negative pressure weighing booth
-
Application:
-
100 Lab / Laboratory Clean Room
-
Function:
-
Clean Work Room
-
Keyword:
-
Cleanliness
-
Material:
-
Stainless Steel 304
-
Type:
-
Clean Room Booth
Products Description
●

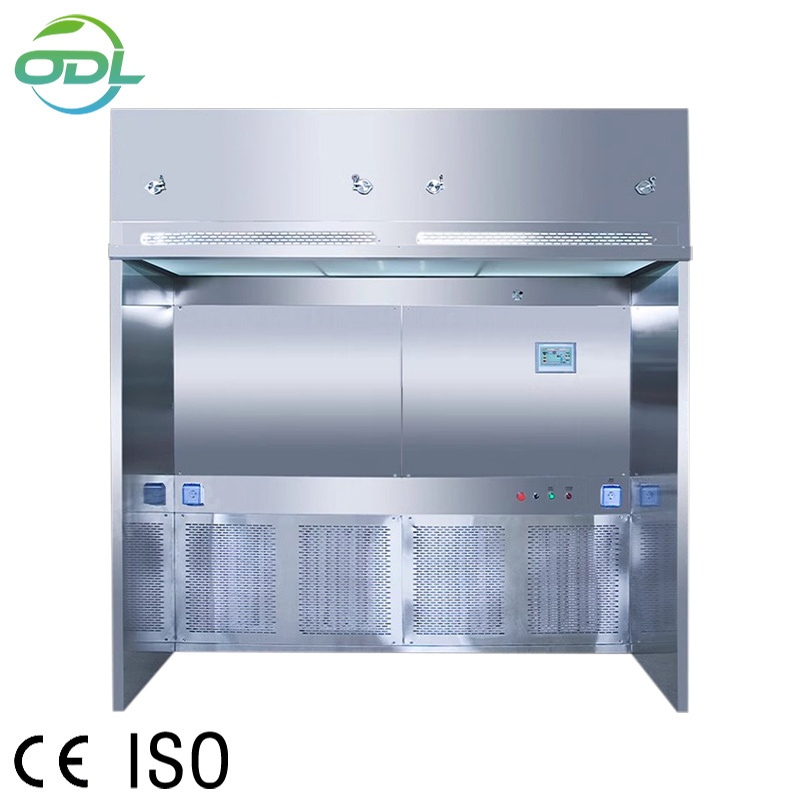

This equipment is composed of working area, return air box, fan box, outlet box, outer box, junior high efficiency filter and so on.
●
The control panel is located in the front of the working area inside the equipment. sdsda
●
The control panel adopts the light-touch LCD control panel, which can control the start and stop of the fan, adjust the working condition of the fan, and adiust the wind speed required by the workina area.
●
Next to it is a differential pressure meter to test the resistance of the filter, a waterproof five-hole socket and a light switch.
●
There is an exhaust air adjustment plate inside the air supply box,
which can adiust the exhaust air volume of the equipment within a reasonable range.
|
Model
|
NPWR-900
|
NPWR-1500
|
NPWR-D800
|
||
|
Cleanness level
|
Class 100@≥0.3μm ( US Federal Standard 209E )
|
|
|
||
|
Air velocity
|
0.45 ± 20%
|
|
|
||
|
Vibration half-peak
|
≤3μm(X,Y,Z direction)
|
|
|
||
|
Noise
|
≤65dB(A)
|
|
|
||
|
Illuminance
|
≥300LX
|
|
|
||
|
Outer dimensions
|
900*1300*2320mm
|
1500*1300*2320mm
|
900*800*1800mm
|
||
|
Inner dimensions
|
800*800*2000mm
|
1400*800*2000mm
|
800*600*750mm
|
||
|
Pressure gauge
|
3 sets (primary, medium, high)
|
|
|
||
|
Primary
|
G4 Primary Efficiency Filter
|
|
|
||
|
Medium
|
F8 Pocket Medium Efficiency Filter
|
|
|
||
|
High
|
U15 Fluid Bath High Efficiency Filter
|
|
|
||
|
Efficiency
|
99.999%@0.3μm
|
|
|
||
|
Power
|
750W
|
1000W
|
450W
|
||
|
Controller
|
Transducer + Button
|
|
|
||
|
|
LCD touch screen
|
|
|
||
|
Supply voltage
|
Three-phase AC380V/50Hz
|
|
|
||
|
Workbench size
|
500*600*800mm
|
|
|
||
Customization
Customized logo
Min. order: 1
Customized packaging
Min. order: 1
Dimension
customization
Min. order: 1
|
For size of more customization details, please message us
|
|
|
||
