Quick Details
-
Product name:
-
4K 4X4 HDMI Matrix Switch
-
Type:
-
BIT-Ma-ADI-0404
-
HDMI version:
-
HDMI2.0
-
Feature:
-
9x9 signal switching
-
Function:
-
4K HDMI Matrix Switch
-
Output:
-
4 HDMI
-
Input:
-
4 HDMI
-
Key Feature:
-
4X4 HDMI Matrix Switch
-
Resolution:
-
4096 x 2160
-
Keyword:
-
4096 x 2160 HDMI Matrix Switch
Quick Details
-
Model Number:
-
BIT-Ma-ADI-0404
-
Brand Name:
-
bitvisus
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
4K 4X4 HDMI Matrix Switch
-
Type:
-
BIT-Ma-ADI-0404
-
HDMI version:
-
HDMI2.0
-
Feature:
-
9x9 signal switching
-
Function:
-
4K HDMI Matrix Switch
-
Output:
-
4 HDMI
-
Input:
-
4 HDMI
-
Key Feature:
-
4X4 HDMI Matrix Switch
-
Resolution:
-
4096 x 2160
-
Keyword:
-
4096 x 2160 HDMI Matrix Switch
Product Description
Product Details

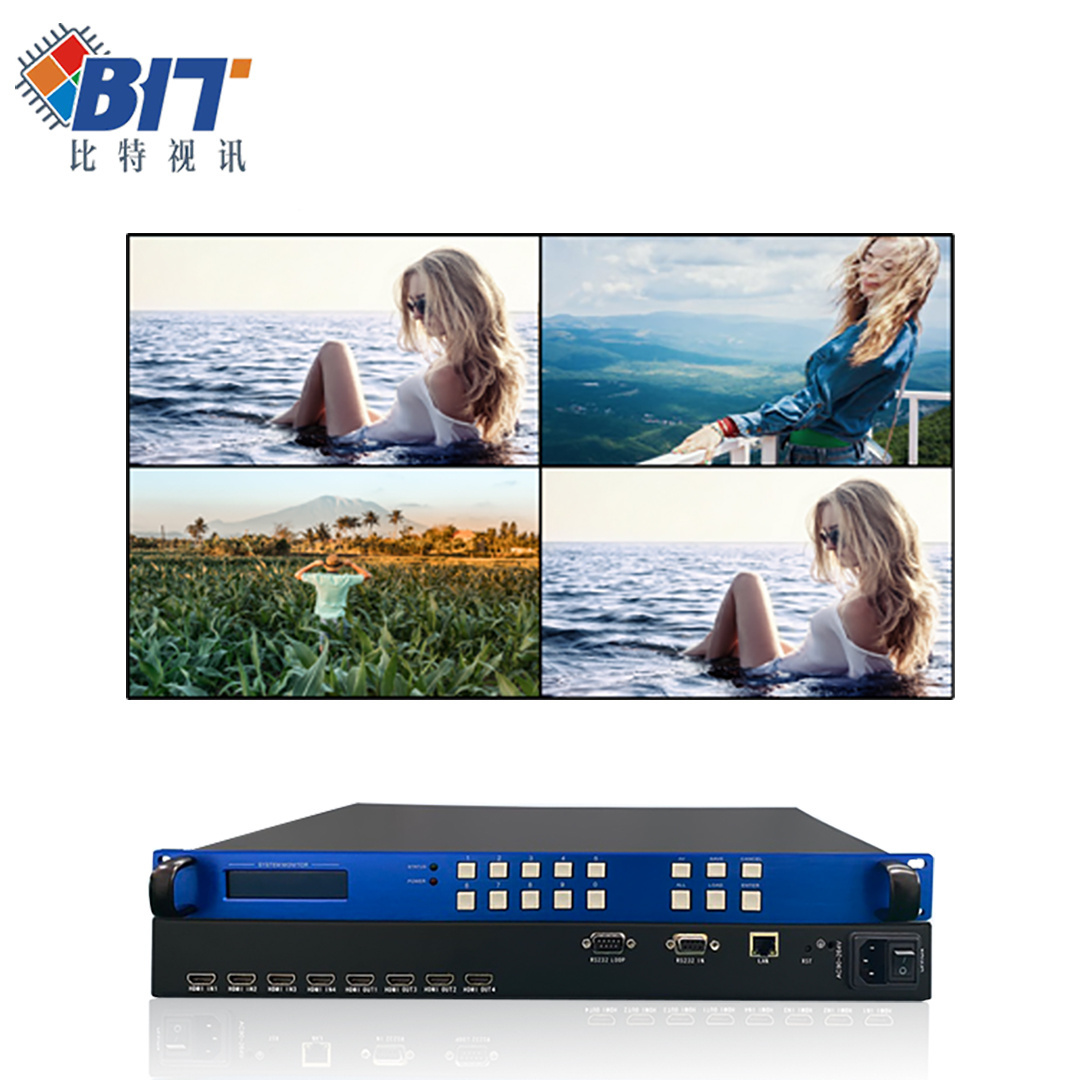

BIT-Ma-ADI-0404 is a 4 input 4 output all-digital ultra-clear matrix switcher, which supports a resolution of up
to 4K x 2K, supports 3D video, HDCP1.4 specification,16 bit color depth. It can provide customers with a non-destructive,
real-time, ultra-clear, full digital experience. Provide a variety of control interfaces ( RS232, TCP / IP) to meet customer
control needs.
to 4K x 2K, supports 3D video, HDCP1.4 specification,16 bit color depth. It can provide customers with a non-destructive,
real-time, ultra-clear, full digital experience. Provide a variety of control interfaces ( RS232, TCP / IP) to meet customer
control needs.
1．Support 4 HDMI video inputs and cross switching of 4 HDMI video outputs.
2．Support the highest resolution 4K x 2K,support 3D video.
3．The front panel LCD shows the real-time feedback status. If there is no operation for a long time, thedisplay automatically enters the sleep low power state.
4．Supports HDMI 1.4 protocol, HDCP1.4 protocol, and 3D TV, compatible with DVT 1.0 protocol.
5．Multiple control methods: keypad operation, RS-232, TCP / IP.
6．Flexible EDID reading mechanism to solve various connection compatibility issues.
7．Integrated multiple control protocols, convenient and quick to use with various central control equipment.
8．Product firmware can be upgraded on-site through the network port, which can easily provide remote support on site and customization of special functions for users.
9．Built-in equalizer up to 100 feet at input and 50 feet at output.
10．Powerful storage function, can store and recall multiple pre-stored switching modes; has power-down memory function, with power-off site protection function.
11．Standard 1U industrial chassis, easy installation, fast operation, support 7X12 hours of uninterrupted work, support AC power in the range of 90-264V.
Certifications
|
model
|
BIT-Ma-ADI-0404
|
|
Specification
|
Input / output support 4 channels each
|
|
Input signal
|
Full digital HDMI signal
|
|
Output signal
|
Full digital HDMI signal
|
|
Control method
|
Button，IR，Software（RS232、TCP/IP）
|
|
Support resolution
|
The highest resolution can reach 4k x 2k (4096 × 2160)
|
|
HDMI version
|
HDMI 1.4 with 3D TV support
|
|
Digital content protection
|
Compatible with HDCP 1.4
|
|
Hot plug
|
Plug and play, easy to install, support hot plug
|
|
Input line length
|
Built-in equalizer at input up to 100 feet
|
|
Output line length
|
≤50 feet
|
|
Input / Output interface type
|
HDMI Interface Type A 19-pin Female
|
|
External power
|
110~220 VAC
|
|
Working environment
|
Storage and use temperature: -20 ° ~ + 70 ° C
humidity: 10% ~ 90% |
|
Product weight
|
4KG
|
|
Rated power
|
22W
|
|
Chassis size (W x D x H)
|
1U（440mm x 263mm x 44mm）
|
|
Warranty
|
1 year free warranty
|
