Quick Details
-
Number of Row:
-
Single row
-
Model Number:
-
MG206-2RS-1
-
Seals Type:
-
Rubber Seals
-
Place of Origin:
-
Shanghai, China
-
Bearing name:
-
MG206-2RS-1 Mast Guide bearing Forklift ball bearings MG206-2RS-1
-
Height:
-
28.575 mm
-
Seal:
-
rubber / metal sealed
-
Application:
-
Fork Lift/ truck Machinery
-
HS CODE:
-
8482102000
-
Material:
-
Chrome Steel
-
Service:
-
OEM Customized Services
-
Package:
-
Single box
-
Bearing type:
-
Axle ball bearing type
-
Stock:
-
YES
Quick Details
-
Applicable Industries:
-
Machinery Repair Shops, Retail, Energy & Mining
-
Bore Size:
-
0 - 29.97 mm
-
Precision Rating:
-
P0 P6
-
Number of Row:
-
Single row
-
Model Number:
-
MG206-2RS-1
-
Seals Type:
-
Rubber Seals
-
Place of Origin:
-
Shanghai, China
-
Bearing name:
-
MG206-2RS-1 Mast Guide bearing Forklift ball bearings MG206-2RS-1
-
Height:
-
28.575 mm
-
Seal:
-
rubber / metal sealed
-
Application:
-
Fork Lift/ truck Machinery
-
HS CODE:
-
8482102000
-
Material:
-
Chrome Steel
-
Service:
-
OEM Customized Services
-
Package:
-
Single box
-
Bearing type:
-
Axle ball bearing type
-
Stock:
-
YES
MG206-2RS-1 Mast Guide bearing Forklift ball bearings MG206-2RS-1
Mast Guide bearings belongs to forklift ball bearing,which normally seem in agricultural machinery or truck forklift machines .It also belongs to axle ball bearing type with metric and inch sizes .Mast Guide bearings are used for high radial and occaisonal thrust loads. They typically have a thick cross section on the outer race which performs as a wheel or tire. Several profiles are available to suit the application. They are mounted on the fork carriage and provide smooth action as the forks are raised or lowered.
We can supply you mast guide bearing types as below: interchange number :MG206-2RS-1 206SZZ-16 MG208-2RS-1 208SZZ-15
|
SYBR
Number |
bore
d Inch |
Outer
Diameter D Inch |
Overall
Width B Inch |
Inner Ring Width
T Inch |
S
Inch |
Outer
|
| MG206-2RS-1* | 1.1811 | 3.0000 | 1.1250 | 0.6299 | 0.2480 | |
| MG208-2RS-1* | 1.378 | 3.592 | 1.255 | 0.8268 | 0.203 | |
| MG305-2RS-1 | 0.9843 | 3.0000 | 1.0000 | 0.6693 | 0.1650 | 0.3300 |
| MG305-2RS-2 | 0.6693 | 2.9300 | 1.0000 | 0.6693 | 0.1650 | 0.3300 |
| MG305-2RS-3* | 0.9843 | 3.0060 | 1.0250 | 0.9843 | 0.3560 | |
| MG306-2RS-1 | 1.1811 | 3.5000 | 1.0000 | 0.7480 | 0.1300 | 0.3750 |
| MG307-2RS1 | 1.3780 | 3.9900 | 1.1250 | 0.8268 | 0.1790 | 0.3750 |
| MG307-2RS-2 | 1.3780 | 3.7250 | 1.0000 | 0.8268 | 0.0300 | 0.3800 |
| MG307-2RS-3 | 1.3780 | 4.0000 | 1.1875 | 0.8268 | 0.1790 | 0.3750 |
| MG307-2RS-4 | 1.3780 | 3.9900 | 1.1250 | 0.8268 | 0.1790 | 0.2750 |
| MG307-2RS-5 | 1.3780 | 3.9900 | 1.1250 | 0.8268 | 0.1790 | 0.3750 |
| MG308-2RS-1 | 1.5748 | 4.4860 | 1.2500 | 0.9055 | 0.1990 | 0.3750 |
| MG309-2RS-1* | 1.7717 | 5.0025 | 1.2500 | 9843 | 0.1330 | 0.3125 |
| MG309-2RS-2* | 1.7717 | 5.0480 | 1.2500 | 0.9843 | 0.1330 | |
| MG309-2RS-3 | 1.7717 | 5.0025 | 1.2500 | 1.0630 | 0.0310 | 0.4375 |
| MG311-2RS-1 | 2.1654 | 6.0030 | 1.5000 | 1.1417 | 0.1770 | 0.43 |
| SYBR | BCA | MRC | HOOVER/ | MCGILL |
| MG206-2RS-1 | MG207FFA | 206SZZ-16 | ||
| MG207-2RS-1 | MG207FFH | 207MZZ-A | X485 | BB1705 |
| 208SZZ-15 | BB849 | |||
| MG207FFK | 208SS-16 | |||
| MG2082RS-1 | MG208FFA | |||
| MG209-2RS-1 | MG209DD | 209MZZ-1 | ||
| MG305-2RS-1 | MG305DD | 305SZZ-3 | X421 | |
| MG305-2RS-2 | MG305DDA | 305SZZ-6 | ||
| MG305-2RS-3 | 305SZZ-7 |
BB1886 |
||
| MG306-2RS-1 | MG306DD | 306SZZ-5 | X555 | |
| MG307-2RS-1 | MG307FF(H) | 307SZZ-10 | X376RS | BB2005-2 |
| MG307-2RS-2 | MG307FFK | 307SZZ-9 | X549RS | BB816 |
| MG307-2RS-3 | MG307FFA | 307SZZ-4 | ||
| MG307-2RS-5 | 307SZZ-14 | |||
| MG308-2RS-1 | MG308FFA | 308SZZ-5 | BB1747 | |
| MG307FFH | MG307FFH | |||
| MG309-2RS-1 | MG309DDA | 309SZZ-4 | X501RS | BB1652 |
| MG309-2RS-2 | 309SZZ-1 | X469 | BB850 | |
| MG309-2RS-3 | 309SZZ-5 | |||
| MG310-2RS-1 | ||||
| MG311-2RS-1 | 311SZZ-1 | BB16493 | ||
| MG312-2RS-1 |

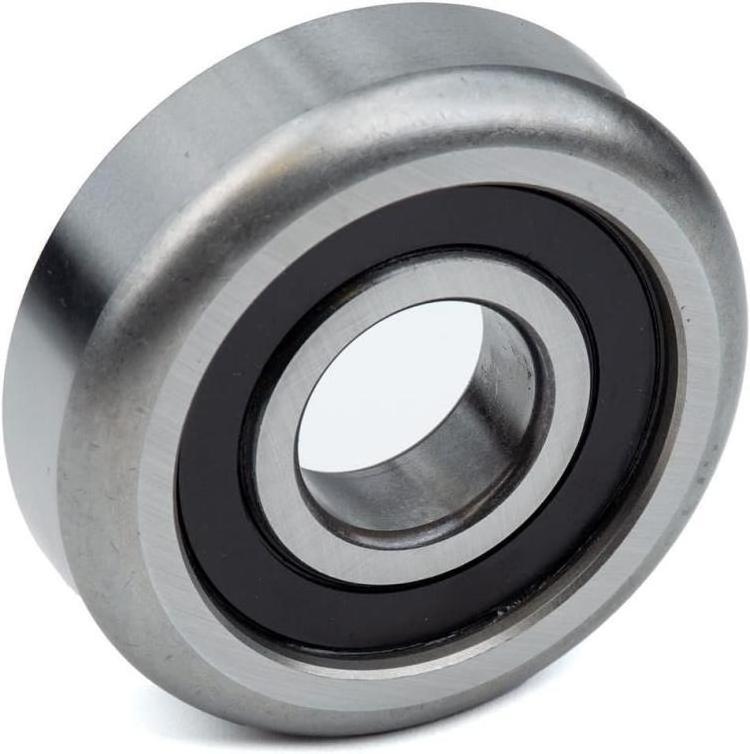

MG206-2RS-1 Mast Guide bearing Forklift ball bearings MG206-2RS-1 photos for reference :
Bearing packages :
1) Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2) Small sizes:Plastic Tube + Carton
3) Big sizes:Wooden Case
