Quick Details
-
Material:
-
Copper-aluminium
-
Certificate:
-
quality test report
-
Name:
-

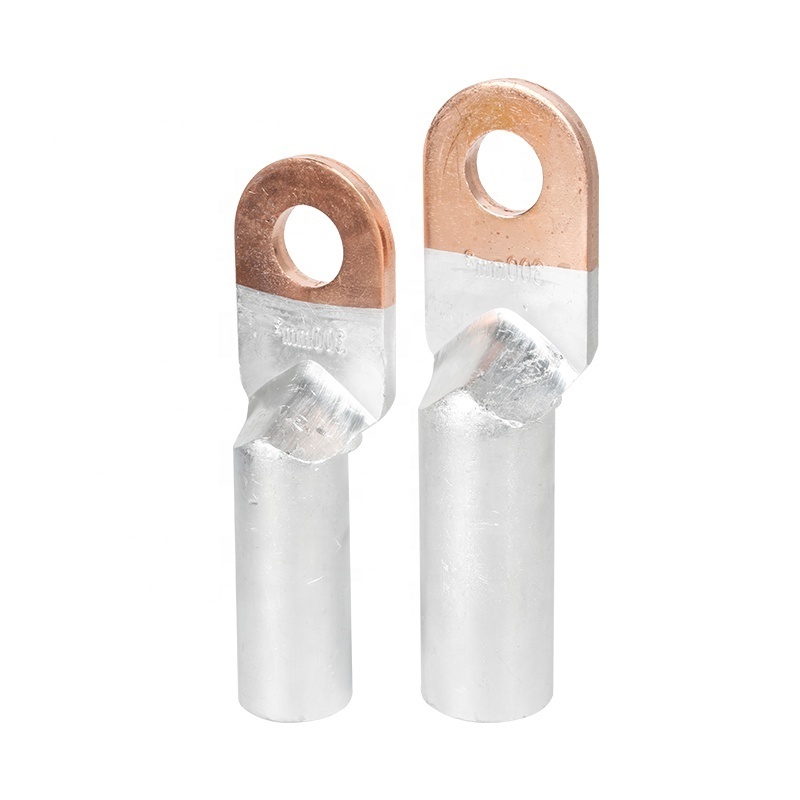

Copper-aluminium Terminal cable Lug
-
screw hole:
-
8.5mm~21mm
-
Product name:
-
Bimetallic cable lug
-
Usage:
-
Connecting Cable
-
Size:
-
Standard
-
Special:
-
DTL-95
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FANKE
-
Model Number:
-
DTL-95
-
Material:
-
Copper-aluminium
-
Certificate:
-
quality test report
-
Name:
-
Copper-aluminium Terminal cable Lug
-
screw hole:
-
8.5mm~21mm
-
Product name:
-
Bimetallic cable lug
-
Usage:
-
Connecting Cable
-
Size:
-
Standard
-
Special:
-
DTL-95
Banner
Product Description
(1) High quality,competitive price.
(2) Customizable some different copper connector.
(3)
flexible and conductive.
(4)
Made by
copper-aluminium
.
(5) Offer free sample.
Drawing.
Please check the size of A type and B type . A type is thick than B type.You can choose which you need.^_^ Then contact us.
| A type | φ(mm) | W(mm) | S(mm) | d(mm) | D(mm) | L1(mm) | L(mm) |
| DTL-10 | 8.5 | 16 | 2.5 | 5.2 | 10 | 30 | 64 |
| DTL-16 | 8.5 | 16 | 3 | 6.2 | 11 | 33 | 70 |
| DTL-25 | 8.5 | 18 | 3.2 | 7.2 | 12 | 36 | 75 |
| DTL-35 | 10.5 | 20.5 | 3.5 | 8.5 | 14 | 42 | 85 |
| DTL-50 | 10.5 | 23 | 4 | 9.7 | 16 | 43 | 90 |
| DTL-70 | 12.5 | 26 | 4.5 | 11.5 | 18 | 50 | 102 |
| DTL-95 | 12.5 | 28 | 5 | 13.5 | 21 | 53 | 112 |
| DTL-120 | 14.5 | 30 | 5.2 | 15.1 | 23 | 55 | 120 |
| DTL-150 | 14.5 | 34 | 5.8 | 16.5 | 25 | 57 | 126 |
| DTL-185 | 17 | 37 | 6.5 | 18.5 | 27 | 60 | 133 |
| DTL-240 | 17 | 40 | 7 | 20.7 | 30 | 62 | 140 |
| DTL-300 | 21 | 46 | 8.5 | 23.2 | 34 | 66 | 160 |
| DTL-400 | 21 | 50 | 8.7 | 26.2 | 38 | 72 | 168 |
| DTL-500 | 21 | 55 | 9 | 29.5 | 42 | 75 | 185 |
| DTL-630 | 21 | 60 | 10.5 | 34.5 | 50 | 82 | 215 |
| B type | φ(mm) | W(mm) | S(mm) | d(mm) | D(mm) | L1(mm) | L(mm) |
| DTL-10 | 8.5 | 14.5 | 2 | 6.5 | 10 | 28 | 64 |
| DTL-16 | 8.5 | 14.5 | 2 | 6.5 | 10 | 28 | 64 |
| DTL-25 | 8.5 | 16 | 2.2 | 7.3 | 11 | 28 | 68 |
| DTL-35 | 10.5 | 18 | 2.3 | 8.5 | 12 | 31 | 74 |
| DTL-50 | 10.5 | 20.5 | 2.6 | 9.5 | 14 | 38 | 82 |
| DTL-70 | 12.5 | 23 | 3 | 11.5 | 16 | 41 | 92 |
| DTL-95 | 12.5 | 26 | 3.2 | 13.8 | 18 | 43 | 98 |
| DTL-120 | 14.5 | 28 | 3.6 | 15.4 | 20 | 46 | 104 |
| DTL-150 | 14.5 | 30 | 4 | 16.8 | 22 | 47 | 113 |
| DTL-185 | 17 | 33 | 4 | 18.8 | 24 | 52 | 120 |
| DTL-240 | 17 | 35 | 4.7 | 20.5 | 28 | 57 | 130 |
| DTL-300 | 21 | 42 | 5.5 | 23.5 | 32 | 61 | 148 |
