10-240cbm/h Mobile Mini Asphalt Plant 110t/h Asphalt Plant

10-240cbm/h Mobile Mini Asphalt Plant 110t/h Asphalt Plant

FOB Reference Price: Get Latest Price

≥1 Sets

US $70000

≥2 Sets

US $50000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/380V-50Hz

Power:: 230kw

Dimension(L*W*H):: 25*20*14m

Weight:: 2000 kg

Product name:: Fixed Asphalt Mix Plant For Sale

Capacity:: 64t/h

Control system:: PLC+colorized Touching Screen

Application:: Construction Industry

Type:: Batch Mix Asphalt Plant

After Warranty Service:: Video technical support, Online support

Mixing Type:: Hot Asphalt Mixing Plant

Product description:: Nearest Asphalt Plant

Burner:: oil,gas,coal

Certification:: CE ISO

Quick Details

Marketing Type:: New Product

Place of Origin:: Henan, China

Brand Name:: XINYU

Voltage:: 220V/380V-50Hz

Power:: 230kw

Dimension(L*W*H):: 25*20*14m

Weight:: 2000 kg

Product name:: Fixed Asphalt Mix Plant For Sale

Capacity:: 64t/h

Control system:: PLC+colorized Touching Screen

Application:: Construction Industry

Type:: Batch Mix Asphalt Plant

After Warranty Service:: Video technical support, Online support

Mixing Type:: Hot Asphalt Mixing Plant

Product description:: Nearest Asphalt Plant

Burner:: oil,gas,coal

Certification:: CE ISO

Product Overview

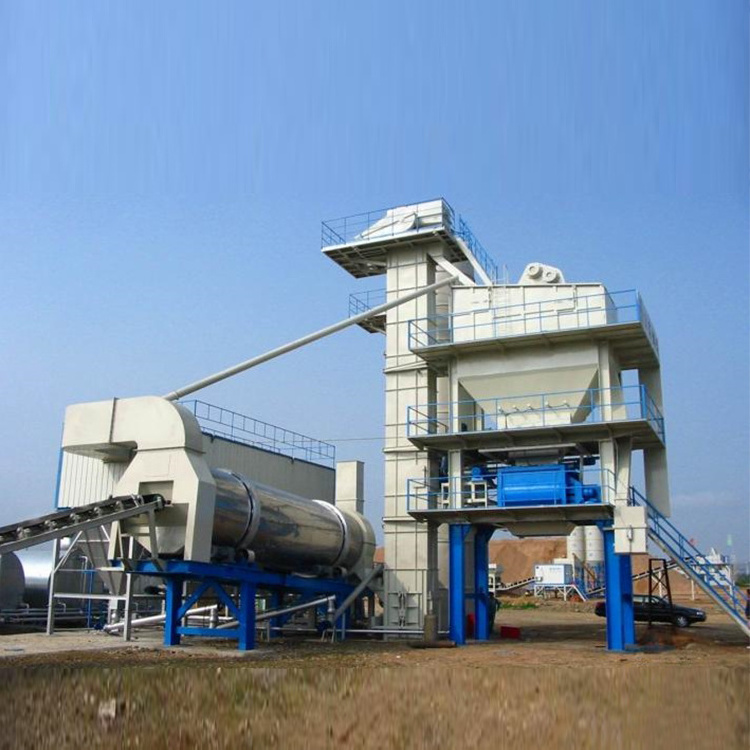

LB series asphalt mixing plant

LB series asphalt mixing plant mainly including:
Cold aggregate supply system, drum dryer, burning system, hot aggregate elevator, vibrating screen, weighing system, mixing tower,dust collecting system, powder supply system, bitumen supply system, electrical control system, finished asphalt storage bin.

Product Details

Features and advantages of asphalt mixing plant:

● The use of the world's advanced pulse bag dust removal technology, dust emission is less than 20mg/Nm³, in line with the
international high environmental protection standards.

● Automatic/manual control system, with fault self-diagnosis feedback
program, simple operation, stable.

● Optimized design, while using high conversion rate of hard tooth surface reducer, high energy
saving efficiency.

● Products through the European CE certification and Russia GOST certification, products fully meet the European and American market for quality, energy saving, low pollution requirements.

Cold Aggregate Feeding Bin

(1) The silo volume and the number of hoppers can be customized according to user needs,

(2) The silo adopts split design, which can effectively reduce the transport size and ensure the volume of the hopper;

(3) The use of seamless annular belt, reliable performance and long service life, belt extraction machine adopts flat belt and baffle design, easy maintenance and replacement

Burning System

(1) 50mm thick insulation layer, small heat loss (2) "Butterfly" elastic connection plate design to avoid elastic cracking -Italian
(3) EBICO oil/gas/coal burners: High combustion efficiency, energy saving and low emissions

(4) Honeywell temperature control system for
safe and easy operation

Asphalt Mixing Station Drying Drum

(1) Siemens motor with hard tooth surface reducer, friction drive type transmission, smooth rotation of the drum;

(2) Optimize the design of the board, so that the heat dissipation is uniform, improve the utilization efficiency;

(3) 50mm insulation layer and stainless steel surface, reduce heat loss.

Asphalt Supply System

LB forced asphalt mixing plant asphalt supply system

(1) The quantity and volume of the asphalt tank can be customized according to customer requirements (2) Heat conduction oil heating system, heating more stable.

PRODUCT SPECIFICATIONS

LB Series(without finished storage silo)
Type	Production	Hot Agg Bin	Capacity	Finished Storage Bin	Weighing Accuracy
LB-600	48 t/h	7 m3	600 kg	Bottom placed/side placed （Optional）	Aggregate:±0.5% Filler :±0.5% Bitumen :±0.25%
LB-800	64 t/h	7 m3	800 kg
LB-1000	80 t/h	10 m3	1000 kg
LB-1200	96 t/h	10 m3	1200 kg
LB-1500	120 t/h	30 m3	1500 kg
LB-2000	160 t/h	50 m3	2000 kg
LB-2500	200 t/h	50 m3	2500 kg
LB-3000	240 t/h	50 m3	3000 kg
LB-4000	320 t/h	50 m3	4000 kg
