Quick Details
-
Model Number:
-
KCB/2CY
-
Place of Origin:
-
China
-
Cable Length:
-
as customer's inquiry
-
Usage:
-
Oil
-
Power:
-
Electric
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Cast Iron/Cast Steel/Stainless Steel
-
temp:
-
-20-200degree
-
Type:
-
Lubricating Oil Pump for fuel transfer/Industrial Pump
-
capacity:
-
1-570 m3/h
-
Motor Power:
-
1.5-185 KW
-
Speed:
-
740-1470 r/min
-
diameter:
-
20-350mm
Quick Details
-
Application:
-
Other
-
Pressure:
-
Low Pressure
-
Brand Name:
-
Honghai
-
Model Number:
-
KCB/2CY
-
Place of Origin:
-
China
-
Cable Length:
-
as customer's inquiry
-
Usage:
-
Oil
-
Power:
-
Electric
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Cast Iron/Cast Steel/Stainless Steel
-
temp:
-
-20-200degree
-
Type:
-
Lubricating Oil Pump for fuel transfer/Industrial Pump
-
capacity:
-
1-570 m3/h
-
Motor Power:
-
1.5-185 KW
-
Speed:
-
740-1470 r/min
-
diameter:
-
20-350mm

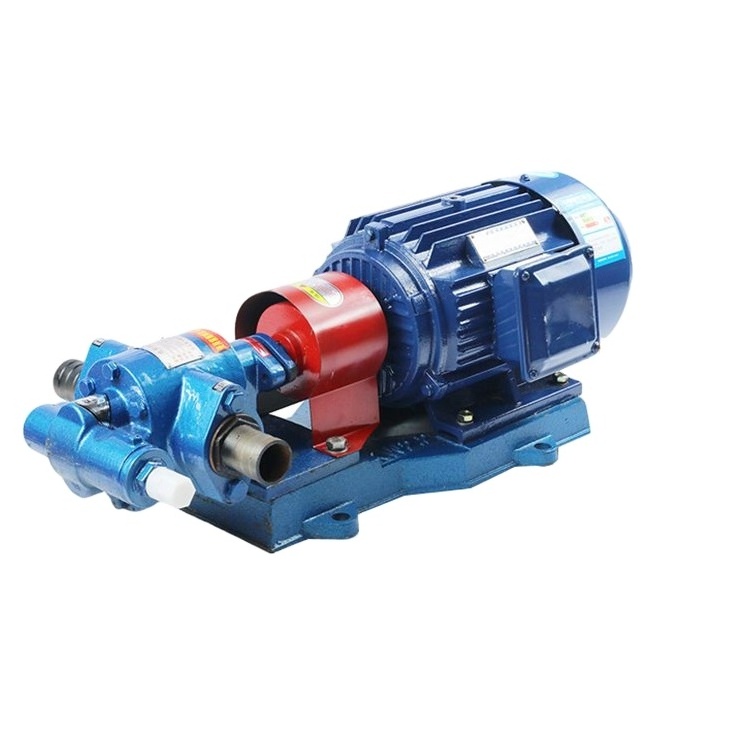

High Temperature Vegetable Oil Pump Gear Type Lube Oil Transfer Pump
Introduction
High Temperature Vegetable Oil Pump Gear Type Lube Oil Transfer Pump
is applies to delivering non-corrosive lubricating oil or equivalent liquid without solid paraticles and fibres at temperature below 200 C, and with the viscosity of 5-1500 cSt.
Reducing the speed, the pump can delivery the liquid that the viscosity can be up to 50000 cSt.
Performance scope
1.Capacity:1.1-570m3/h;
2.Pressure: 0.28-1.45mpa;
3.Motor power: 1.5-185kw;
4.Temperature: -20-200degree;
5.Speed: 720-1800rpm;
Application Scope
1. Medicine industry;
2. F ine chemical industry;
3. Food ind ustry;
4. C osmetics industry;
5. P rinting and dyeing industry;
6. B rewing industry;
Structural features
High Temperature Vegetable Oil Pump Gear Type Lube Oil Transfer Pump is mainly composed of gears, axles, pump body, pump cover, safety valve and axle-end seals etc. The heattreated gears have the advantage of higher hardness and intensity, and rotate with the axles inside the replaceable bearing sleeves. All of pump's parts can be lubricated by delivered medium when working.
The pump is properly designed with leakage and return chute, which lets the gears bear the least torque force and reduces load and wear on bearings in order to raise pump' efficiency.
It is also designed with safty valve for protection against overload. The full return flow pressure of the safety valve is 1.5 times higher than the rated exhaust pressure of the pump. It can be also adjusted within the allowance of exhaust pressure range according to circumstances. But please note the safty valve can't be applied as pressure reducing valve for long time. You may install pressure reducing valve separately on pipe-line if needed.
The direction of rotation is clockwise viewed from coupling end.
Data sheet
KCB18.3-KCB83.3 cast iron and stainless steel material gear pump:
KCB135-KCB960 cast iron material gear pump:
KCB1200-KCB900 cast iron material gear pump:
If you want to know more,please click.
Professiomal quality, trustworthy
