Quick Details
-
Brand Name:
-
Ustarlink, Ustarlink
-
Model Number:
-
WS-8820W
-
Place of Origin:
-
Sichuan, China
-
Production Name:
-
IPTV Server for Hotel, Community, Enterprice, Campus etc
-
Storage:
-
16GB/RECC/DDR5/4800MHz
-
System Hardware:
-
64G
-
VOD Hardware:
-
4T
-
Network Ports:
-
6pcs GE, 2pcs 10G SFP+
-
User quantity:
-
below 300users
-
IPTV Applications:
-
Hotel, Community, Hospital, School
-
IPTV Functions:
-
Live, VOD, EPG&Timeshift, Miracast
-
App Version:
-
Android, Windows
Quick Details
-
Type:
-
Rack
-
Processor Type:
-
I5-4470
-
Processor Main Frequency:
-
I5-4470 qual core 4 thread processor (3.2GHz)
-
Brand Name:
-
Ustarlink, Ustarlink
-
Model Number:
-
WS-8820W
-
Place of Origin:
-
Sichuan, China
-
Production Name:
-
IPTV Server for Hotel, Community, Enterprice, Campus etc
-
Storage:
-
16GB/RECC/DDR5/4800MHz
-
System Hardware:
-
64G
-
VOD Hardware:
-
4T
-
Network Ports:
-
6pcs GE, 2pcs 10G SFP+
-
User quantity:
-
below 300users
-
IPTV Applications:
-
Hotel, Community, Hospital, School
-
IPTV Functions:
-
Live, VOD, EPG&Timeshift, Miracast
-
App Version:
-
Android, Windows
|

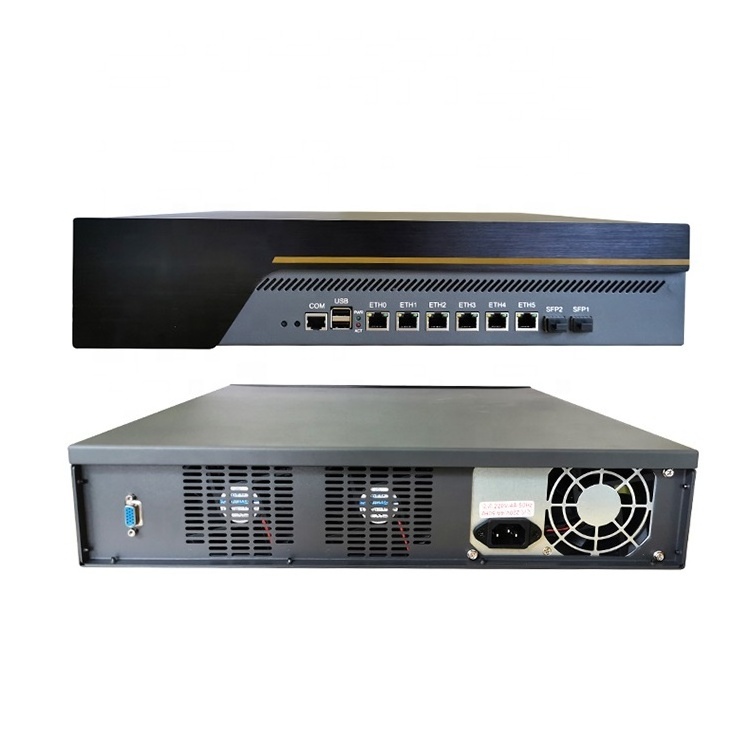

IPTV Server for Hotel, Community, Enterprice, Campus etc
W Serials |
|
|
CPU |
I5-4470 qual core 4 thread processor (3.2GHz) |
|
Storage |
16G |
|
System Hardware |
32G |
|
VOD Hardware |
4TB capacity |
|
Fan |
Temperature control fan |
|
Network Function |
Integrated 6pcs Intel® 82574L 1000M netcards, 2pcs 10g SFP ports Intel® I-350 fiber netcard |
Main Functions :
l Web Interface Management
l Optical Modem Collection, Satellite Collection , Encoding Collection
l supports 80 HD or 120 SD channels, below 300 users.
l Sharing screen (optional)
l 1000 VOD channels storage
l Support PMS integrated , RCU system, Voice Remote Control, Smart Audio Box
l APP can work with Android TV set, Android IPTV Box, Above Android 4.4.2
Applications :
it is good for hotels, clubs, communities, hospitals, prisons
Features of IPTV Systems:
1. Video &Picture& Text Ad (self-defined)
2. Weather Info (self-defined)
3. Multi-languages (optional)
4.Guide Book (self-defined)
5. Hotel Services (self-defined)
6. Live&Vod Channels
7. PMS integrated(optional)
8. One Key Installation , save more time and make installation simple
9. created accounts by batch operation (for hotel room accounts, save system setting time)
10. it is with channel lock for community iptv version, it is easy for adult channels setting.
11. EPG& Channels Replay, Area Management
12. Competitive Cost , own our own R&D team, support without delay
13. support wireless , mobile version (community version )
14. Media server functions: UDP to RTMP/HLS, HTTP-UDP/RTMP/HLS, File to UDP/RTMP/HLS , from MPTS to SPTS
15. more features will be added by customer requirements, flexible functions modules.
APP UI Interfaces
Basic Module Functions
|
Function Module |
Introduction |
Type |
Memo |
|
Media Server Software |
Media server functions: Transferring UDP protocol to be HTTP UDP to RTMP/HLS, HTTP-UDP/RTMP/HLS, File to UDP/RTMP/HLS, from MPTS to SPTS |
Basic |
|
|
Management Functions |
Account Management
Program Management
Release Management
System Management
Log Management
Database Management
EPG &Playback Control
Authentication
|
Basic |
|
|
Welcome Page |
Display customer name on welcome page |
Value-added Services |
Hotel Version, it needs to be connected with PMS integrated |
|
Hotel Introduce |
Hotel introduction, Text advertisement, Video Advertisement, flexible background |
Basic |
|
|
Weather Module |
Weather information |
Basic |
Connect with internet |
|
TV live Channels |
|
Basic |
|
|
Remote Volume Control |
Control volume |
Value-added Services |
|
|
EPG/Channel Playback/Time Shift |
Time shift : 120 mins, pause, fast forward, back Time: 3-7 days |
Value-added Services |
Need time shift server |
|
Local VOD Channels |
From local |
Basic |
|
|
On-Line VOD |
Support to add external app in system |
Basic |
|
|
Advertisement |
Rolling messages, emergence public information, support video or picture or text |
Basic |
|
|
Multi screen |
Miracast |
Basic |
|
|
Area Management |
Support Area management |
Basic |
|
|
Channel Lock |
Can set up password for certain channel, and customer can set up password from app side |
Basic |
|
|
Other |
Tailoring customer requirements to add new function modules |
Value-added Services |
|
|
Customers can add or remove module functions . |
|||
Q1: How could I test IPTV system?
We will provide on-line test by our cloud server or help install local server for customer test.
Q2: Could I add some function or design UI interfaces ?
Yes, We have powerful R&D strength to tailor customer's requirements.
Q3: How to make an order?
You can contact our sales by email, whatsapp, skype for quotation.
Q4: How to make payment?
You can make payment by bank TT, western union, Alipay, Paypal etc...
Q5: How about technical support?
We will provide on-line support by teamviewer or on-site support for our customer.
