Quick Details
-
IP Rating:
-
IP20
-
CRI (Ra>):
-
92
-
Input Voltage(V):
-
DC 12V/24V
-
Lamp Luminous Flux(lm):
-
980
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-25 - 65
-
Color Rendering Index(Ra):
-
92
-
Product Weight（kg）:
-
0.025
-
Product Name:
-
led strip 2835
-
LED Type:
-
SMD 2835
-
LED Quantity:
-
60/120/240leds/m
-
Color Option:
-
2700K/3000K/4200K/6000K
-
Length:
-
5m/roll
-
IP Rating Option:
-
IP65/IP67/IP68/IP20/IP54
-
Adhesive Tape:
-
3M 9080A
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COXO
-
Model Number:
-
A2835
-
IP Rating:
-
IP20
-
CRI (Ra>):
-
92
-
Input Voltage(V):
-
DC 12V/24V
-
Lamp Luminous Flux(lm):
-
980
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-25 - 65
-
Color Rendering Index(Ra):
-
92
-
Product Weight（kg）:
-
0.025
-
Product Name:
-
led strip 2835
-
LED Type:
-
SMD 2835
-
LED Quantity:
-
60/120/240leds/m
-
Color Option:
-
2700K/3000K/4200K/6000K
-
Length:
-
5m/roll
-
IP Rating Option:
-
IP65/IP67/IP68/IP20/IP54
-
Adhesive Tape:
-
3M 9080A
Products Description

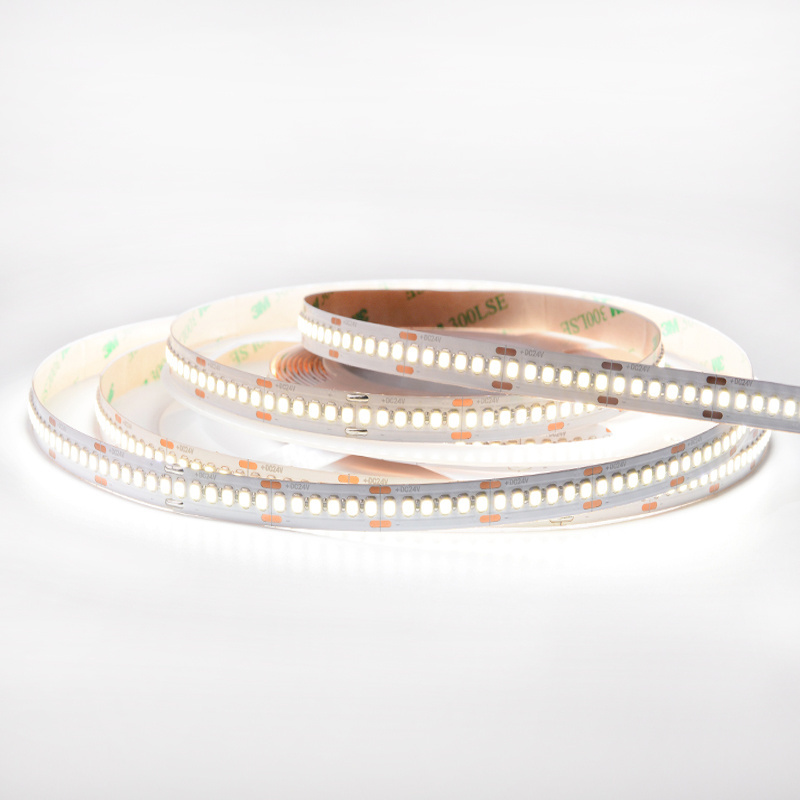

2835 Flexible LED Strips
Certifications
Product Paramenters
|
LED Type
|
SMD 2835
|
SMD 2835
|
SMD 2835
|
||
|
LED Density
|
60led/m
|
120led/m
|
240led/m
|
||
|
Color
|
2700K/3000K/4200K/6200K
|
2700K/3000K/4000K/6000K
|
|
||
|
Ra
|
>80
|
>80
|
>80
|
||
|
Work Voltage
|
12V DC/24V DC
|
12V DC/24V DC
|
24V DC
|
||
|
Power
|
9.6W/M
|
16W/M
|
24W/M
|
||
|
Brightness
|
950~980Lm
|
1500~1600Lm
|
2300~2400Lm
|
||
|
IP Rating
|
IP20/IP54/IP65/IP67/IP68
|
|
|
||
|
PCB Size
|
5000*8mm 2 OZ
|
5000*8mm 2 OZ
|
5000*10mm 3 OZ
|
||
|
Cutting Unit
|
3 LEDs 50mm
|
3 LEDs 25mm
|
6 LEDs 25mm
|
||
|
Certification
|
UL / CE / RoHS / BIS
|
|
|
||
|
Package
|
5m/roll
|
|
|
||
Hot sale
TOP Quality 2835 SMD
2oz & 3oz High-conductivity pure copper FPCB
0.26mm
~
0.35mm
Thickness
Original 3M Adhesive Tape
Stable installation
UL AWG20# Wire
Temperature range:
-60℃~+200℃
COXO High Quality LED Strip VS Others
Full color temperature optional
Applications
