Quick Details
-
Warranty:
-
1 year, 1 year
-
Place of Origin:
-
China
-
Brand Name:
-
Greensky
-
Model Number:
-
GS154L
-
Torque:
-
30-40N.m
-
IP:
-
IP54-65
-
Certification:
-
CE
Quick Details
-
Speed(RPM):
-
800-4500rpm
-
Continuous Current(A):
-
It depends on the power and voltage.
-
Efficiency:
-
IE 2
-
Warranty:
-
1 year, 1 year
-
Place of Origin:
-
China
-
Brand Name:
-
Greensky
-
Model Number:
-
GS154L
-
Torque:
-
30-40N.m
-
IP:
-
IP54-65
-
Certification:
-
CE

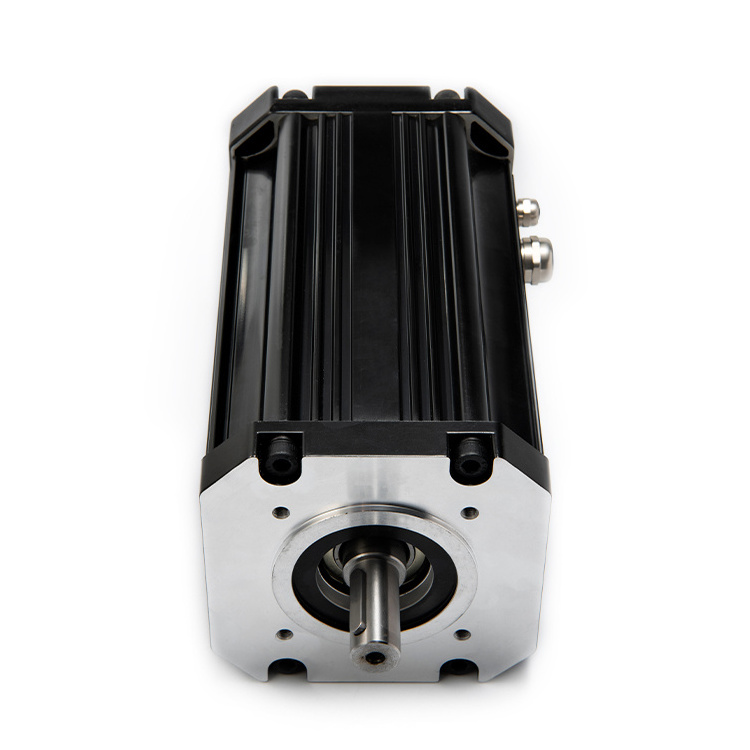

High Power 4000W 800-4500rpm Electrical DC Brushless Motor
General Parameter
| Motor Type | PM Brushless DC Motor | |
| Model No. | GS154L | |
| Housing | 166.5×166.5mm | |
| Length | 331mm output shaft excluded | |
| Shaft | ≤35mm | |
| Voltage | DC:12V-300V AC:220/380V | |
| Speed | 800rpm-4000rpm | |
| Rated output power | Max 40N.m | |
| Peak Power | 120N.m | |
| Insulation class | F | |
| Ingress Protection | Max IP65 | |
| Phase | 3 Phase | |
| Hall angle | 120 Degree | |
| Standard Flange | IEC D63/71/80 B3/B5/B14 | |
Dimensional drawing Unit: mm
Note:
If you're interested in these products, please freely tell us about your requirement. We will provide you with a suitable motor solution and price soon.
FAQ
1 Q: What's your MOQ for gear motor and gearbox?
A: 1 unit is OK for sample testing.
2 Q: What about your warranty for your gear motor and gearbox?
A: One year.
3 Q: Do you provide OEM service with customer-logo?
A: Yes, we could do OEM orders.
4 Q: How about your payment terms ?
A: T / T, western union and paypal. 100% payment in advanced for orders less $10,000. 50% deposit and balance before delivery for orders over $10,000.
5 Q: How about your packing ?
A: Carton, plywood case and pallet .
6 Q: What information should be given, if I buy gear motor and gearbox from you ?
A: Rated power, gearbox ratio, input speed, mounting position. More details, better!
7 Q: How do you deliver the gear motor and gearbox?
A: We will compare and choose the most suitable ways of delivery by sea, air or express courier after customer's confirmation.
Warmly welcome your inquiry!
