Quick Details
-
Graphic Format Supported:
-
BMP, Dwg, DXF, DXP, AI, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledio
-
Dimension(L*W*H):
-
1200*900*1000mm
-
Weight (KG):
-
250 KG
-
Type:
-
LD-6090
-
working area:
-
600*900mm
-
laser engraver power:
-
80W(YONGLI brand)
-
cooling type:
-
water-cooled
-
Laser type:
-
CO2 sealed laser tube,water-cooled
-
Engraving speed:
-
0-6000cm/min
-
Power supply:
-
220V/50HZ , 110V/60HZ
-
Driving system:
-
Stepper motor
-
Cutting speed:
-
0-5000cm/min
-
Control system:
-
Ruida Control System
Quick Details
-
Engraving Area:
-
900*600mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-6000mm/min
-
Graphic Format Supported:
-
BMP, Dwg, DXF, DXP, AI, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledio
-
Dimension(L*W*H):
-
1200*900*1000mm
-
Weight (KG):
-
250 KG
-
Type:
-
LD-6090
-
working area:
-
600*900mm
-
laser engraver power:
-
80W(YONGLI brand)
-
cooling type:
-
water-cooled
-
Laser type:
-
CO2 sealed laser tube,water-cooled
-
Engraving speed:
-
0-6000cm/min
-
Power supply:
-
220V/50HZ , 110V/60HZ
-
Driving system:
-
Stepper motor
-
Cutting speed:
-
0-5000cm/min
-
Control system:
-
Ruida Control System

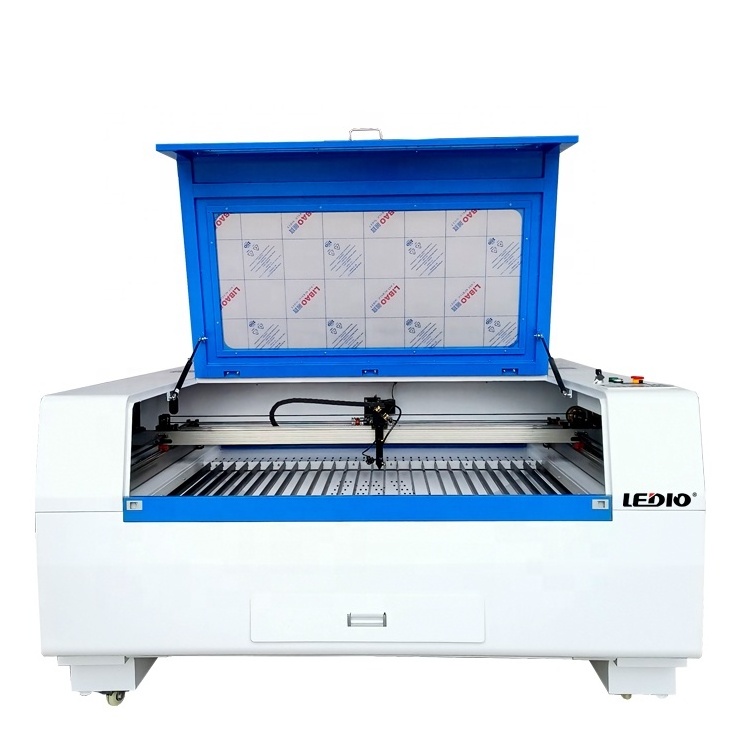

Mini laser cutting 6090 machine acrylic MDF leather cnc laser cutting engraving machine
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Type
|
LD-6090
|
|
2
|
Working area
|
600*900mm
|
|
3
|
Laser tube power
|
80w (Yongli A2S)
|
|
4
|
Table type
|
Blade table
|
|
5
|
Control system
|
RD Control system
|
|
6
|
Cooling type
|
CW3000 water chiler
|
|
7
|
Engraving Scanning Speed
|
0-7000mm/min
|
|
8
|
Cutting Speed
|
0-4000mm/min
|
|
9
|
Power Supply
|
AC220±10%,single phase,50-60Hz
|
|
10
|
Locating Precision
|
±0.01mm, red light locating
|
PRODUCT CONFIGURATION
Good quality laser tube
Laser cutting head
water chiller
SAMPLE SHOW
Non-metal materials such as acrylic, wood planks (light planks, plywood),bamboo ware .
double-color sheets, paper, leather,shell, coconut shells, ox horns, resin animal grease,
ABS boards, lamp shade, etc.
