Quick Details
-
Place of Origin:
-
Guangdong, China
-
prototype:
-
quickly checking the design appearance
-
soft shoe model:
-
fitting test
-
casting shoe model:
-
replacing wooden model
-
rapid molding:
-
for small batch production
-
material:
-
resin
-
Process:
-
3D Printing
-
Service:
-
Customized OEM
-
Equipment:
-
Stratasys 3d Printer
-
Color:
-
Customized Color
Quick Details
-
Production Capacity:
-
100pc
-
Year:
-
2019
-
Forming size:
-
1700*800*600mm
-
Place of Origin:
-
Guangdong, China
-
prototype:
-
quickly checking the design appearance
-
soft shoe model:
-
fitting test
-
casting shoe model:
-
replacing wooden model
-
rapid molding:
-
for small batch production
-
material:
-
resin
-
Process:
-
3D Printing
-
Service:
-
Customized OEM
-
Equipment:
-
Stratasys 3d Printer
-
Color:
-
Customized Color
Factory price 3d printer large industrial 3d printer for sale
Our advantages
--Batch printing, efficiency increased by 5times.
Kings 3D printer is ultra-fast in printing speed, and is capable of producing multiple products at one time, with the development efficiency increased by 5times compared with CNC machining.
--Regardless of the complexity, the accuracy rate reaches 0.08%
360degree printing makes it easy to produce complex structures like barbs, curved surfaces, hollow products and etc. Accuracy rate: L < 100MM: ±0.08mm; L ≥ 100mm: ±0.08%L
--Easy to operate, 24-hour unmanned intelligence.
Kings control software is very user-friendly, and the automatic production needs no guard, which saves up to 60% of the labor cost compared to CNC machining.
--Multi-attribute materials reduce manufacturing cost by 50%
Kings has developed printing materials of various attributes that meet the need of different industries, which saves more than 50% cost for customers.
--1.7meters, the largest SLA 3D printer in China.
The largest printing size of the Kings 3D printers is 1700*800*600mm, popular in large-size rapid prototyping, such as the automobile industry.
--No noise, low energy consumption, more eco-friendly
Kings 3D printers bring no noise and the maximum power consumption is lower than 2KW, The 3d printing of model and mould brings no dust or heavy metal pollution, thus providing workers with a healthier environment.

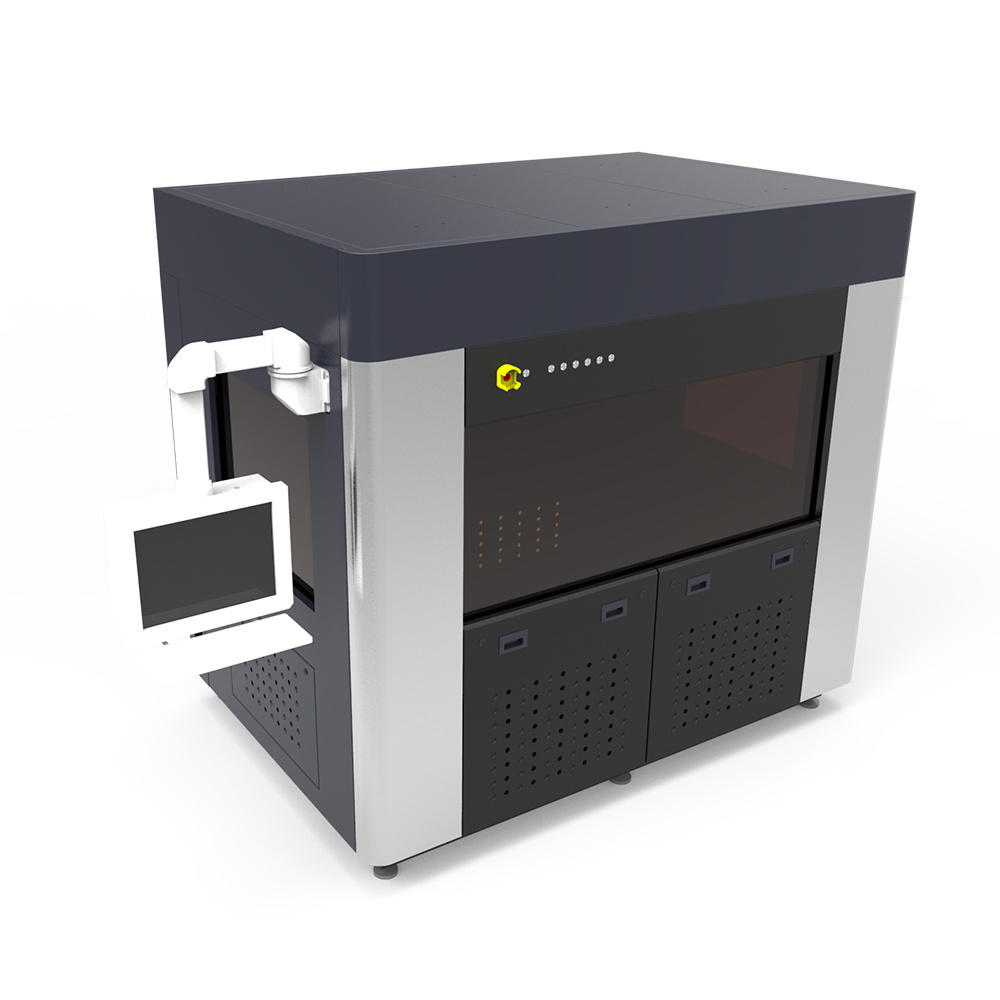

SPECIFICATIONS OF KINGS-1700 INDUSTRIAL SLA 3D LASER PRINTER
Basic information
Construction Size: 1700mm(X)×800mm(Y)×600mm(Z)
Equipment Size (without display): 239cm(W)×159cm(L)×226cm(H)
Equipment Weight:about 2400kg
Rated Dissipation: 1.8KVA
LASER SYSTEM
Laser Type: Nd: YV04 Solid Laser
Wave Length: 355nm
Power: Minimum Power to Liquid Level≥300mW
COATING SYSTEM
Coating ModeIntelligent Position Vacuum Recoating
Normal Layered Thickness: 0.1mm
Rapid Build Layered Thickness: 0.15mm
Precise Build Layered Thickness: 0.05mm
Special Build Layered Thickness: 0.05mm~0.20mm
OPTICAL & SCANNING SYSTEM
Light Spot(diameter @1/e2): 0.10-0.15mm
Scanning Mode: Germanic Galvanometer Scanner
Parts Scanning Speed: Maximum 10.0m/s
ELEVATOR SYSTEM
Vertical Resolution Ratio: 0.0005mm
Repeat Positioning Accuracy: ±0.01mm
RESIN TANK
First Tank Weight: about1300kg
Forming Material: Photosensitive Resin
Resin Heating Method: Bottom Heating with Silicone Rubber
CONTROL SOFTWARE
Machine Control Software: KING3D Control Software
Device Software Interface: 3D Design Software, STL File Format
SOFTWARE SYSTEM
Master Controller Operation System: Windows 7
Network Type and Protocol: Ethernet, TCP/IP
INSTALLATION CONDITION
Current Source: 200-240VAC 50/60Hz, Single Phase,10A
Ambient Temperature: 20-26ºC
Relative Humidity: <40%,Frost Free Knot
