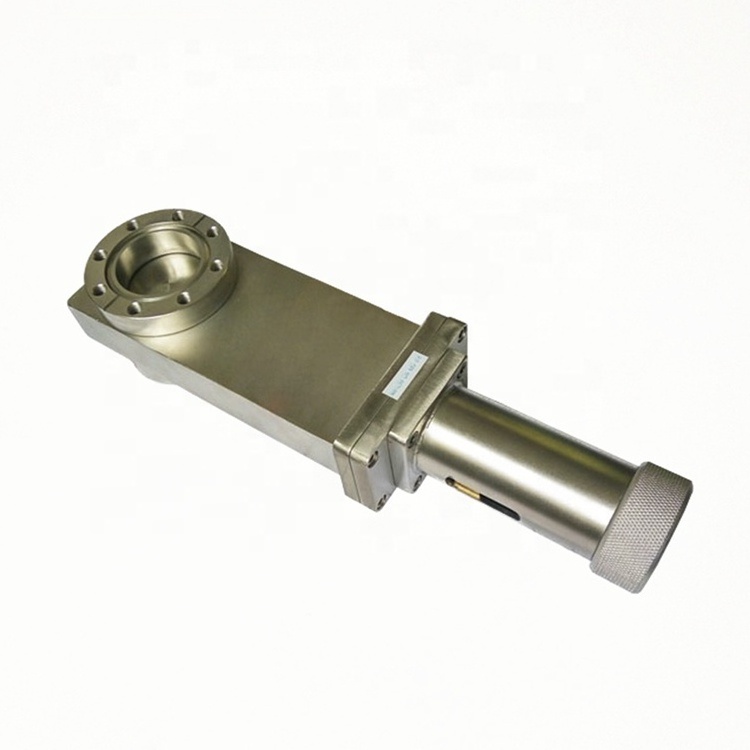

CF high vacuum gate valve
-
Type:
-
high vacuum gate valve, Gate Valves
-
Operation:
-
manual/pneumatic
-
Flange:
-
CF flange
-
Size:
-
CF25 CF40 CF50
-
Body material:
-
Stainless Steel 304
-
Medium:
-
Air/Vacuum
-
Connection type:
-
bolts
Quick Details
-
Port Size:
-
CF25 CF40 CF50
-
Place of Origin:
-
Shanxi, China
-
Model Number:
-
CF25 CF40 CF50
-
Brand Name:
-
VACTEC
-
Product name:
-
CF high vacuum gate valve
-
Type:
-
high vacuum gate valve, Gate Valves
-
Operation:
-
manual/pneumatic
-
Flange:
-
CF flange
-
Size:
-
CF25 CF40 CF50
-
Body material:
-
Stainless Steel 304
-
Medium:
-
Air/Vacuum
-
Connection type:
-
bolts
|
CF FLANGE HIGH VACUUM GATE VALVE
|
|
|
|
Material
|
Stainless Steel
|
|
|
Flange
|
CF
|
|
|
Size
|
CF25 CF40 CF50
|
|
|
Driven
|
Manual/Pneumatic
|
|
|
Application scope
|
1×10
-6
Pa～1.2×10
5
Pa
|
|
|
Leak rate
|
≤1.3×10
-7
Pa·L·s
-1
|
|
|
Installation
|
Any direction
|
|
|
Brand
|
VACTEC
|
|
CF ultra-high vacuum gate valves are made up of manual and pneumatic gate valves and the size from CF25 to CF50.
As a result, they can apply to the ultra-high vacuum equipment. The motivities of this series of valves are manual rotating handle, air cylinder driven by compressed air to push the link mechanism through driving rod, move along the axial with drivebody. The drive body was connected with the valve plate via pendulum rod and then realize the valves’ open and close action. Applicable medium can be air and non-corrosive gas.
2. Stainless steel for the valve body material, good rigidity overall, compact size, nice appearance.
3. Adopt the double guide bearing rollers, rollers mechanism with smooth movement, monolithic structure with symmetrical support.
|
Application range
|
|
1×10-5Pa～1.2×105Pa (O-ring sealing)
|
|
|
|
|
1×10-6Pa～1.2×105Pa (Bellow sealing)
|
|
|
Differential pressure before open valve plates
|
|
≤3×103Pa Any direction
|
|
|
Leak rate of valves’ body and base
|
|
1.3×10-7Pa·L·s-1
|
|
|
Cycles until first maintenance
|
|
10,000 times
|
|
|
Baking Temperate of valve bodies
|
|
Open ≤200℃; Close ≤150℃
|
|
|
Position of installation
|
|
Any direction
|
|
|
Power Supply (pneumatic)
|
|
AC 220V 50Hz,6W or DC 24V,3W (Special spe.can be customized)
|
|
|
Compressed air (only supply to pneumatic valves)
|
|
0.4～0.7MPa
|
|
|
Speed of closing and opening (pneumatic)
|
|
≤3s
|
|
|
Indications of valves’ position
|
Manual
|
with indicator of open and close positions (mechanical type)
|
|
|
|
Pneumatic
|
with indicator of open and close positions (magnetic switch)
|
|
