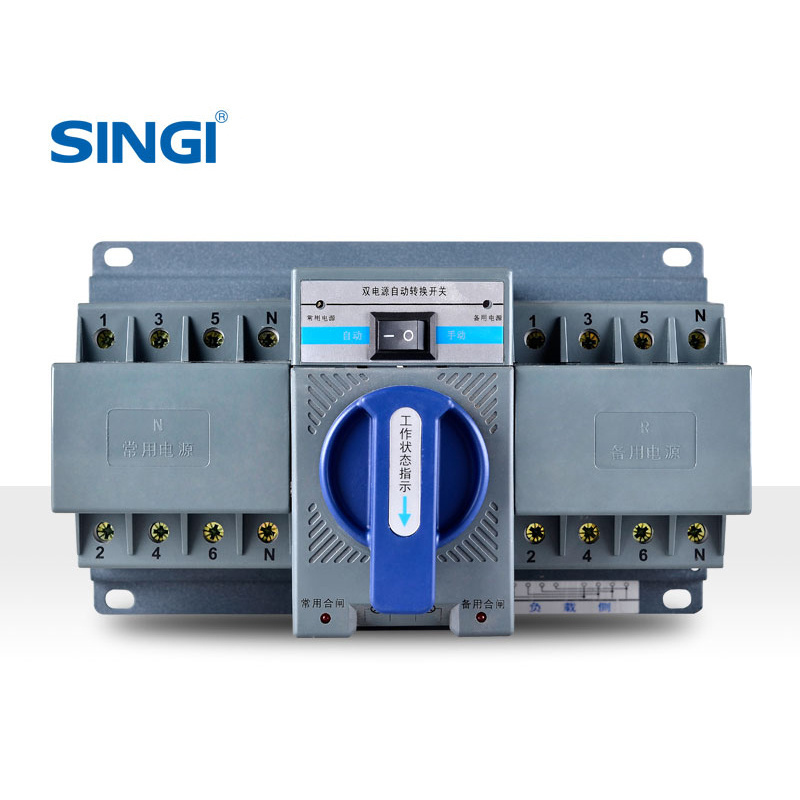

SWQ1 63amp automatic transfer switch ATS switch controller 2p Change Over Switch Overload and Short Circuit

Key Specification

SWQ1  63amp  automatic or manual 2pole change over switch

original metal components suppler of CHNT&Delixi

• Professionally specialized in low voltage construction electrical product
• Chinese famous trademark;
• Original factory established in 1993;
• We have our own mold and punching plants, the price ,quality, aftersale and customization etc. can be well controlled;
• Stable parts supplier of ,ABB,CHNT, Delixi, Gacia etc. famous, national enterprises;
• Production strictly according to ISO9001;
• CE,CB,UL,CUL,ETL,CETL certified;
• Annual sales amount 90million USD;
• Wide product range: mcb, mccb, ats, auto-reclosing, distribution box ,switch and socket, power strip,

metal stampings, terminal box, communication wire;

• OEM and ODM are welcomed;
• Good and honest service;
• Our products are used in Shanghai World Expo in 2009;
• Timely delivery and good aftersale;

GNQ1series miniature circuit breaker automatic transfer switch is composed of two mcb and its auxiliary parts. It is suitable to the double power system of AC power below 415V,frequency 50/60Hz,rated current below63A. The main applied places include hospital, shopping mall, bank, fire control ,telecommunication, high-rising building etc. where the power off is not allowed.

l With small volume, simple structure ,easy operation ,long life ,3/4pole available;

l The switching drive is single motor ,stable ,without noise, impact small;

l With mechanical and electric interlock, switching reliable ,manual and automatic transfer optional;

l The rated current of normal power mcb and backup power mcb can be different;

l The terminal in ATS is for user wiring to display the close or open station of mcb;

l The mcb has high breaking capacity.

l The around air temperature should be between +5 °C and +40 °C ,the average value should be not higher than 35 °C ;

l The sea level should not exceed 2,000m;

l The air relative humidity should not exceed 50%,lower temperature ,the humidity can be higher, the average temperature +25 °C ,,the max relative humidity should not exceed 90% and the surface condensation should be taken into consideration cause of the temperature change;

l Pollution degree III;

l The working place is without strong vibration and impact, no corrosive gas that corrode metal and break the insulation, no strong dust, no conductive particulate and explosive dangerous substance, no strong electromagnetic interference.

Remark: chose the suitable wire ,connect the wire-in and wire-out of mcb well and the phase sequence of wire-in should be accordant. For 3 pole mcb, add neutral line of each mcb to the neutral N terminal of ATS, or the ATS can not work normally.
