- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
IG3800
-
Rated Current:
-
8.0A
-
Frequency:
-
50/60hz
-
Engine model:
-
UP170
-
Engine type:
-
Single-cylinder air-cooled 4-stroke OHV
-
Fuel type:
-
90#Petrol
-
Fuel tank capacity:
-
10L
-
Continuous work:
-
10h
-
Lubrication Oil Volume:
-
0.6L
-
Displacement:
-
208cc
-
Max Output:
-
7.0hp/3600rpm
-
Fuel tank panel:
-
Metal
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
UNITED POWER
-
Model Number:
-
IG3800
-
Rated Current:
-
8.0A
-
Frequency:
-
50/60hz
-
Engine model:
-
UP170
-
Engine type:
-
Single-cylinder air-cooled 4-stroke OHV
-
Fuel type:
-
90#Petrol
-
Fuel tank capacity:
-
10L
-
Continuous work:
-
10h
-
Lubrication Oil Volume:
-
0.6L
-
Displacement:
-
208cc
-
Max Output:
-
7.0hp/3600rpm
-
Fuel tank panel:
-
Metal
Overview
Gasoline generator, ROHS 2.0 steel fuel panel, 90kgs, light and portable, digital AVR, meet the EPA, EURO-V, CE, GS, EMC, NOISE certificates.
Product Spec.
| MODEL | IG3800 | |
| Frequency (Hz) | 50 | 60 |
| Rated AC Output (kW) | 3.2 | 3.2 |
| Max. AC Output (kW) | 3.5 | 3.5 |
| Power Factor | 1.0 | 1.0 |
| AC Output Voltage (V) | 220-240; 110/230 | 110-120; 220-240; 110-120/ 220-240 |
| Noise Level LwA (7M) dB (A) | 74 | |
| Fuel type | 90# Petrol | |
| Fuel Tank Capacity (L) | 10 | |
| Continuous Work (h) | 7 | 7 |
| Net Weight/ Gross Weight (kg) | 31.5/33.5 | 31.5/33.5 |
| Dimension (L x W x H) (mm) | 490X390X455 | |
| 20ft Container Qty | 224 | |
| 40ft/HQ Container Qty | 480/600 | |
| Engine | UP170 | |
| Engine Type | Single-Cylinder, 4-Stroke, Air-cooled; OHV Gasoline Engine | |
| Displacement Capacity (cc) | 208 | |
| Max. Output (HP/ rpm) | 7.0 / 3600 | |
| Lubrication Oil | SAE10W/ 30 | |
| Lubrication Oil Volume (L) | 0.6 | |
| Starting System | Recoil | |
| Spark Plug | F6TC | |
| Certificate | CE EU-V | |

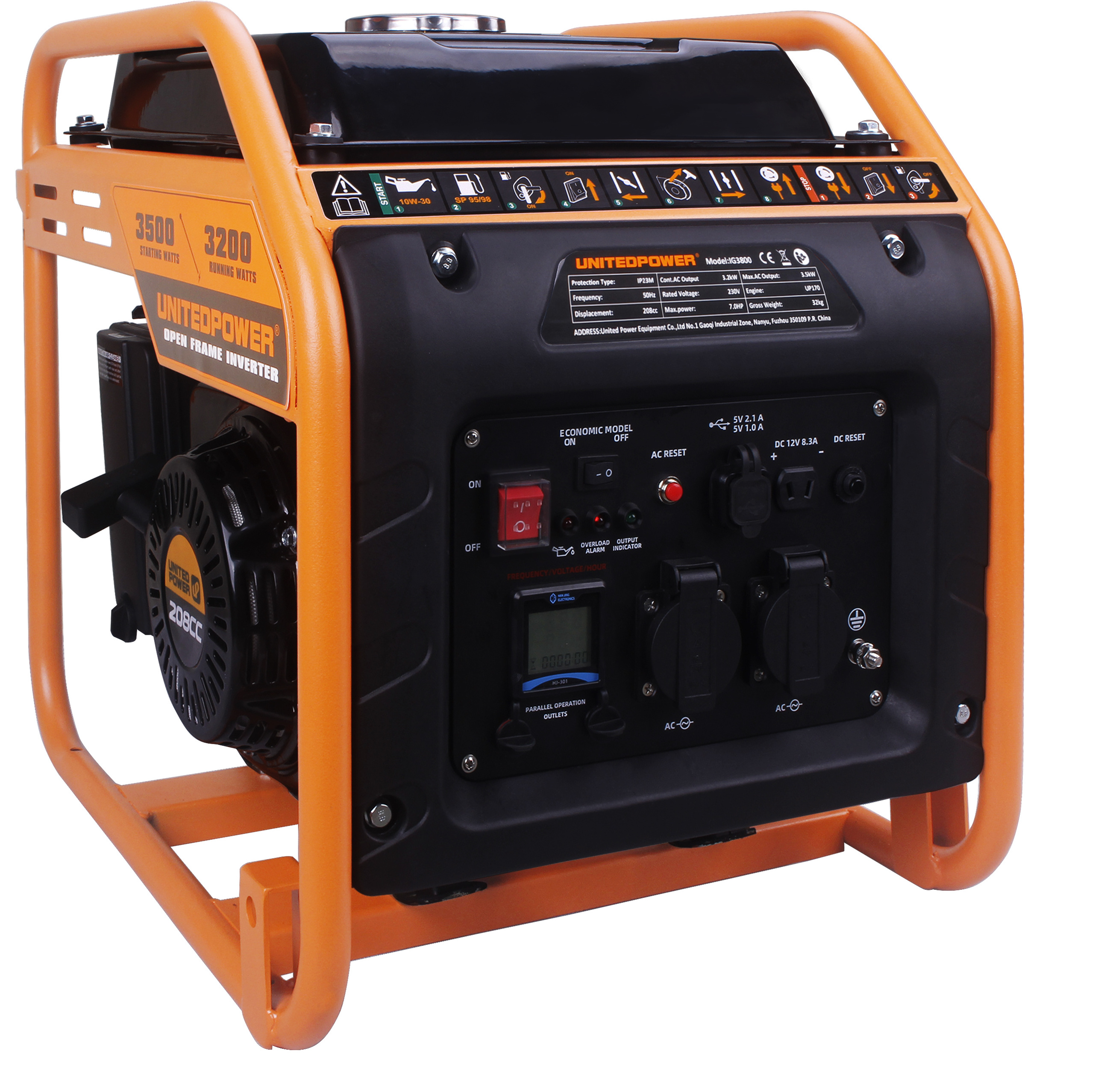

Picture details
Product Dimension
