Products Description

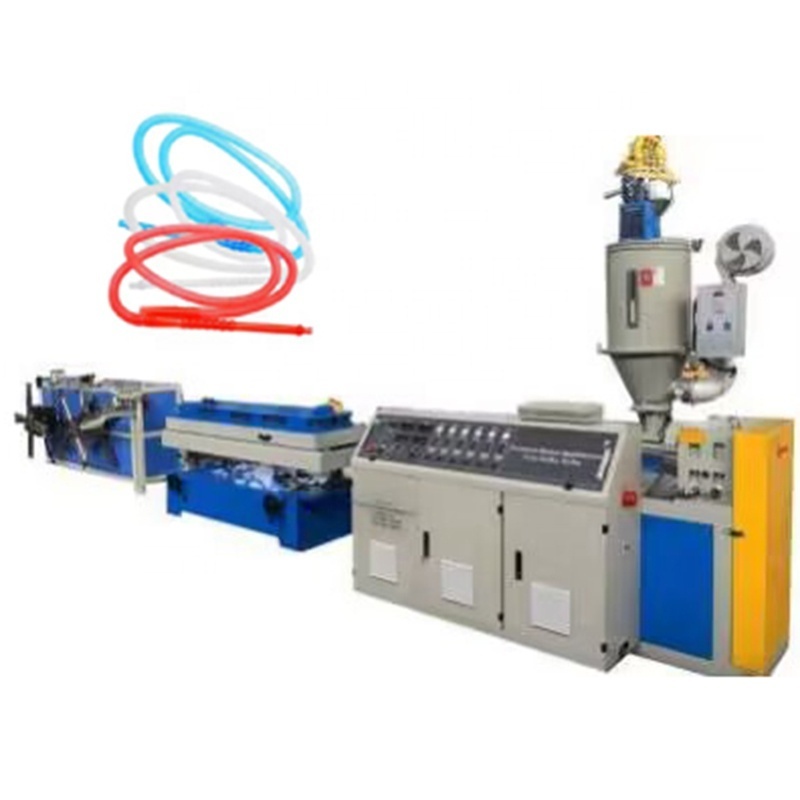

Plastic PP PE EVA Single Wall Corrugated Pipe Shisha Hookah Conduit Hose Pipe Extrusion Making Machine
Key Words:
1.Corrugated Pipe Making Machine
2.
Corrugated Pipe Machine
3.Plastic Corrugated Pipe Machine
1. plastic single wall corrugated pipe machine can produce PP PE PA PVC EAV corrugated pipe which is widely used as wire harness protective pipe for car and machine tool2. equip with vacuum pump, the machine can produce washing machine pipe, air conditioner pipe, hookah pipe, wash basin drain pipe,medical pipe
3.mold transmission by gear
4. water cooling, wind cooling
Final Product & Application
Equipment List
Fully Automatic Small Diameter Disposable Plastic Pe Shisha Hose Corrugated Pipe Making Extruder Machine
High speed single wall corrugated pipe making machinery for electrical wire conduit pipe tube
Zhongsu plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling air of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.
Raw material+additive→mixing → single screw extruder → mould → forming machine →winder → finished product inspecting &packing
High speed single wall corrugated pipe making machinery for electrical wire conduit pipe tube
Zhongsu plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling air of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.
Production Process
Specification
1)ZS SJ single screw extruder
1. product material: PP PE PA EVA PVC garanule
2. extruder model: SJ45 SJ50 SJ65 SJ753. motor power: 11-37kw
4. motor brand: SIEMENS
5. inverter brand: ABB
6. temperature controller brand: OMRON
7. heater material: cast aluminum
8. vacuum loading device: included
9. hopper dryer: include
2. extruder model: SJ45 SJ50 SJ65 SJ753. motor power: 11-37kw
4. motor brand: SIEMENS
5. inverter brand: ABB
6. temperature controller brand: OMRON
7. heater material: cast aluminum
8. vacuum loading device: included
9. hopper dryer: include
Die Head With New Design
New designed energy saving heater ring can save 30% electricity.
vacuum forming machine
1. forming type: vacuum
2. cooling type: water and wind
3. fan quantity: 4 sets or 6 sets or 8 sets
4. lubricant: oil
5. transmission: gear
6. application: washing machine pipe, wash basin pipe, air conditioner pipe, hookah pipe, medical pipe
3. fan quantity: 4 sets or 6 sets or 8 sets
4. lubricant: oil
5. transmission: gear
6. application: washing machine pipe, wash basin pipe, air conditioner pipe, hookah pipe, medical pipe
Advantage ：
High surface hardness, wear resistance, fatigue strength, heat resistance and corrosion resistance. Utilizing nitriding technology and high diamensional precision after treatment. The service life is double than 45#steel .
Modules
The inner wall of the molding module is corrugated with wave crest and trough along the axial direction, the outer wall of the molding module is provided with a cooling water chamber, the interior of the molding module is provided with a vacuum chamber, and the arc top of the outer wall of the molding module forms a base
vacuum corrugated pipe mould
there shall be have vacuum mold optional according to product shape such as shisha pipe, air conditioner pipe...
1. mould quantity: 52 or 72 pairs or customerized
2. cavity: single/double/three cacity or customerized
3. mould making: our own Germany CNC machine
4. mould material: 40Cr
3. mould making: our own Germany CNC machine
4. mould material: 40Cr
double working position winder
winding station: double station
winding method: automatic winding 50m/roll,100m/roll
winding method: automatic winding 50m/roll,100m/roll
|
Model
|
ZS 14
|
ZS32
|
ZS50
|
zs63
|
ZS110
|
|
Pipe Diameter
|
5-14mm
|
10-32mm
|
16-50mm
|
16-63mm
|
32-110mm
|
|
extruder model
|
SJ-45
|
SJ-50
|
SJ-65
|
SJ-65
|
SJ-75
|
|
Motor power
|
11kw
|
15kw
|
30kw
|
30kw
|
37kw
|
|
production speed
|
6-8m/min
|
5-12m/min
|
3-10m/min
|
3-10m/min
|
3-6m/min
|
|
mold pairs
|
42
|
50
|
50
|
50
|
72
|
|
optional vacumm pump
|
1.5kw
|
2.2kw
|
2.2kw
|
2.2kw
|
5.5kw
|
