Quick Details
-
Brand Name:
-
Ammete
-
Model Number:
-
LXSG
-
Product name:
-

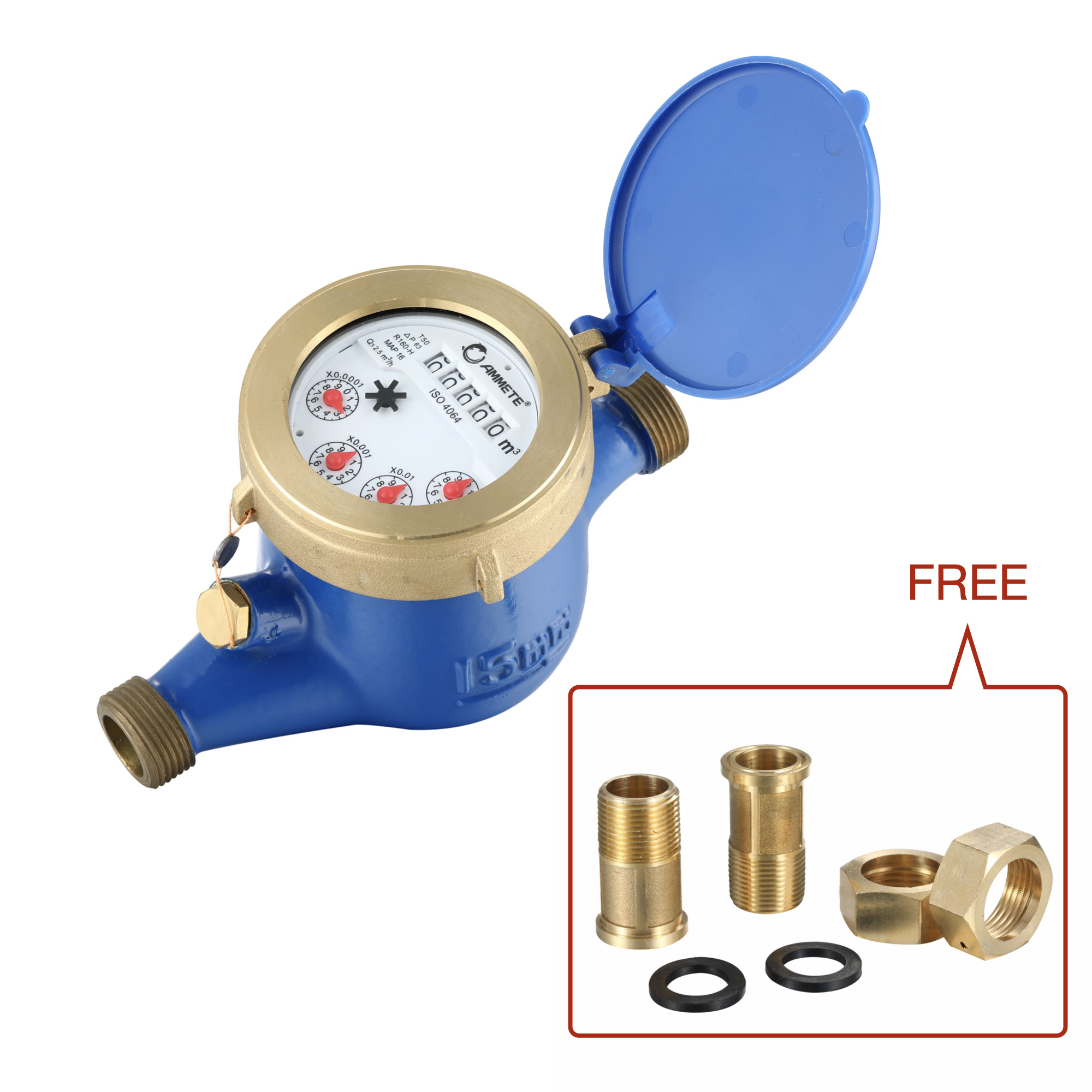

Vane Wheel Water Meter
-
Nominal Diameter:
-
DN15mm~40mm
-
Keyword:
-
Multijet Water Meter
-
Application:
-
Household
-
Register Sealed Type:
-
Dry type
-
Working temperature:
-
Hot Type<90
-
Communication mode:
-
RS485/ M-BUS
-
Body material:
-
Brass/plastic/iron/stainless steel
-
Accuracy:
-
R80/R100/R125/R160
-
Packing:
-
Cartons Box
Quick Details
-
Warranty:
-
1 year
-
Type:
-
Multi-jet meters
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ammete
-
Model Number:
-
LXSG
-
Product name:
-
Vane Wheel Water Meter
-
Nominal Diameter:
-
DN15mm~40mm
-
Keyword:
-
Multijet Water Meter
-
Application:
-
Household
-
Register Sealed Type:
-
Dry type
-
Working temperature:
-
Hot Type<90
-
Communication mode:
-
RS485/ M-BUS
-
Body material:
-
Brass/plastic/iron/stainless steel
-
Accuracy:
-
R80/R100/R125/R160
-
Packing:
-
Cartons Box
Products Description
Manufacturing Technique
* Data based on Brass body
|
Type
|
Nominal Size （mm)
|
Size (inch)
|
Length
|
Width
|
Height
|
Connecting Thread D
|
|
LXSY-15
|
15
|
1/2″
|
165
|
95
|
115
|
G¾B
|
|
LXSY-20
|
20
|
3/4″
|
195
|
95
|
115
|
G1 B
|
|
LXSY-25
|
25
|
1″
|
225
|
100
|
120
|
G1¼B
|
|
LXSY-40
|
40
|
1-1/2″
|
245
|
120
|
160
|
G2 B
|
|
LXSY-50
|
50
|
2″
|
280
|
130
|
190
|
Flange Connection
|
Product Paramenters
Working Condition:
Water temperature≤50℃ (Hot water meter≤90℃)
Water pressure≤1MPa Or 1.6
MPa△P≤63
Accuracy:
From minimum flow-rate(Q1) inclusive, to transitional flow -rate(Q2) exclusive:±5%
From transitional flow- rate(Q2)
inclusive, to overload flow -rate(Q4) exclusive:±2%
Hot water meter ±3%
