Quick Details
-
Brand Name:
-
KEXINT
-
Use:
-
FTTX
-
Warranty Time:
-
5 YEARS
-
Length:
-
1m/1.5m
-
Type of fiber:
-
G657A1
-
Operating Wavelength (nm):
-
1310/1490/1550
-
Cable Type:
-
0.9mm or Required
-
Material:
-
PVC LSZH
-
Connector Type:
-
Without Connector
-
Certification:
-
CE/ROHS/ISO9001
-
Operating temperature:
-
-40℃~85℃
Quick Details
-
Type:
-
Fiber Optical PLC Splitter
-
Model Number:
-
no connector mini PLC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KEXINT
-
Use:
-
FTTX
-
Warranty Time:
-
5 YEARS
-
Length:
-
1m/1.5m
-
Type of fiber:
-
G657A1
-
Operating Wavelength (nm):
-
1310/1490/1550
-
Cable Type:
-
0.9mm or Required
-
Material:
-
PVC LSZH
-
Connector Type:
-
Without Connector
-
Certification:
-
CE/ROHS/ISO9001
-
Operating temperature:
-
-40℃~85℃
Product Description

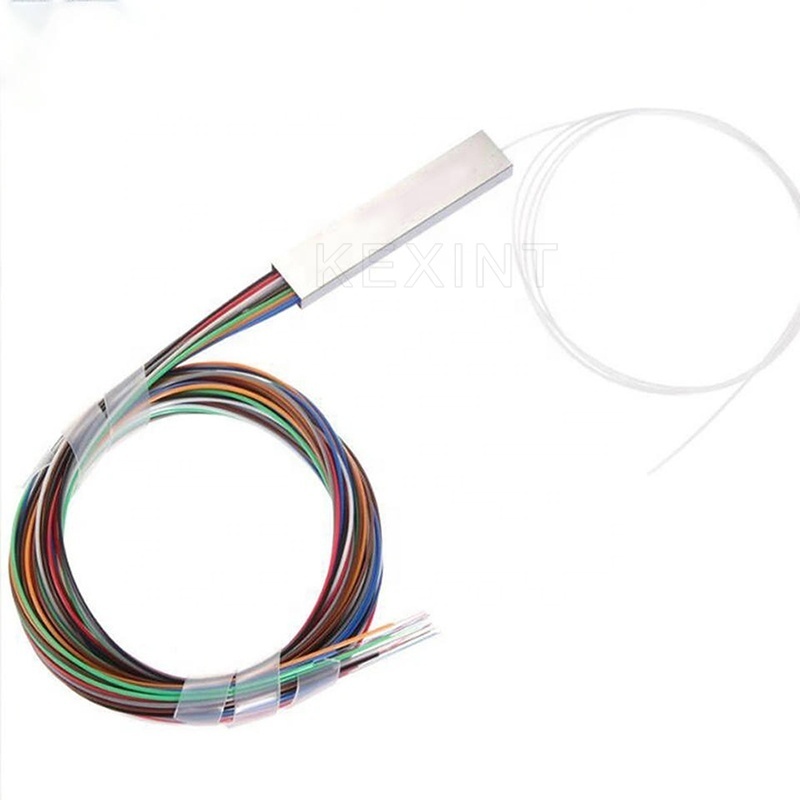

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Features：
l Low Insertion loss
l Low PDL
l Compact Design
l Good channel-to-channel uniformity
l Wide Operating Wavelength: From 1260nm to 1650nm
1×N PLC Splitter
l Wide Operating Temperature: From -40℃ to 85℃
l High Reliability and Stability
Applications：
l FTTX Systems
l PON Networks
l CATV Links
l Optical Signal Distribution
Compliance：
l Telcordia GR-1209-CORE
l Telcordia GR-1221-CORE
l RoHS
Specification
|
Parameters
|
1×2
|
1×4
|
1×8
|
1×16
|
1×32
|
1×64
|
|||||
|
Operating Wavelength (nm)
|
1260~1650
|
|
|
|
|
|
|||||
|
Fiber Type
|
SMF-28e or customer specified
|
|
|
|
|
|
|||||
|
Insertion Loss (dB)(S/P Grade)
|
4.0/3.8
|
7.3/7.0
|
10.5/10.2
|
13.7/13.5
|
16.9/16.5
|
21.0/20.5
|
|||||
|
Loss Uniformity (dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2.5
|
|||||
|
Return Loss (dB) (S/P Grade)
|
50/55
|
50/55
|
50/55
|
50/55
|
50/55
|
50/55
|
|||||
|
Polarization Dependent Loss(dB)
|
0.2
|
0.2
|
0.3
|
0.3
|
0.3
|
0.4
|
|||||
|
Directivity (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
|||||
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
|||||
|
Temperature Stability(-40~85 °C)(dB)
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
|||||
|
Operating Temperature (°C)
|
-40~85
|
|
|
|
|
|
|||||
|
Storage Temperature (°C)
|
-40~85
|
|
|
|
|
|
|||||
|
item
|
value
|
|
Model Number
|
no connector mini PLC
|
|
Type
|
Fiber Optical PLC Splitter
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
KEXINT
|
|
Use
|
FTTX
|
|
Warranty Time
|
5 YEARS
|
|
Network
|
None
|
|
Length
|
1m/1.5m
|
|
Type of fiber
|
G657A1
|
|
Operating Wavelength (nm)
|
1310/1490/1550
|
|
Cable Type
|
0.9mm or Required
|
|
Material
|
PVC LSZH
|
|
Connector Type
|
Without Connector
|
|
Certification
|
CE/ROHS/ISO9001
|
|
Operating temperature
|
-40℃~85℃
|
