Quick Details
-
Warranty(Year):
-
1-Year
-
Product Weight（kg）:
-
10.5
-
Lamp Luminous Flux(lm):
-
1800
-
CRI (Ra>):
-
452
-
Working Temperature(℃):
-
-10 - 45
-
Working Lifetime(Hour):
-
10000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KNIGHT
-
Emitting Color:
-
RGBW
-
Product name:
-
PUB-8 10W RGB
-
Laser power:
-
10w[R:3w 638nm;G:3w 532nm; B:4w 445nm]
-
Cooling method:
-
by air cooling
-
Laser divergence angle:
-
<1.2mrad (full angle)
-
Laser spot size:
-
5*6.2mm at the light outlet
-
Scanning angle:
-
up to 60°
-
Laser class:
-
Class IV
-
effects:
-
built-in more than 200 effects
-
Rated power:
-
100W
-
size:
-
32*29*20/31cm
Quick Details
-
Color Temperature(CCT):
-
2700K (Soft Warm White)
-
Type:
-
LASER LIGHTS
-
Application:
-
Stage,DJ,Event Disco,Clubs, Bar, ect
-
Warranty(Year):
-
1-Year
-
Product Weight（kg）:
-
10.5
-
Lamp Luminous Flux(lm):
-
1800
-
CRI (Ra>):
-
452
-
Working Temperature(℃):
-
-10 - 45
-
Working Lifetime(Hour):
-
10000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KNIGHT
-
Emitting Color:
-
RGBW
-
Product name:
-
PUB-8 10W RGB
-
Laser power:
-
10w[R:3w 638nm;G:3w 532nm; B:4w 445nm]
-
Cooling method:
-
by air cooling
-
Laser divergence angle:
-
<1.2mrad (full angle)
-
Laser spot size:
-
5*6.2mm at the light outlet
-
Scanning angle:
-
up to 60°
-
Laser class:
-
Class IV
-
effects:
-
built-in more than 200 effects
-
Rated power:
-
100W
-
size:
-
32*29*20/31cm
Products Description
|

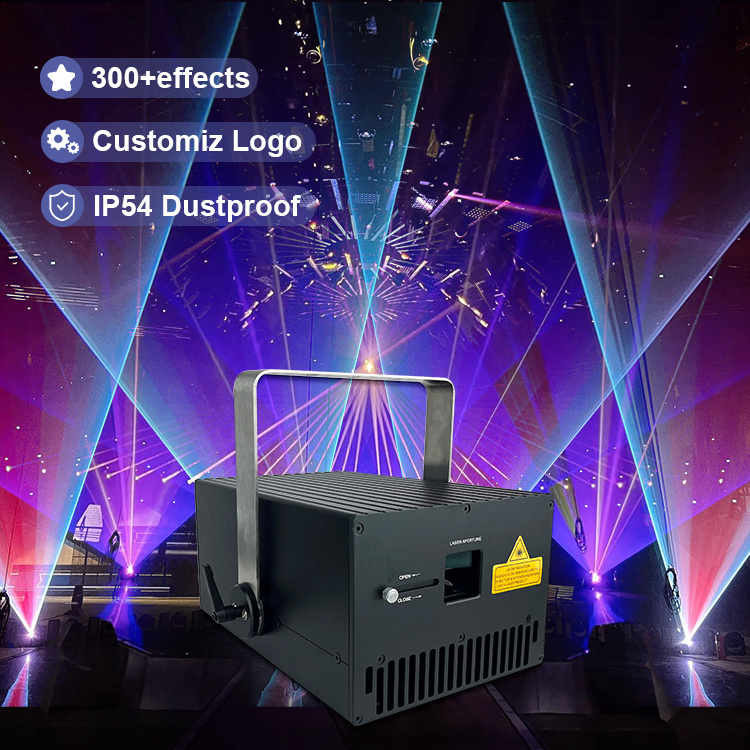

PUB8-10W RGB Laser Light Specification
|
|
|
|
|
||||
|
Laser Life
|
10,000 hours
|
|
|
|
||||
|
Laser Power
|
10W [Red: 3W 638nm; Green: 3W 520nm; Blue: 4W 445nm]
|
|
|
|
||||
|
Scanner
|
AT40M 30/40kpps
|
|
|
|
||||
|
Laser diode type
|
TTL/analog modulation
|
|
|
|
||||
|
Scanning angle
|
up to 60°
|
|
|
|
||||
|
Control mode
|
SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels (with RDM), master/slave mode, ILDA,software control
|
|
|
|
||||
|
Built-in effects
|
up to 1000 kinds, including animation, lines, beams, etc.
|
|
|
|
||||
|
Working temperature
|
-10C-45°C
|
|
|
|
||||
|
Voltage
|
100-250V
|
|
|
|
||||
|
Rated power
|
250W
|
|
|
|
||||
|
Application
|
stage, DJ, event disco, club, bar, etc.
|
|
|
|
||||
|
Product Size
|
21*34*16.5cm/27cm (L*W*H) Net Weight: 10kgs
|
|
|
|
||||
|
Product features
|
The case adopts a three-layer design scheme, and the first layer of the optical layer is completely sealed. During use, dust and
smoke oil can be prevented from entering the case, so as to extend the life and brightness of the laser. The heat dissipation layer is on the 2nd layer, and the integral heat sink is combined with the laser light source, the heat dissipation surface reaches 100%, and the service life of the laser is prolonged. The power supply and the driver are on the 3rd floor and are also completely sealed. |
|
|
|
||||
