Quick Details
-
Filling Accuracy:
-
0.5%-1%
-
Voltage:
-
110v-220v,50/60Hz
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
The One Packaging
-
Dimension(L*W*H):
-
680*630*330mm
-
Weight:
-
48 KG
-
Model:
-
TODF-200
-
Volume:
-
2ml-infinity
-
Filling nozzle:
-
Double head
-
Supply power:
-
1P 110V/220V; 50-60HZ,1400W
-
Gear pump material:
-
High quality 316L stainless steel
-
Motor:
-
Servo motor
-
PLC:
-
PANASONIC brand
-
Touch screen:
-
WEINVIEW brand
-
Suitable product:
-
Any liquid and low viscosity products
-
Two kinds of filling speed:
-
Yes, prevent the bubbles effectively.
Quick Details
-
Machinery Capacity:
-
100ml 2400BPH
-
Packaging Material:
-
Glass, Metal, Plastic
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Filling Accuracy:
-
0.5%-1%
-
Voltage:
-
110v-220v,50/60Hz
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
The One Packaging
-
Dimension(L*W*H):
-
680*630*330mm
-
Weight:
-
48 KG
-
Model:
-
TODF-200
-
Volume:
-
2ml-infinity
-
Filling nozzle:
-
Double head
-
Supply power:
-
1P 110V/220V; 50-60HZ,1400W
-
Gear pump material:
-
High quality 316L stainless steel
-
Motor:
-
Servo motor
-
PLC:
-
PANASONIC brand
-
Touch screen:
-
WEINVIEW brand
-
Suitable product:
-
Any liquid and low viscosity products
-
Two kinds of filling speed:
-
Yes, prevent the bubbles effectively.
Product Description
Product Name:

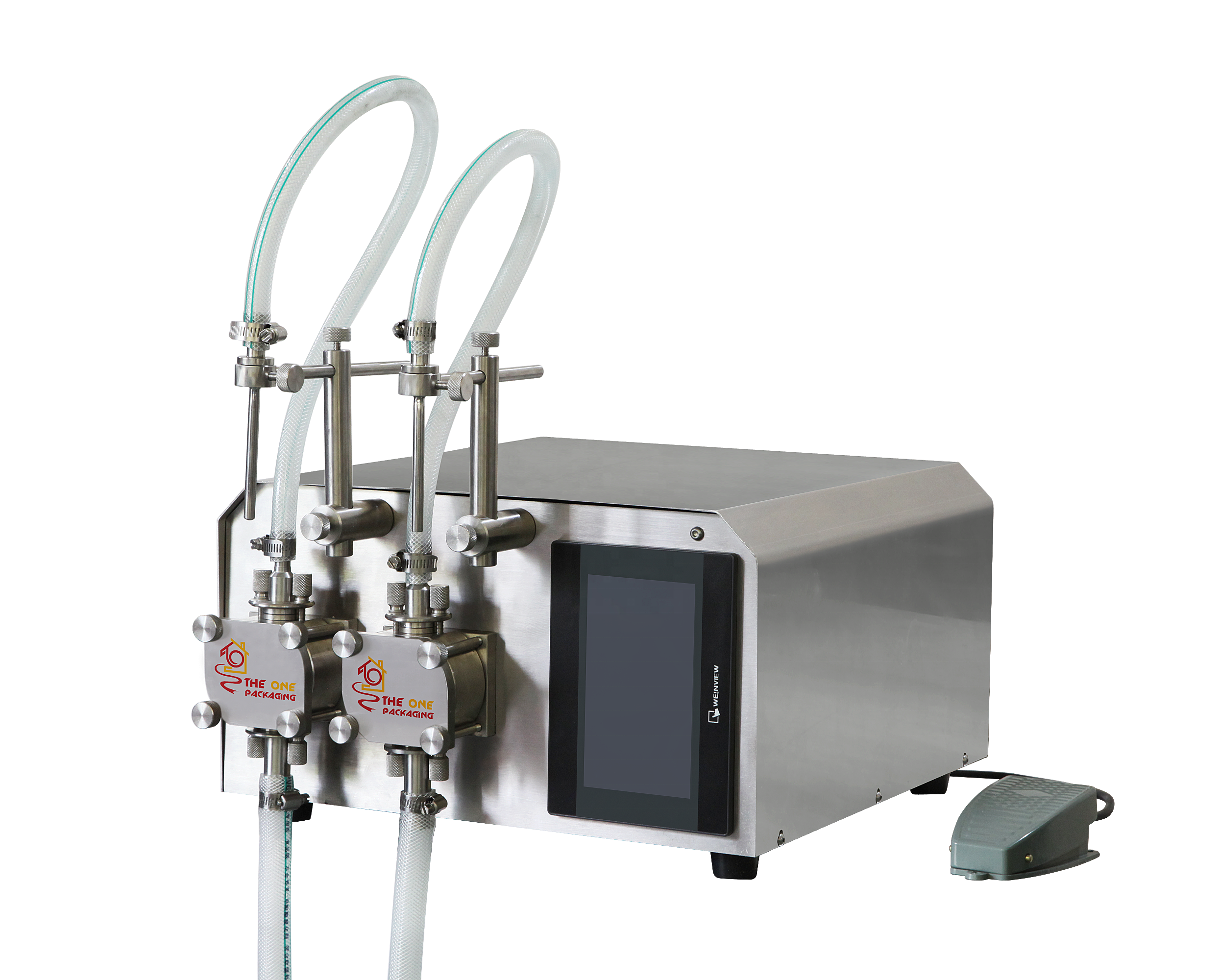

TODF-200 Manual Double Heads Semi-Automatic Shampoo Liquid Soap Detergent Filling Machine
-This machine adopts servo motor drive,PLC and touch screen control, 316L high precision gear pump filling principle, suitable for daily chemical, food, grease and other kinds of fluid and semi fluid material filling.
-Filling volume through the touch screen adjustment, filling volume is infinite, easy to dismantle the pump head & easy to
clean, very suitable for the user who has many kinds of products, need to regulate the filling scope all the time.
-High filling accuracy can achieve less than 0.5ml accuracy.
-Can set two-speed filling(first faster and last slower), effectively prevent the bubble.
-Through the touch screen one key to realize the gear pump operation direction Switching, can choose the pneumatic drip filling nozzle and hopper, ensuring high and low viscosity materials filling.
-Humanized Dynamic interface, the user at a glance at the machine running state.
-The machine also can be used as table-top model with foot pedal, can also be matched with automatic capping machine and labeling machine in line.
- Gear Pump (TWO units)
-Filling volume through the touch screen adjustment, filling volume is infinite, easy to dismantle the pump head & easy to
clean, very suitable for the user who has many kinds of products, need to regulate the filling scope all the time.
-High filling accuracy can achieve less than 0.5ml accuracy.
-Can set two-speed filling(first faster and last slower), effectively prevent the bubble.
-Through the touch screen one key to realize the gear pump operation direction Switching, can choose the pneumatic drip filling nozzle and hopper, ensuring high and low viscosity materials filling.
-Humanized Dynamic interface, the user at a glance at the machine running state.
-The machine also can be used as table-top model with foot pedal, can also be matched with automatic capping machine and labeling machine in line.
- Gear Pump (TWO units)
Product Paramenters
|
Model
|
TODF-200
|
|
Filling Range
|
2ml-infinity
|
|
Filling Accuracy
|
0.5%-1%
|
|
Filling Nozzle
|
Two Nozzles
|
|
Filling Speed (water as reference)
|
100ml 40 b/min;
300ml 30 b/min; 1000ml 18 b/min |
|
Supply Power
|
1P 110V/220V;
50-60HZ,1400W |
|
Size with Box(LxWxH)
|
68x63x33cm
|
|
Gross Weight
|
48kgs
|
