Quick Details
-
Drilling Speed:
-
300~2550/360~3060rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
ZJQ4116
-
Voltage:
-
customer requested
-
Dimension(L*W*H):
-
770*450*260mm
-
Power (kW):
-
0.55
-
Weight (KG):
-
36 KG
-
Max Drilling Diameter:
-
16mm(5/8'')
-
Motor Power:
-
375/450/550w
-
Chuck Capacity:
-
3-16mm
-
Spindle Travel:
-
60mm
-
Class Of Speed:
-
12
-
Height:
-
950mm
-
Spindle Taper:
-
MT2
-
Swing:
-
310mm
-
Table Size:
-
200*200mm
-
Base Size:
-
420*250mmm
-
Certification:
-
CE ISO
Quick Details
-
type:
-
Bench Drilling Machine
-
Max. Drilling Dia. (mm):
-
16 mm
-
Range of Spindle Speed(r.p.m):
-
360 - 3060 r.p.m
-
Drilling Speed:
-
300~2550/360~3060rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
ZJQ4116
-
Voltage:
-
customer requested
-
Dimension(L*W*H):
-
770*450*260mm
-
Power (kW):
-
0.55
-
Weight (KG):
-
36 KG
-
Max Drilling Diameter:
-
16mm(5/8'')
-
Motor Power:
-
375/450/550w
-
Chuck Capacity:
-
3-16mm
-
Spindle Travel:
-
60mm
-
Class Of Speed:
-
12
-
Height:
-
950mm
-
Spindle Taper:
-
MT2
-
Swing:
-
310mm
-
Table Size:
-
200*200mm
-
Base Size:
-
420*250mmm
-
Certification:
-
CE ISO
Product Description

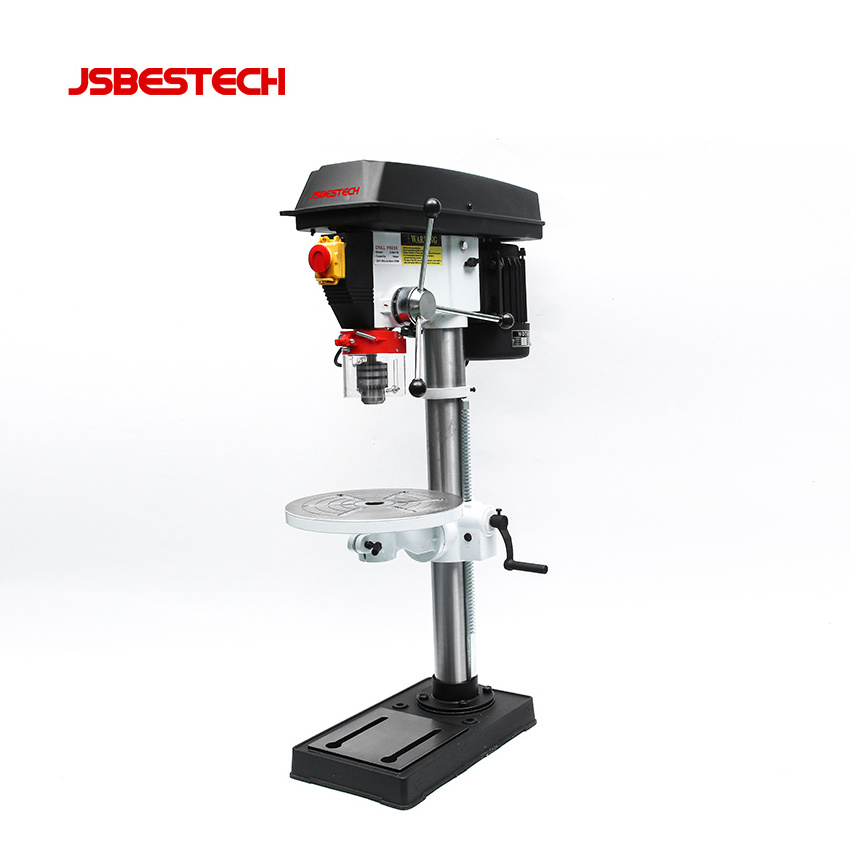

ZJQ4116B 450W high speed small bench pillar drill press machine
|
Model
|
ZJQ4116B
|
|
Max Drilling Diameter
|
Φ16mm(5/8'')
|
|
Motor Power
|
375/450/550w
|
|
Chuck Capacity
|
3-16mm
|
|
Spindle Travel
|
60mm
|
|
Class Of Speed
|
12
|
|
Speed50/60Hz
|
300~2550/360~3060rpm
|
|
Spindle Taper
|
MT2
|
|
Max distance from spindle axis to surface of column
|
155mm
|
|
Max distance from spindle end to surface of table
|
490mm
|
|
Max distance from spindle end to surface of base
|
610mm
|
|
Swing
|
310mm
|
|
Table Size
|
200×200mm
|
|
Base Size
|
420×250mm
|
|
Column Diameter
|
Φ58mm
|
|
Height
|
950mm
|
|
Net Weight/ Gross Weight
|
34/36kg
|
|
Packing Size
|
770×450×260mm
|
|
Standard Accessories
|
Optional Accessories
|
|
Gear rim drill chuck(3-16mm)
|
Keyless drill chuck
|
|
Morse taper MT2
|
Drill chuck guard
|
|
Wrench set
|
Machine vice
|
|
Drill Chuck
|
Front switch
|
|
|
Micro switch
|
|
|
Laser
|
|
|
Laser
|
Product packaging
Similar products
Company Profie
BESTECH Industrial Co., Ltd. is one of the professional enterprises in China in the field of machinery and tools. The main products include Bench Lathes(manual &CNC),Drill Press, Bench Grinder, Drilling and Milling Machine, Table Saw, Band Saw,etc. Most of the items have been approved by CE,GS& ROHS certificates.
Covering an area of 4000 square meters, our factory now has over 100 employees, including 15 QC engineers and technicians. We are
in Jiangsu Province,very near from Shanghai.We may arrange your visit to our factory at your wish onced informed.We are looking forward to friends and new clients.
Certifications
Customer Photos
FAQ
1: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
2: What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
4: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Bench Lathes (manual and CNC), Drilling MIlling Machine, Drill Press, Bench Grinder, Table Saw and Band Saw,etc.
5: Where is our factory located? How can I visit there?
A : Our factory is located in Jiangsu Province, China. Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed.
