Quick Details
-
Full throttle RPM range:
-
4500~5500
-
Ignition system:
-
CDI
-
Starting system:
-
Manual
-
Steering system:
-
Tiller control
-
Gear shift:
-
Forward-Neutral-Reverse
-
Gear ratio:
-
2.15 (28/13)
-
Max fuel consumption:
-
2.3 L/h
Quick Details
-
Engine type:
-
4-stroke,1-cylinder, OHV
-
Displacement:
-
148 cc
-
Max. output kw(hp):
-
4.4(6)
-
Full throttle RPM range:
-
4500~5500
-
Ignition system:
-
CDI
-
Starting system:
-
Manual
-
Steering system:
-
Tiller control
-
Gear shift:
-
Forward-Neutral-Reverse
-
Gear ratio:
-
2.15 (28/13)
-
Max fuel consumption:
-
2.3 L/h

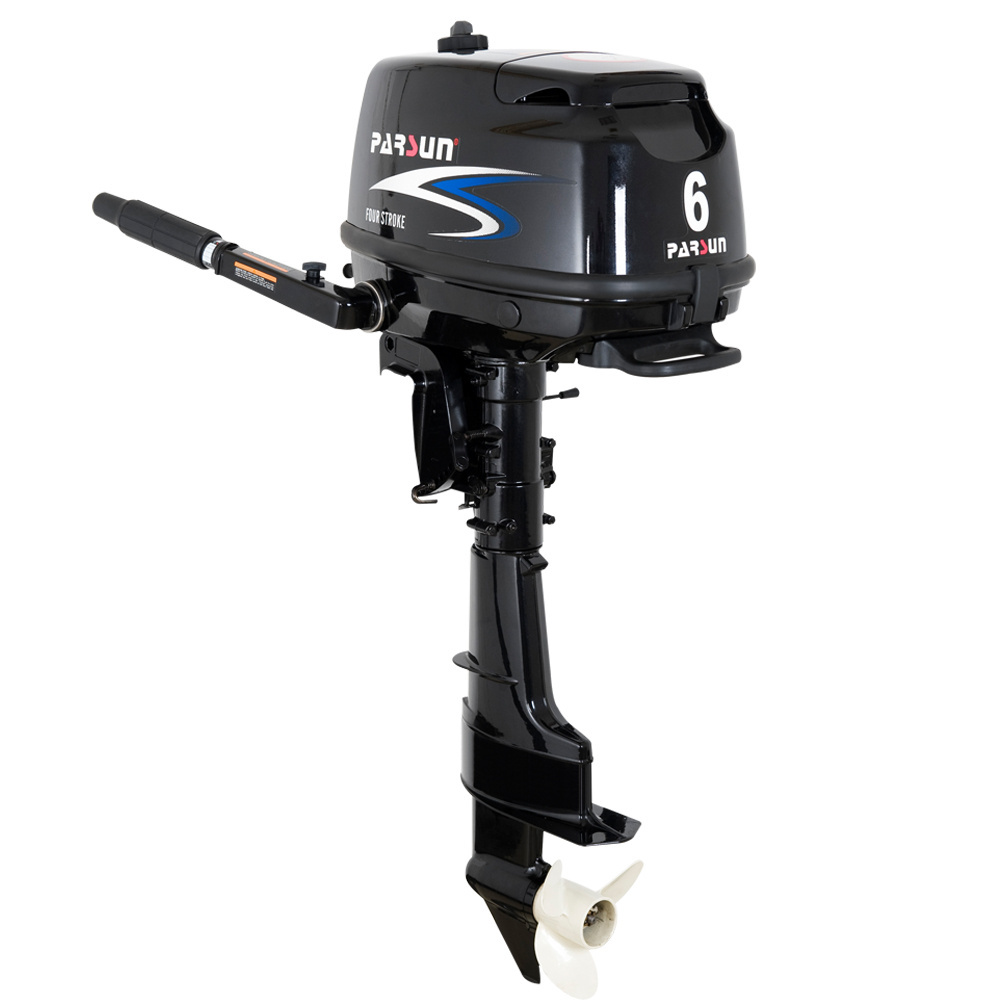

F6ABML PARSUN 6hp 4-stroke boat engine outboard(CE, EPA, ISO approved)
PARSUN F6ABML 6HP 4-STROKE BOAT ENGINE
New lightweight single cylinder PARSUN 6hp 4-stroke four stroke boat engine with a manual starter and tiller handle. Enhanced features include a larger shift handle, toggle clamp and throttle grip than in other outboard motors of the same class. Low vibration rubber mounts are fitted between the powerhead and bottom cowling and at the base of the tiller handle, and a balance weight on the tiller handle effectively reduces vibration of the same. Front and back, large easy grip carry handles makes these engines easily transportable and, very importantly, the engine can be stored on either side or on its front without leaking engine oil due to PARSUN's original oil leak prevention system. This means you will no longer have to worry about oil leakage when carrying the engine in the trunk of your car. A wet sump system with oil lubrication pump, as used in higher-end models, provides more reliability in engine lubrication. An auto decompression device fitted to the camshaft makes the manual starter much lighter to pull. A small, auxiliary prime pump is fitted to the fuel pipe before the carburettor in the cowling. By ensuring delivery of fuel to the carburettor, the engine can be started smoothly even after long-term storage. A DC 12 volt-6 amp alternator can be optionally fitted to provide electricity if required.
Auxiliary prime pump
A small auxiliary prime pump is fitted to the fuel pipe before the carburettor in the cowling. By ensuring the delivery of fuel to the carburettor, the engine can be started smoothly even after long-term storage.
Easy to carry
When you want to get out on to the water quickly and easily, portability is important. The 6h boat engine are the ultimate in portable power, with a compact build and large carry handles that can be used by one or two people. Carry them to the water, or lift them on to your main boat as an auxiliary and you're away.
Steering friction and throttle adjustment
You'll find the 6hp 4-stroke outboard engine incredibly easy to control, thanks to the single-lever steering friction adjustment. This allows steering and throttle to be easily adjusted when you're out on the water, and ensures that you have great stability and control, even at high speed.
CDI Ignition System
You want the fun to start as soon as you get on to the water and the outboard engine to purr with the minimum of fuss. ignition systems are 'solid state' components with no moving parts - a design which allows them to deliver the reliable starting and consistent performance for which Yamaha outboards are renowned across the globe.
Built-in fuel tank
To really get out there, you need to know you've got room for all the necessary gear, whether it's an extra box of bait, or an extra cooler of refreshments. To give you more space inside your boat, the F5 all have a built in 1.1-L fuel tank, eliminating the need for an external tank.
You need an engine you can rely on. PARSUN 6hp 4-stroke boat engine are renowned for their durability and how well they hold value. Central to this is the unique aluminium alloy that protects the engine's exterior parts, and a zinc coating, high-quality stainless steel, and 5-stage exterior coating for long-lasting protection inside and out.
3-position oil leak-free storage system, t ransporting your engine to and from the water, the last thing you want to have to deal with is a messy oil leak.unique 3-position oil leak-free storage system offers an easy way to store your engine, whether you're carrying it in a boat, a car, or a trailer.
|
F6ABMS PARSUN 6HP OUTBOARD MOTORS SPECIFICATIONS |
|
|
ITEM |
F6ABML |
|
Engine type |
4-stroke,1-cylinder, OHV |
|
Displacement |
148 cc |
|
Bore x Stroke mm(in.) |
64.0×46.0(2.52×1.8) |
|
Max. output kw(hp) |
4.4(6) |
|
Full throttle RPM range |
4500~5500 |
|
Ignition system |
CDI |
|
Starting system |
Manual |
|
Steering system |
Tiller control |
|
Gear shift |
Forward-Neutral-Reverse |
|
Gear ratio |
2.15 (28/13) |
|
Trim and tilt system |
Manual,4 positions/Shallow drive |
|
Max fuel consumption |
2.3 L/h |
|
Fuel tank capacity |
within 1.3 L |
|
Sump oil capacity |
0.6 L |
|
Gear oil capacity |
100cc |
|
Dry weight |
28kg |
|
Overall width mm(in.) |
390(15.4) |
|
Recommended transom height |
508mm (20in.).) |
|
Alternator output |
12V DC* |
|
Propeller options* |
3-7.8"x9" |
*Propeller choice will vary by boat size and application.
*B=Back control ( Tiller control ), F=Front control ( Remote Control ), M=Manual start ,
W=Electric start+Manual start , S=Short shaft , L=Long shaft
l Are all your products with 4-stroke boat engine?
At present, we have both 2-stroke and 4-stroke outboards in mass production. I.e.4-stroke: 2.6, 4, 5, 6, 8, 9.8, 9.9, 15, 20 and 25hp. 2-stroke:2.5,3.6,4, 5,5.8,6, 8,9.8,9.9,15,20,25,30, 40 ,60,75,85 and 90hp.
l Do you have other types of boat engines?
We also have 5, 7 and 10hp electric outboards.
l When do you have the forward controls with electric start ready for the market?
We have the forward controls with electric start from 9.9hp and above.
l Do you have CE, EPA approval?
Yes, we have both of them.
l Are you the factory or trading company?
We are the manufacturer and exporter.
l How long have you been in this business?
We started to develop outboard engines from 2002 and have started the mass production in the beginning of 2006.
l What's warranty period?
1 year for non-commerce users and 3 months for commerce users.
l Can you supply spare parts?
Yes, as we are the original manufacturer.
l How many hours have your test your outboards?
Over 500 hours for each model.
l Have you tested each piece before delivery?
Yes. At least 1 hour for each pc.
l What is your lead time?
5 to 10 working days in dull season. 3 to 4 weeks in peak season.
l What's your supply capability for outboard engines?
8000pcs per month.
As a Sino-US JV, Parsun Power Machine (Suzhou) Co., Ltd was founded in 2001.With US high-tech partner Motenergy from Wisconsin and Japanese senior engineers and patents, Parsun Power Machine (Suzhou) Co.,Ltd. has been granted high-tech enterprise and Parsun outboards have been granted high-tech products by China government, which is among only a few thousands enterprises in China, including many Fortune 500 companies.
Meanwhile, Parsun has recently stipulated the National Standard of Gasoline Outboards for China government as the single enterprise member.
As a national high-tech enterprise, we are engaged in developing and manufacturing new high-tech products of electric and gasoline and kerosine outboards from 2 up to 90hp, 2 or 4-stroke boat engine.
Parsun technique core team, led by our Chief Engineer, have experience of outboards since 1968 and cooperated with OMC (the original manufacturer of Johnson and Evinrud boat engines, merged by BRP ) to develop critical components for high-power outboard engines in last 90s. Our Japanese partners have been working with top brands of outboards, such as Yamaha and Tohatsu, in Japan or overseas for ages. With such professional background, Parsun, ranking the 2nd next to Mercury in the last five years in a row, has accounted for 50-70% of China exports of outboard engines as per customs statistics, except Mercury (Suzhou) plant
Similar to Mercury Marine, we have invested in Suzhou, China as a cost-effective plan for mass production. The Suzhou region has offered extensive advantages for foreign investments. Therefore, Parsun plans to increase investment and expand production facilities.
Along with fast growing sales in more countries, we have been expanding our current production facilities more than doubling and are going to set up new plants with the first-class equipment and facilities and are moving over in Sept. & Oct.
Meanwhile Parsun was the official supplier of outboard boat engine for World Expo 2010 Shanghai.
Parsun boat engines, with the latest US EPA emissions standards and latest Europe CE standards as well, have been entering most countries in the world, including NGO and US / UK purchase for defense.
